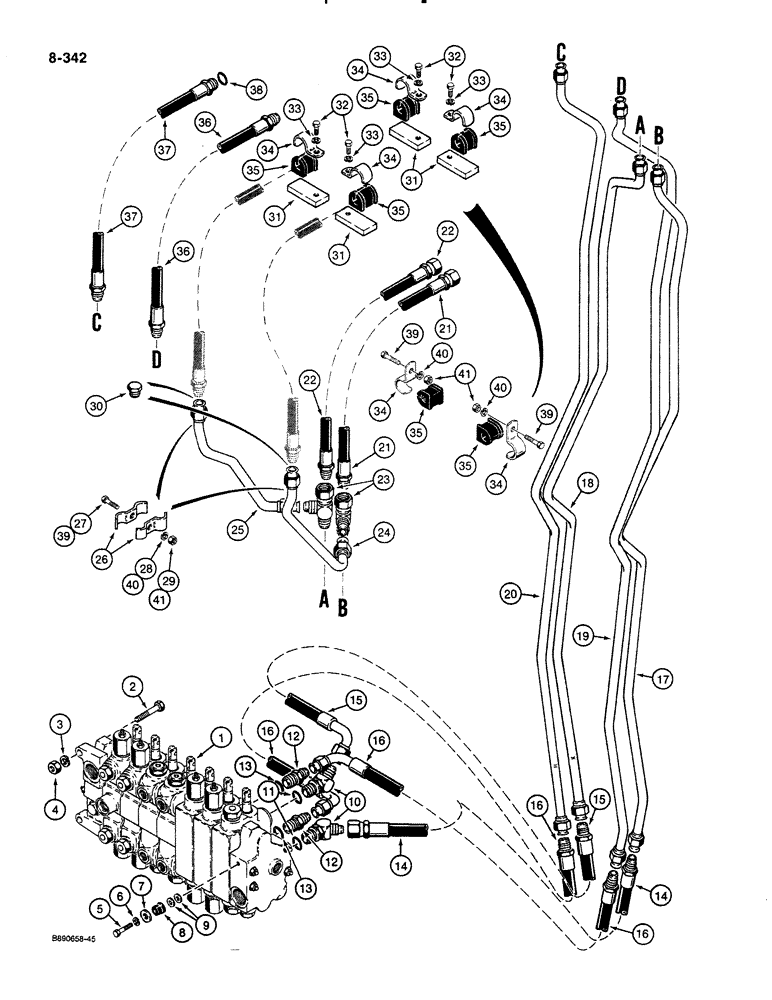

Запчасти Case 580K (08-342) - SPECIAL PARTS USED ON MODELS WITH AUX. HYD. FOR OPTIONAL REAR HYD. ATTACHMENTS W/EXTENDABLE DIPPER (08) - HYDRAULICS

1

G109979

CONTROL VALVE

VALVE ASSEMBLY control, backhoe, 7-spool, see Figure 08-372, used on models with extendable dipper or models with auxiliary hydraulics, for mounting bracket see Figure 08-310 or 08-316

1шт.

2

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

9

195-2030

WASHER,13/32" x 7/8" x .065"

flat, 3/8" bolt size, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, auxiliary section upper and lower ports, Incl. Ref 11 45º, 7/8"-14 x 1 1/16"-12, O-Ring

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

12

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, bucket section upper and lower ports, Includes: Ref.13

2шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

14

D140130

HOSE,15.88mm ID x 1350mm L

53-5/32" (1350 mm) long, auxiliary section lower port to boom auxiliary right hand tube

1шт.

15

D140117

HOSE,15.88mm ID x 1900mm L

74-13/16" (1900 mm) long, auxiliary section upper port to boom auxiliary left hand tube

1шт.

16

D140152

HOSE,15.88mm ID x 1525mm L

60-1/16" (1525 mm) long, bucket section upper and lower ports

2шт.

P/N D140152 is the replacement for K D127688 and P/N D127689 in the model 580K, 8-3461 catalog.

1шт.

17

D140318

PIPE

TUBE right-hand side of boom to rear attachment hose

1шт.

18

D140320

PIPE CLAMP

TUBE left-hand side of boom to rear attachment hose

1шт.

19

D138057

TUBE

right-hand side of boom to bucket cylinder rod end hose

1шт.

20

D138059

TUBE

left-hand side of boom to bucket cylinder closed end hose

1шт.

21

D140193

HOSE,12.7mm ID x 850mm L

33-15/32" (850 mm) long, to extendable dipper cylinder rod end tube

1шт.

22

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

27-9/16" (700 mm) long, to extendable dipper cylinder closed end

1шт.

23

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adjustable 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

24

D140322

PIPE

TUBE right-hand side of boom, for connecting optional rear attachment hose

1шт.

Connecting hoses at these tubes shall be supplied by the customer for use with their particular optional rear hydraulic attachment

1шт.

25

D140324

PIPE

TUBE left-hand side of boom, for connecting optional rear attachment hose

1шт.

Connecting hoses at these tubes shall be supplied by the customer for use with their particular optional rear hydraulic attachment

1шт.

26

D127681

CLAMP

tubes

4шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used with 2 piece outer extendable dipper member Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used with 2 piece outer extendable dipper member 3/8"

2шт.

30

218-777

PLUG,1 1/16"-12, 37 Degree

hex head, tube, not required when rear attachment hoses are installed

2шт.

31

D68529

BLOCK

tapped, for mounting rear attachment hoses to extendable dipper frame, used with two piece outer extendable dipper member

4шт.

32

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Used with two piece outer extendable dipper member Hex, 3/8"-16 x 5/8", G5, Full Thd

4шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used with 2 piece outer extendable dipper member 3/8"

4шт.

34

D68846

CLAMP

hose

4шт.

35

D67297

BLOCK

INSULATOR, 1"

4шт.

36

D137799

HOSE

76" (1930 mm) long, to bucket cylinder rod end tube

1шт.

37

D137800

HOSE

74-13/16" (1900 mm) long, to closed end of bucket cylinder, Includes: Ref. 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Hose

1шт.

40

492-11038

LOCK WASHER,3/8"

used with one piece outer extendable dipper member 3/8"

6шт.

41

425-106

NUT,3/8"-16, Cl 5

Used with one piece outer extendable dipper member 3/8"-16, G5

6шт.
