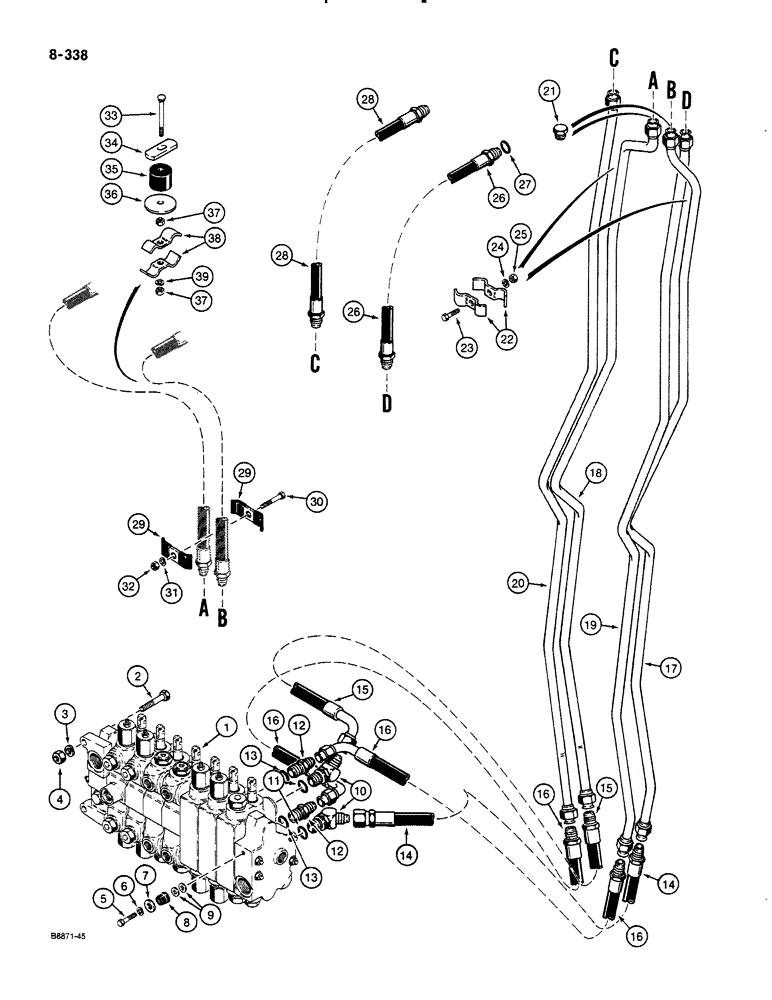

Запчасти Case 580K (08-338) - SPECIAL PARTS USED ON MODELS W/AUX. HYD. FOR OPTIONAL REAR HYD. ATTACHMENTS W/O EXTENDABLE DIPPER (08) - HYDRAULICS

1

G109979

CONTROL VALVE

VALVE ASSEMBLY control, backhoe, 7-spool, see Figure 08-372, used on models with extendable dipper or models with auxiliary hydraulics, for mounting bracket see Figure 08-310 or 08-316

1шт.

2

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

9

195-2030

WASHER,13/32" x 7/8" x .065"

flat, 3/8" bolt size, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, auxiliary section upper and lower ports, Incl. Ref 11 45º, 7/8"-14 x 1 1/16"-12, O-Ring

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

12

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, bucket section upper and lower ports, Includes: Ref. 13

2шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

14

D140130

HOSE,15.88mm ID x 1350mm L

53-5/32" (1350 mm) long, auxiliary section lower port to boom auxiliary right hand tube

1шт.

15

D140117

HOSE,15.88mm ID x 1900mm L

74-13/16" (1900 mm) long, auxiliary section upper port to boom auxiliary left hand tube

1шт.

16

D140152

HOSE,15.88mm ID x 1525mm L

60-1/16" (1525 mm) long, bucket section upper and lower ports

2шт.

P/N D140152 is the replacement for P/N D127688 and P/N D127689

1шт.

17

D140055

TUBE

right-hand side of boom to rear attachment hose

1шт.

Connecting hoses at dipper shall be supplied by the customer for use with their particular optional rear hydraulic attachment

1шт.

18

D140053

TUBE

left-hand side of boom to rear attachment hose

1шт.

Connecting hoses at dipper shall be supplied by the customer for use with their particular optional rear hydraulic attachment

1шт.

19

D140156

TUBE

right-hand side of boom to bucket cylinder closed end hose

1шт.

20

D140154

TUBE

left-hand side of boom to bucket cylinder rod end hose

1шт.

21

218-777

PLUG,1 1/16"-12, 37 Degree

hex head, tube, not required when rear attachment hoses are installed

2шт.

22

D127681

CLAMP

boom tubes

4шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

D140303

HOSE ASSY.

HOSE, 34-1/2" (875 mm) long, to closed end of bucket cylinder, Includes: Ref. 27

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Hose

1шт.

28

D140302

HOSE

34-1/2" (875 mm) long, to rod end of bucket cylinder

1шт.

29

D40236

CLAMP

hose

2шт.

30

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

33

27455R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

BOLT carriage, 3/8"-16 NC x 3-1/2", plated

1шт.

34

D140188

ANGLE

PLATE anchor, mounts hoses to underside of dipper frame

1шт.

35

D140187

SPACER

hose

1шт.

36

D140189

WASHER

special

1шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

38

D127681

CLAMP

hose

2шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
