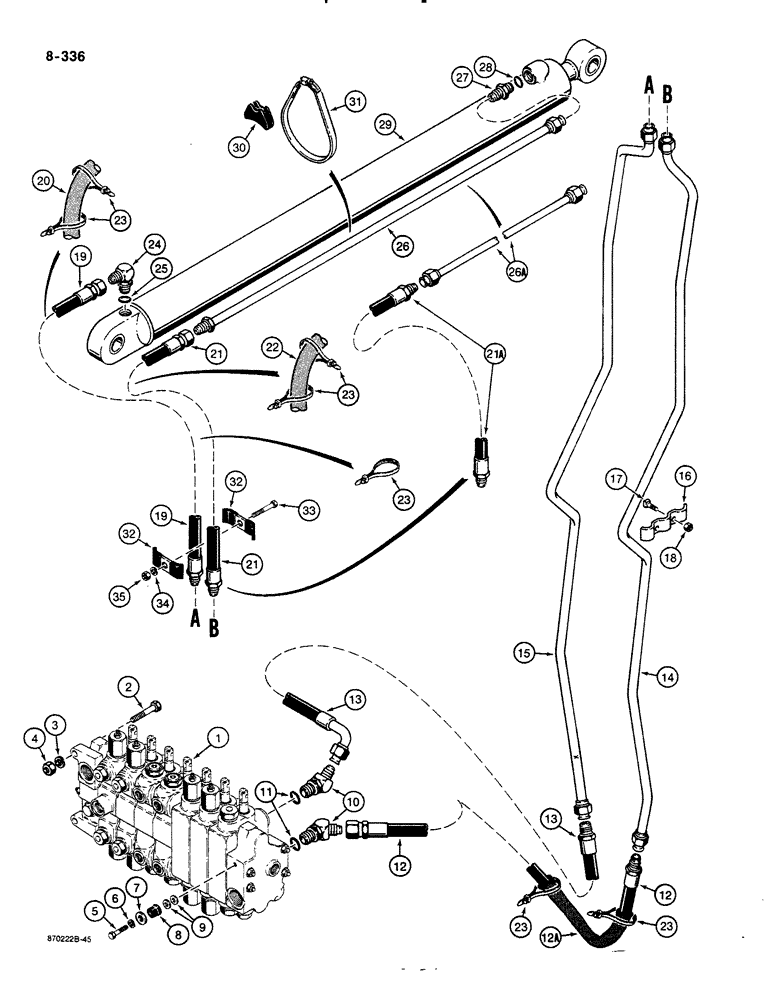

Запчасти Case 580K (08-336) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY control, backhoe, extendahoe, see Figure 08-372 for parts list, for mounting bracket see Figure 08-310 or 08-316

1шт.

2

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

9

195-2030

WASHER,13/32" x 7/8" x .065"

flat, 3/8" bolt size, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, extendable dipper section upper and lower ports, Incl. Ref 11 45º, 7/8"-14 x 1 1/16"-12, O-Ring

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

12

D140130

HOSE,15.88mm ID x 1350mm L

53-5/32" (1350 mm) long, extendahoe section lower port to boom extendable dipper right-hand tube

1шт.

13

D140117

HOSE,15.88mm ID x 1900mm L

74-13/16" (1900 mm) long, extendahoe section upper port to boom extendable dipper left-hand tube

1шт.

14

D140055

TUBE

right-hand side of boom, to extendable dipper cylinder rod end hose

1шт.

For tubes used on models with auxiliary hydraulics for optional rear attachments, see Figure 08-342.

1шт.

15

D140053

TUBE

left-hand side of boom, to extendable dipper cylinder closed end hose

1шт.

For tubes used on models with auxiliary hydraulics for optional rear attachments, see Figure 08-342.

1шт.

16

D143421

CLAMP

boom tubes, plated

4шт.

17

17-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

square head, 3/8"-16 NC x 1", grade 2

8шт.

18

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8"-16 NC, plated

8шт.

19

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

27-9/16" (700 mm) long, extendable dipper cylinder closed end

1шт.

20

D134729

SLEEVE

hose guard, cylinder closed end hose

1шт.

21

D140193

HOSE,12.7mm ID x 850mm L

33-15/32" (850 mm) long, P/N G106708 extendable dipper cylinder rod end

1шт.

21a

D140708

HOSE,12.7mm ID x 850mm L, SAE 100R2

33-15/32" (850 mm) long, P/N 1980200C1 extendable dipper cylinder rod end

1шт.

22

D134728

TUBE

SLEEVE hose guard, cylinder rod end hose

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, hose, 15", nylon

5шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, cylinder closed end, Incl. Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

26

D134089

TUBE

P/N G106708 extendable dipper cylinder rod end

1шт.

26a

D140706

PIPE

TUBE, P/N 1980200C1 extendable dipper cylinder rod end

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, extendable dipper cylinder rod end, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

29

REF

INSTRUCTION

CYLINDER extendable dipper, for correct assembly and components see Figure 08-432

1шт.

30

D38648

BLOCK

INSULATOR rubber

1шт.

31

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP tube to cylinder

1шт.

32

D40236

CLAMP

hose

2шт.

33

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
