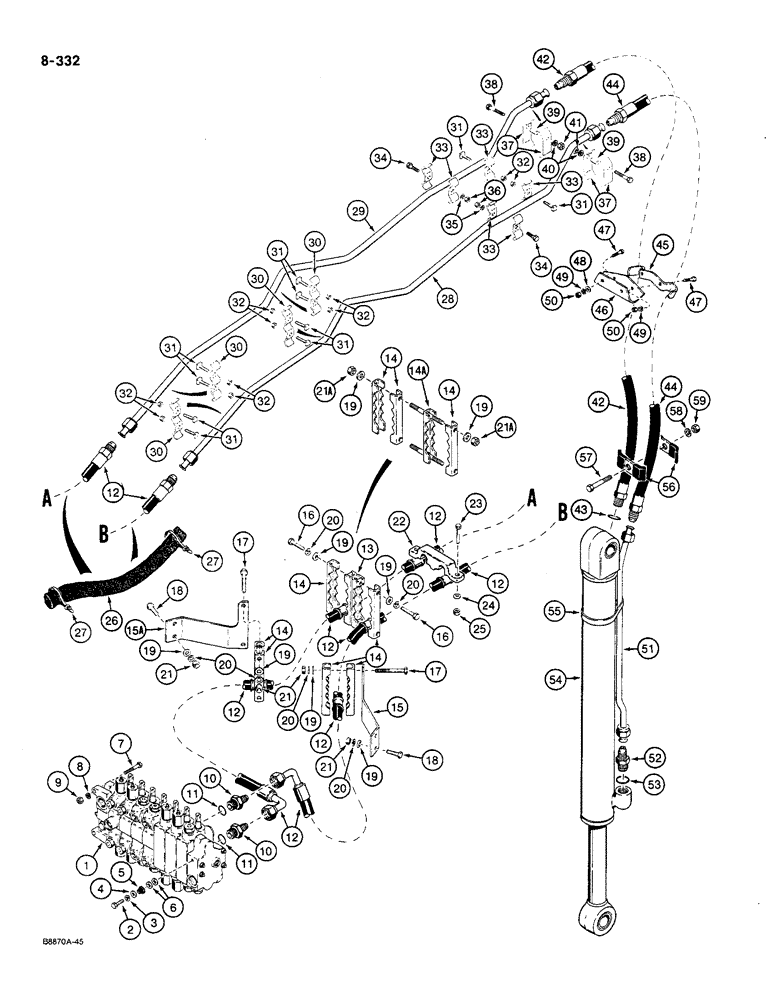

Запчасти Case 580K (08-332) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY control, backhoe, see Figure 08-372 for parts list, for mounting bracket see Figure 08-310 or 08-316

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

195-2030

WASHER,13/32" x 7/8" x .065"

flat, 3/8" bolt size, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, bucket section, Includes: Ref. 11

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

12

D140152

HOSE,15.88mm ID x 1525mm L

60-1/16" (1525 mm) long, at backhoe valve bucket section

2шт.

P/N D140152 is the replacement for P/N D127688 and P/N D127689 in the model 580K, 8-3461 catalog.

1шт.

13

D140127

CLAMP

hose, center, two-piece welded, no longer used, order P/N D92721 clamp and P/N D140552 clamp

1шт.

14

D92721

CLAMP

hose

6-7шт.

14a

D140552

CLAMP

with studs, used with (1) P/N D92721 clamp to replace two-piece welded clamp, Ref. 13, on some models

1шт.

15

D140030

BRACKET

right-hand side, support, rear hose clamps

1шт.

15a

D140031

BRACKET

left-hand side, support, rear hose clamps

1шт.

16

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

If used Hex, 1/2"-13 x 2", G5

4шт.

17

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

19

195-533

WASHER,1/2", SAE

flat, 1/2", plated

12шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8-12шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

21a

131-70

NUT,1/2"-13, GB

NUT hex, self-locking, 1/2"-13 NC

4шт.

22

D127250

CLAMP

hose, mounts to swing tower

1шт.

23

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

24

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

25

131-70

NUT,1/2"-13, GB

NUT hex, self-locking, 1/2"-13 NC, plated

2шт.

26

D132054

SLEEVE

hose guard

2шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, hose, 15", nylon

4шт.

28

D138057

TUBE

right-hand side of boom, to bucket cylinder rod end hose

1шт.

29

D138059

TUBE

left-hand side of boom, to bucket cylinder closed end hose

1шт.

30

D127682

CLAMP

, Serial Range: tube-boom

4шт.

31

17-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

square head, 3/8"-16 NC x 1", grade 2

10шт.

32

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8"-16 NC, plated

10шт.

33

D127681

CLAMP

, Serial Range: tube-boom

6шт.

34

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

37

D143426

CLAMP

bucket tube to boom, plated

4шт.

38

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

39

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

tube clamp, plated

2шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

42

D137800

HOSE

74-13/16" (1900 mm) long, to closed end of bucket cylinder, Includes: Ref. 43

1шт.

43

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Hose

1шт.

44

D137799

HOSE

76" (1930 mm) long, to bucket cylinder rod end tube

1шт.

45

D140221

CLAMP

, Serial Range: hose-dipper

1шт.

46

D140220

BRACKET

hose clamp, if used

1шт.

47

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2-4шт.

48

195-525

WASHER,3/8", SAE

flat, 3/8", plated, if used

2шт.

49

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2-4шт.

50

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2-4шт.

51

D141248

TUBE

to rod end of bucket cylinder

1шт.

52

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, at rod end of bucket cylinder, Incl. 53

1шт.

53

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Connector

1шт.

54

G110597

CYLINDER

bucket, see Figure 08-430

1шт.

54

235916A1R

REMAN-HYD CYLINDER

Reman New PN G110597

1шт.

54

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

55

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP tube to cylinder

1шт.

56

D40236

CLAMP

hose

2шт.

57

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

58

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

59

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
