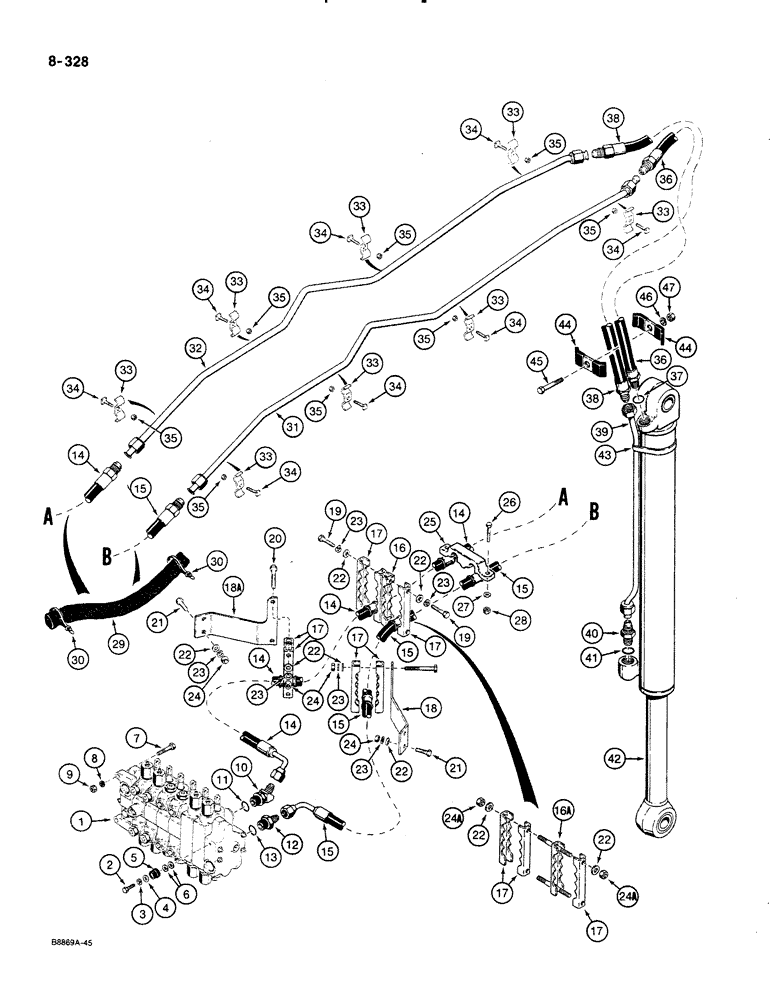

Запчасти Case 580K (08-328) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY control, backhoe, see Figure 08-370 for parts list, for mounting bracket see Figure 08-310 or 08-316

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

195-2030

WASHER,13/32" x 7/8" x .065"

flat, 3/8" bolt size, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, bucket section upper port, Incl. Ref 11 45º, 7/8"-14 x 1 1/16"-12, O-Ring

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

12

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, bucket section lower port, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

14

D140117

HOSE,15.88mm ID x 1900mm L

74-13/16" (1900 mm) long, bucket section upper port

1шт.

15

D140152

HOSE,15.88mm ID x 1525mm L

60-1/16" (1525 mm) long, bucket section lower port

1шт.

P/N D140152 is the replacement for P/N D127688 and P/N D127689 in the model 580K, 8-3461 catalog.

1шт.

16

D140127

CLAMP

hose, center, two piece welded, no longer used, order P/N D92721 clamp and P/N D140552 clamp

1шт.

16a

D140552

CLAMP

with studs, used with (1) P/N D92721 clamp to replace two piece welded clamp, Ref. 16, on some models

1шт.

17

D92721

CLAMP

hose

6-7шт.

18

D140030

BRACKET

right-hand side, support, rear hose clamps

1шт.

18a

D140031

BRACKET

left-hand side, support, rear hose clamps

1шт.

19

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

If used Hex, 1/2"-13 x 2", G5

4шт.

20

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

21

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

22

195-533

WASHER,1/2", SAE

flat, 1/2", plated

12шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8-12шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

24a

131-70

NUT,1/2"-13, GB

NUT hex, self-locking, 1/2"-13 NC

1шт.

25

D127250

CLAMP

hose, mounts to swing tower

1шт.

26

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

27

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

28

131-70

NUT,1/2"-13, GB

NUT hex, self-locking, 1/2"-13 NC, plated

2шт.

29

D132054

SLEEVE

hose guard

2шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, hose, 15", nylon

4шт.

31

D140156

TUBE

right-hand side of boom, to bucket cylinder closed end hose

1шт.

32

D140154

TUBE

left-hand side of boom, to bucket cylinder rod end hose

1шт.

33

D127681

CLAMP

, Serial Range: tube-boom

8шт.

34

17-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

square head, 3/8"-16 NC x 1", grade 2

8шт.

35

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8"-16 NC, plated

8шт.

36

D136489

HOSE,15.88mm ID x 640mm L

25-7/32" (640 mm) long, to closed end of bucket cylinder, Includes: Ref. 37

1шт.

For hoses used on models with auxiliary hydraulics for optional rear hydraulic attachments, see Figure 08-338

1шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Hose

1шт.

38

D136488

HOSE,15.88mm ID x 640mm L

25-7/32" (640 mm) long, to bucket cylinder rod end tube

1шт.

For hoses used on models with auxiliary hydraulics for optional rear hydraulic attachments, see Figure 08-338

1шт.

39

D141248

TUBE

to rod end of bucket cylinder

1шт.

40

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, at rod end of bucket cylinder, Incl. Ref. 41

1шт.

41

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Connector

1шт.

42

G110597

CYLINDER

bucket, see Figure 08-430

1шт.

42

235916A1R

REMAN-HYD CYLINDER

Reman New PN G110597

1шт.

42

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

43

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP tube to cylinder

1шт.

44

D40236

CLAMP

hose

2шт.

45

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

47

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
