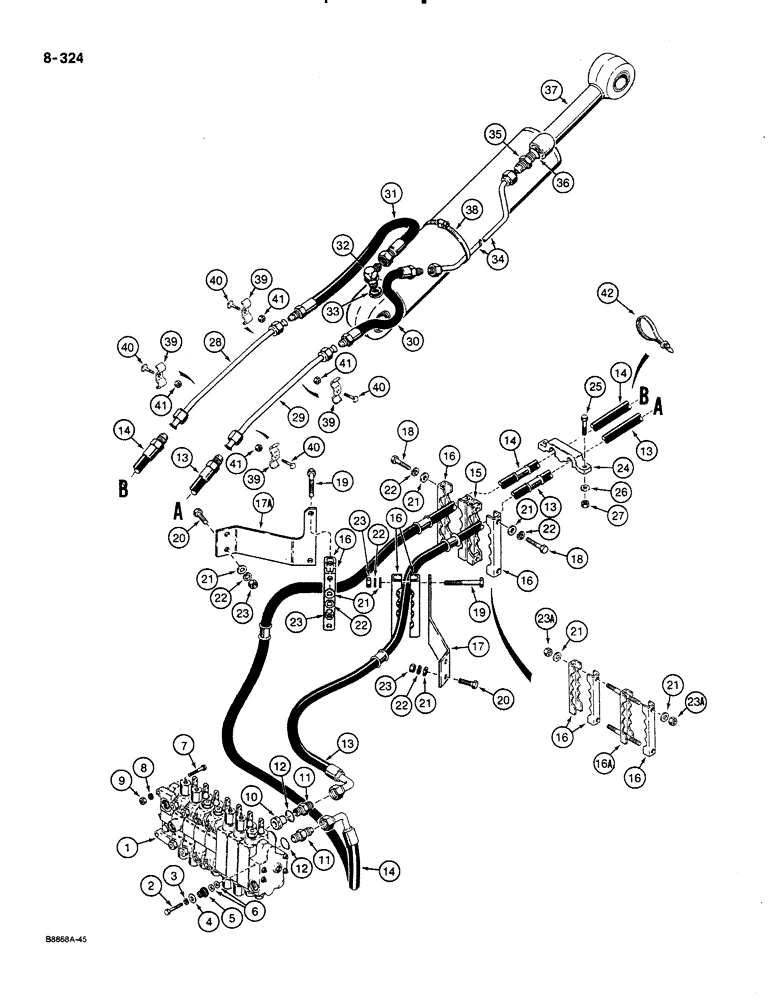

Запчасти Case 580K (08-324) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY control, backhoe, see Figure 08-370 or 08-372 for parts list, for mounting bracket see Figure 08-310 or 08-316

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

195-2030

WASHER,13/32" x 7/8" x .065"

flat, 3/8" bolt size, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

D140183

RESTRICTOR

dipper section upper port

1шт.

11

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, dipper section upper and lower ports, Includes: Ref. 12

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

13

D140120

HOSE,15.88mm ID x 1400mm L

55-1/8" (1400 mm) long, dipper section upper port

1шт.

14

D140118

HOSE,15.88mm ID x 1450mm L

57-3/32" (1450 mm) long, dipper section lower port

1шт.

15

D140127

CLAMP

hose, center, two-piece welded, no longer used, order P/N D92721 clamp and P/N D140552 clamp

1шт.

16

D92721

CLAMP

hose

6-7шт.

16a

D140552

CLAMP

with studs, used with (1) P/N D92721 clamp to replace two-piece welded clamp, Ref. 15, on some models

1шт.

17

D140030

BRACKET

right-hand side, support, rear hose clamps

1шт.

17a

D140031

BRACKET

left-hand side, support, rear hose clamps

1шт.

18

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

If used Hex, 1/2"-13 x 2", G5

4шт.

19

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

20

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

21

195-533

WASHER,1/2", SAE

flat, 1/2", plated

12шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8-12шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

23a

131-70

NUT,1/2"-13, GB

NUT hex, self-locking, 1/2"-13 NC

4шт.

24

D127250

CLAMP

hose, mounts to swing tower

1шт.

25

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

26

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

27

131-70

NUT,1/2"-13, GB

NUT hex, self-locking, 1/2"-13 NC, plated

2шт.

28

D139901

TUBE

left-hand side of boom, from dipper section lower port hose

1шт.

29

D139903

TUBE

right-hand side of boom, from dipper section upper port hose

1шт.

30

D127687

HOSE,15.88mm ID x 400mm L

15-3/4" (400 mm) long, at dipper cylinder rod end tube

1шт.

The illustration shows this hose, P/N D127687, bent, but it should be straight

1шт.

31

D140157

HOSE,15.88mm ID x 750mm L

29-17/32" (750 mm) long, dipper cylinder closed end

1шт.

32

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º adjustable, dipper cylinder closed end, Incl. Ref. 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

34

D139898

PIPE

TUBE dipper cylinder rod end

1шт.

35

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, dipper cylinder rod end, Incl. Ref. 36

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Connector

1шт.

37

REF

INSTRUCTION

CYLINDER dipper, for correct assembly and components see Figure 08-426 or 08-428

1шт.

38

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP tube to cylinder

1шт.

39

D127681

CLAMP

, Serial Range: tube-boom

4шт.

40

17-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

square head, 3/8"-16 NC x 1", grade 2

4шт.

41

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8"-16 NC, plated

4шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15", nylon

1шт.
