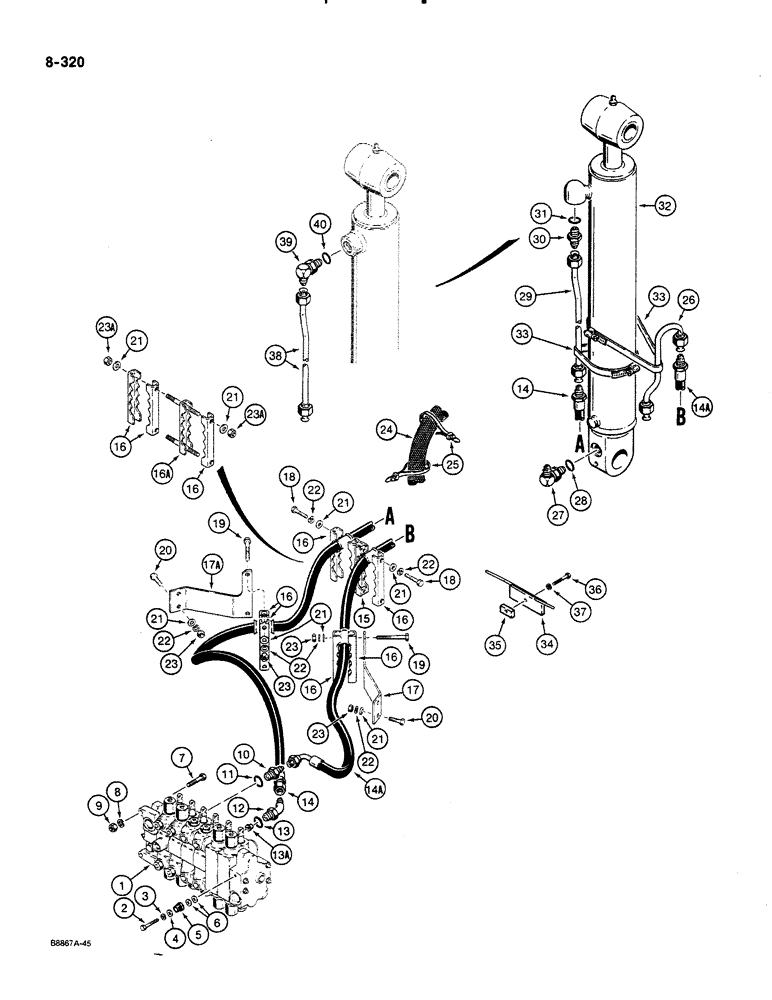

Запчасти Case 580K (08-320) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY control, backhoe, see Figure 08-370 or 08-372 for parts list, for mounting bracket see Figure 08-310 or 08-316

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

195-2030

WASHER,13/32" x 7/8" x .065"

flat, 3/8" bolt size, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, boom section upper port, Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

12

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, boom section lower port, not used on models with boom lock, see Figure 08-346, Incl. Ref 13 45º, 7/8"-14 x 1 1/16"-12, O-Ring

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

13a

D77182

FITTING

RESTRICTOR boom section lower port

1шт.

14

D140121

HOSE,15.88mm ID x 1275mm L

50-7/32" (1275 mm) long, boom cylinder rod end to boom section lower port, not used on models with boom lock, see Figure 08-346

1шт.

14a

D140119

HOSE,15.88mm ID x 1475mm L

58-3/32" (1475 mm) long, boom cylinder closed end to boom section upper port

1шт.

15

D140127

CLAMP

hose, center, two-piece welded, no longer used, order P/N D92721 clamp and P/N D140552 clamp

1шт.

16

D92721

CLAMP

hose

6-7шт.

16a

D140552

CLAMP

with studs, used with (1) P/N D92721 clamp to replace two-piece welded clamp, Ref. 15, on some models

1шт.

17

D140030

BRACKET

right-hand side, support, rear hose clamps

1шт.

17a

D140031

BRACKET

left-hand side, support, rear hose clamps

1шт.

18

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

If used Hex, 1/2"-13 x 2", G5

4шт.

19

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

20

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

21

195-533

WASHER,1/2", SAE

flat, 1/2", plated

12шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8-12шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

23a

131-70

NUT,1/2"-13, GB

NUT hex, self-locking, 1/2"-13 NC

4шт.

24

D134728

TUBE

SLEEVE hose guard

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, hose, 15", nylon

4шт.

26

D139401

TUBE

boom cylinder closed end

1шт.

27

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º adjustable, at boom cylinder closed end, Incl. Ref. 28

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

29

D140336

TUBE

at boom cylinder rod end, used with Ref. 30 connector, if used

1шт.

30

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR straight, male, boom cylinder rod end, if used, Incl. Ref. 31

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Connector

1шт.

32

REF

INSTRUCTION

CYLINDER boom, for correct assembly and components, see Figures 08-420 thru 08-424

1шт.

33

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP tube to cylinder

2шт.

34

D140105

BRACKET

hose guide

1шт.

35

D135667

PLATE

bracket retainer

1шт.

36

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

38

D141614

TUBE

at boom cylinder rod end, used with Ref. 39 elbow, if used

1шт.

39

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º adjustable, at boom cylinder rod end, if used, Incl. Ref. 40

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.
