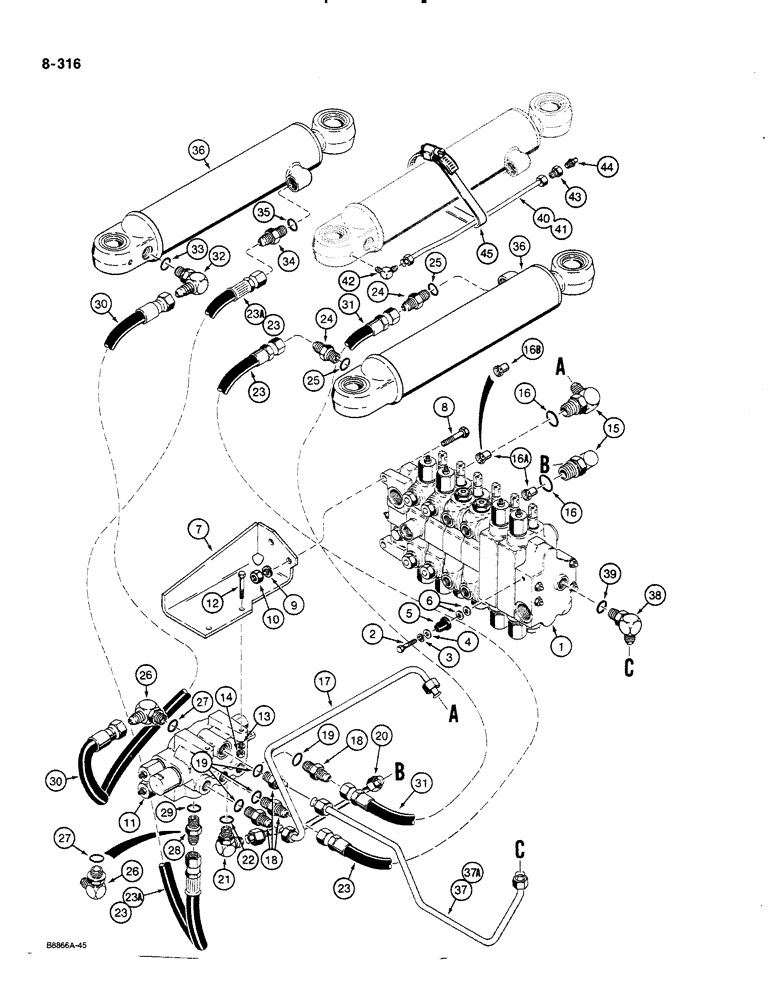

Запчасти Case 580K (08-316) - BACKHOE SWING CYLINDER AND SWING SEQUENCE VALVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY control, backhoe, for correct assembly and components see Figure 08-370 or 08-372

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

195-2030

WASHER,13/32" x 7/8" x .065"

flat, 3/8" bolt size, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

D135614

SUPPORT

BRACKET backhoe control valve and swing sequence valve mounting

1шт.

8

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY swing sequence, see Figure 08-390

1шт.

12

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

90 degree, adjustable, swing section upper and lower ports, Includes: Ref. 16

2шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

16a

D141726

RESTRICTOR

swing check, 1/8" (3.2 mm) orifice, used on models with P/N G108608, 3-1/4" diameter swing cylinder in Figure 08-416, if used

2шт.

16b

D142394

RESTRICTOR

swing check, 9/64" (3.5 mm) orifice, used on models with P/N 1971702C2, 3-1/2" diameter swing cylinder in Figure 08-418, if used

2шт.

17

D135616

TUBE

swing section upper port to sequence valve

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, at swing sequence valve, Includes: Ref. 19

4шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

20

D135618

TUBE

swing section lower port to swing sequence valve lower port

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, swing sequence valve lower port, Incl. Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

23

D27978

HOSE

30-3/4" (781 mm) long, swing sequence valve to right-hand swing cylinder closed end, and left-hand swing cylinder rod end

1-2шт.

23a

L50840

HOSE

24" (610 mm) long, left-hand swing cylinder rod end, no longer used, order P/N D27978 hose for service, Ref. 23

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, right-hand swing cylinder ports, Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

26

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Incl. Ref. 27

1-2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, no longer used, order P/N 218-5107 elbow, Ref. 26, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

30

D140192

HOSE

25-19/32" (650 mm) long, swing sequence valve to left-hand swing cylinder closed end

1шт.

31

D135908

HOSE,12.7mm ID x 725mm L

28-9/16" (725 mm) long, swing sequence valve to right-hand swing cylinder rod end

1шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, left-hand swing cylinder closed end, Incl. Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

34

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, left-hand swing cylinder rod end, Includes: Ref. 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

36

REF

INSTRUCTION

CYLINDER swing, right-hand and left-hand, for correct assembly and components, see Figure 08-416 or 08-418

2шт.

37

D145226

PIPE

TUBE swing sequence valve drain, used on models with six spool backhoe valve, with or without demountable backhoe

1шт.

37a

D145228

PIPE

TUBE swing sequence valve drain, used on models with seven spool backhoe valve, with or without demountable backhoe, also used on models with optional rear hydraulic attachments

1шт.

38

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Incl. Ref. 39

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

40

D134966

TUBE

grease, right-hand swing cylinder

1шт.

41

D134964

TUBE

grease, left-hand swing cylinder

1шт.

42

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 degree, grease tube to cylinder

2шт.

43

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER straight, grease tube coupler

2шт.

44

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

45

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP grease tube to cylinder

2шт.
