Запчасти Case 580K (08-314) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT WITH HOSES AT STABILIZER CYLINDERS (08) - HYDRAULICS

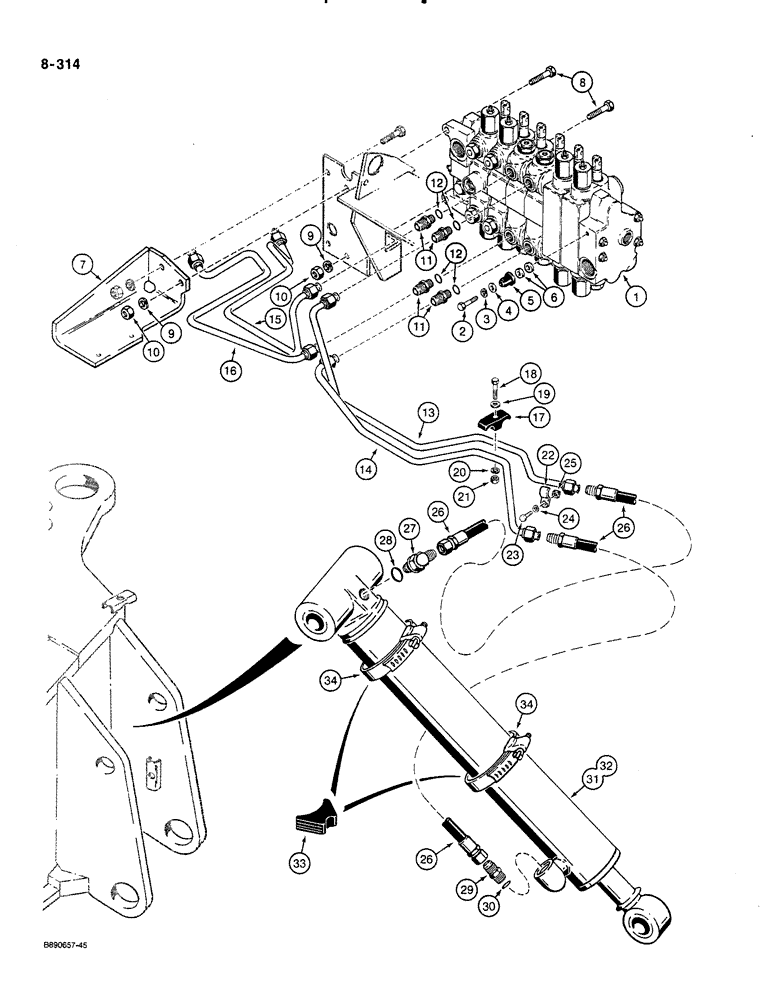

Схема запчастей Case 580K - (08-314) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT WITH HOSES AT STABILIZER CYLINDERS (08) - HYDRAULICS
25
1
9
19
33
32
12
6
28
30
34
18
7
17
2
24
22
20
8
15
23
3
10
11
26
13
10
27
4
26
26
29
9
21
5
31
11
14
34
16
12

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY control, backhoe, see Figure 08-370 or 08-372

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration

1шт.

6

195-2030

WASHER,13/32" x 7/8" x .065"

flat, 3/8" bolt size, 13/32" ID x 7/8" OD x 1/16" thick

2шт.

7

D135614

SUPPORT

BRACKET backhoe control valve and swing sequence valve mounting

1шт.

8

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, stabilizer sections upper and lower ports, Incl. Ref 12

4шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

13

D141746

TUBE ASSY.

TUBE right-hand stabilizer section upper, Serial Range: port-hose

1шт.

14

D141130

TUBE ASSY.

TUBE right-hand stabilizer section lower, Serial Range: port-hose

1шт.

15

D141748

TUBE ASSY.

TUBE left-hand stabilizer section upper, Serial Range: port-hose

1шт.

16

D141160

TUBE ASSY.

TUBE left-hand stabilizer section lower, Serial Range: port-hose

1шт.

17

D120679

CLAMP,Tube, 1/2"

plastic, 1/2" tube

2шт.

18

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

19

195-104

WASHER,3/8"

flat, , plated 3/8"

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

22

D140709

CLAMP

tube

4шт.

23

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

4шт.

26

D141166

HOSE,9.53mm ID x 863mm L, SAE 100R2

34" (863 mm) long, to stabilizer cylinders

4шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, stabilizer cylinder closed ends, Includes: Ref. 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

29

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, stabilizer cylinder rod ends, Incl. Ref 30

2шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

31

G110672

CYLINDER ASSY.

CYLINDER ASSEMBLY right-hand stabilizer, see Figure 08-414

1шт.

32

G110673

CYLINDER ASSY.

CYLINDER ASSEMBLY left-hand stabilizer, see Figure 08-414

1шт.

33

D142787

SPACER

INSULATOR rubber

4шт.

34

214-182

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

CLAMP hose

4шт.

Выбрано товаров: 34
