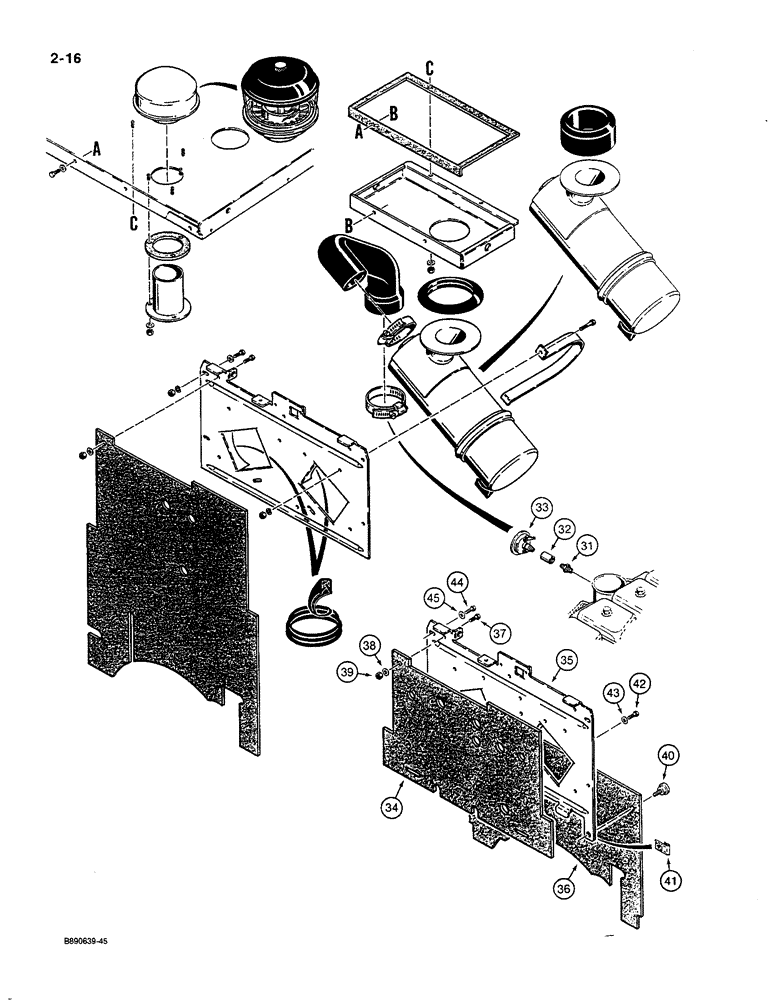

Запчасти Case 580K (02-016) - AIR CLEANER AND AIR INTAKE PARTS, MODELS WITHOUT TURBOCHARGED ENGINES (02) - ENGINE

31

D36264

FITTING

AND FILTER ASSEMBLY air restriction indicator

1шт.

32

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

33

L103131

INDICATOR

SENDER air filter restriction indicator

1шт.

34

D140710

PAD

upper, heat and noise protection, used with Ref.35 and 36, if used

1шт.

35

D140712

SUPPORT

BRACKET air cleaner mounting, used with Ref. 34 and 36 pads, if used

1шт.

36

D140711

PAD

lower, heat and noise protection, used with Ref. 34 and 35, if used

1шт.

37

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

38

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

3шт.

39

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self-locking, 5/16"-18 NC

3шт.

40

D138881

KNOB

KNOB clamping, lower pad, if used

2шт.

41

D122908

NUT

J-type, 3/8"-16 NC, if used

4шт.

42

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

43

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

44

187-1926

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 3/4"

SCREW indented hex washer head, self-tapping, 3/8"-16 NC x 3/4", if used

4шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, zinc plated, 3/8", if used

4шт.
