(08-308) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, AT LOADER BUCKET

Запчасти Case 580K (08-308) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, AT LOADER BUCKET (08) - HYDRAULICS

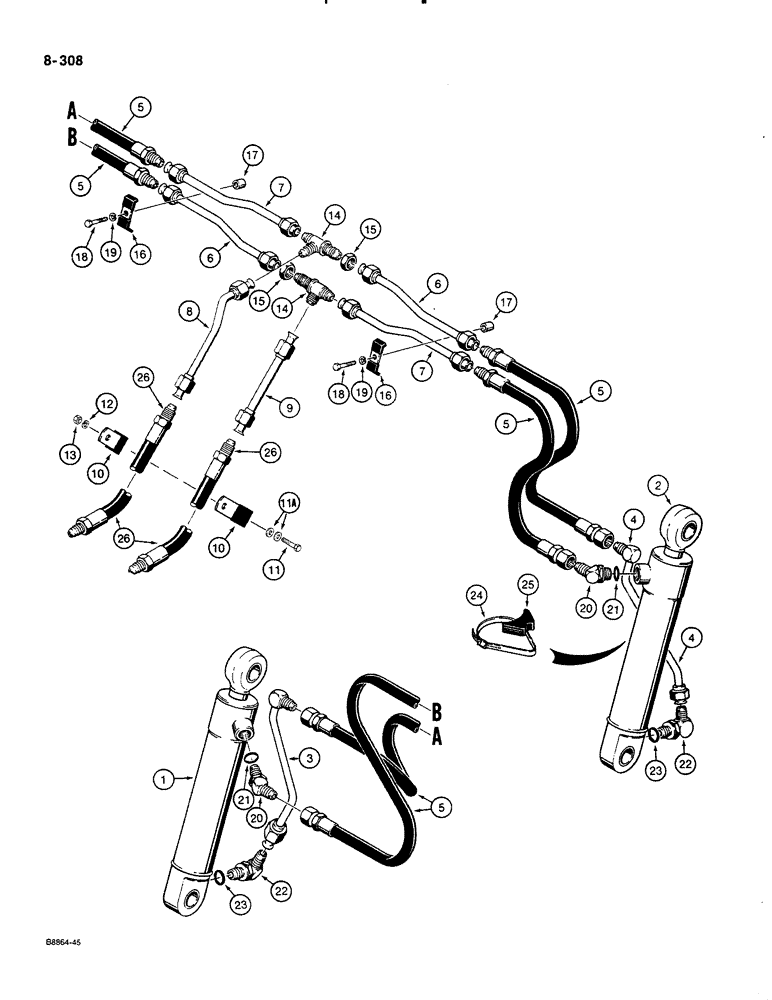

Схема запчастей Case 580K - (08-308) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT, AT LOADER BUCKET (08) - HYDRAULICS
14
20
1
11
20
19
5
15
5
22
16
7
17
17
10
26
6
16
4
23
22
10
18
5
8
3
25
26
21
4
12
21
5
9
14
6
24
2
18
15
13
23
7
11a
5
26
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G101191

CYLINDER ASSY.

CYLINDER clam, left-hand, see Figure 08-412

1шт.

2

G101190

CYLINDER ASSY.

CYLINDER clam, right-hand, see Figure 08-412

1шт.

2

87454017R

REMAN-HYD CYLINDER

580K LOADER BACKHOE (NORTH AMERICA), CYLINDER clam, right-hand, Reman for New PN G101190

1шт.

2

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

3

D51619

TUBE

left-hand cylinder

1шт.

4

D51621

TUBE

right-hand cylinder

1шт.

5

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

26" (660 mm) long, right-hand and left-hand cylinders

4шт.

6

D134461

TUBE

horizontal, right-hand upper and left-hand lower

2шт.

7

D134459

TUBE

horizontal, right-hand lower and left-hand upper

2шт.

8

D138005

TUBE

vertical, left-hand

1шт.

9

D138007

TUBE

vertical, right-hand

1шт.

10

S88820

CLAMP

vertical hoses

2шт.

11

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

11a

195-103

WASHER,5/16"

flat, , plated 5/16"

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

1шт.

14

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

bulkhead, connecting horizontal and vertical tubing

2шт.

15

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

16

D40236

CLAMP

horizontal tubing

2шт.

17

D33552

BUSHING

SPACER tube clamps

2шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, adjustable, clam cylinders, rod end, Incl. Ref 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, clam cylinders, closed end, Incl. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

24

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP clam cylinder tubing, adjustable

2шт.

25

D38648

BLOCK

INSULATOR rubber, clamp

2шт.

26

D125995

HOSE,12.7mm ID x 750mm L

29-17/32" (750 mm) long, from loader lift frame

2шт.
