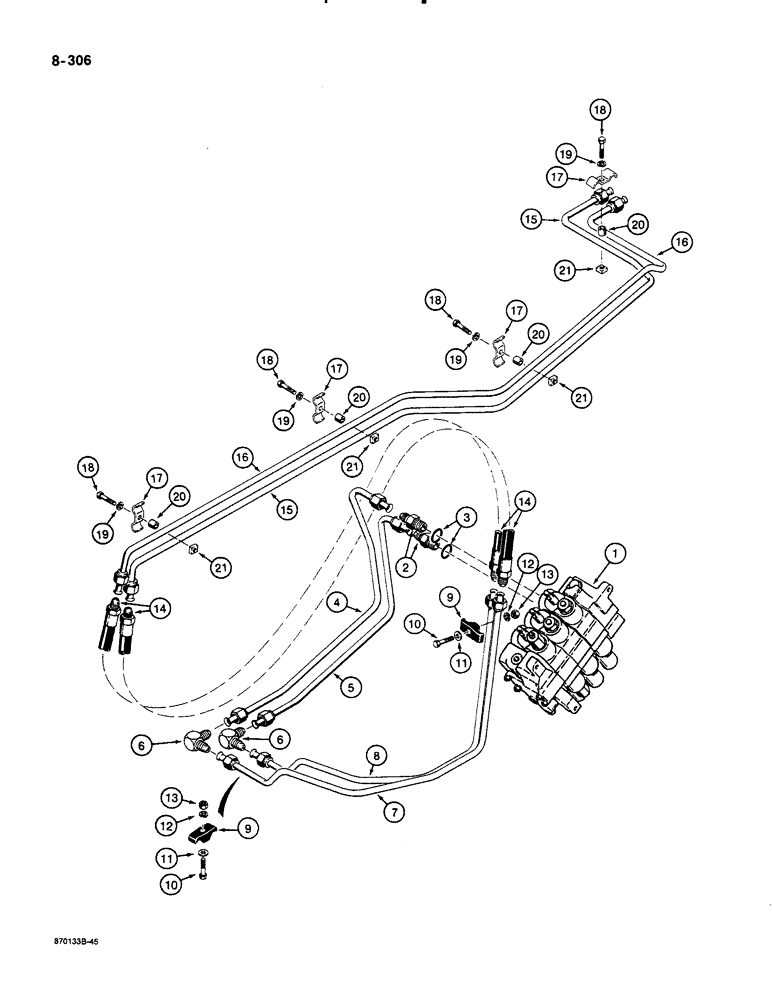

Запчасти Case 580K (08-306) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

G109582

VALVE, CONTROL

VALVE ASSEMBLY control, loader, three-spool, see Figure 08-356

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

4

D135316

TUBE

from upper port auxiliary section of loader control valve, used with Ref. 7, replaces one piece tube used in production

1шт.

5

D135318

TUBE

from lower port auxiliary section of loader control valve, used with Ref. 8, replaces one piece tube used in production

1шт.

6

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

90 degree

2шт.

7

D129710

PIPE

TUBE outer, upper port loader valve tube to lift arm tube

1шт.

8

D129712

PIPE

TUBE inner, lower port loader valve tube to lift arm tube

1шт.

9

D120613

CLAMP,20mm ID

plastic, tube

2шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

95-6

WASHER,3/8"

flat, 3/8"

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

D125995

HOSE,12.7mm ID x 750mm L

29-9/16" (750 mm) long, at loader arm pivot

2шт.

15

D137482

TUBE

lower, on loader lift arm

1шт.

16

D137480

TUBE

upper, on loader lift arm

1шт.

17

D143427

CLAMP

tube, on loader lift arm tubes

4шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

13/32" (10 mm) ID x 5/8" (16 mm) OD x 1/4" (6 mm) long, plated

4шт.

21

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

4шт.
