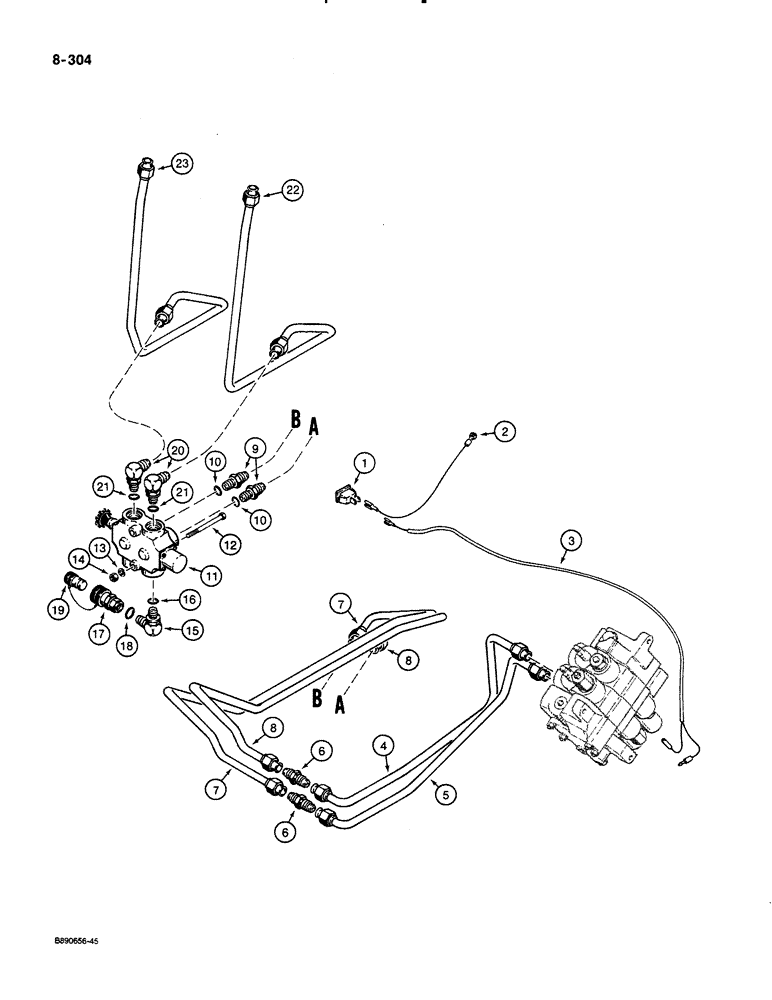

Запчасти Case 580K (08-304) - AUXILIARY REMOTE HYDRAULICS, FOR OPTIONAL HAND HELD ATTACHMENTS (08) - HYDRAULICS

1

D143751

SWITCH

rocker, on/off, at front instrument panel

1шт.

2

D143452

ELECTRICAL WIRE

WIRE ground, attaches to brake reservoir mounting plate with existing hardware

1шт.

3

D143451

HARNESS

WIRE switch to loader control valve and main engine harness

1шт.

4

D143268

PIPE

TUBE at loader control valve upper bucket port

1шт.

5

D143266

PIPE

TUBE at loader control valve lower bucket port

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight

2шт.

7

D143390

TUBE ASSY.

TUBE selector valve to loader control valve, lower bucket port tube

1шт.

8

D143392

TUBE ASSY.

TUBE loader control valve upper bucket port tube to selector valve

1шт.

9

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8" NF flare x 3/4" NF, Incl. Ref. 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

D142933

SELECTOR

VALVE ASSEMBLY selector, see Figure 08-352

1шт.

12

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

218-5313

FITTING

ELBOW, 90 degree, adjustable, Includes: Ref. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

T40265

COUPLING, BREAK AWAY

COUPLER quick disconnect, female, Includes: Ref. 18

2шт.

18

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

coupler

1шт.

19

T40274

CAP

PLUG dust, coupler

2шт.

20

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, 7/8" NF flare x 3/4" NF, Includes: Ref. 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

D143264

TUBE ASSY.

TUBE selector valve to optional hand held attachment hydraulic hose

1шт.

Connecting hoses at these tubes shall be supplied by the customer for use with their particular optional hand held attachment.

1шт.

23

D143262

TUBE ASSY.

TUBE selector valve to optional hand held attachment hydraulic hose

1шт.

Connecting hoses at these tubes shall be supplied by the customer for use with their particular optional hand held attachment.

1шт.
