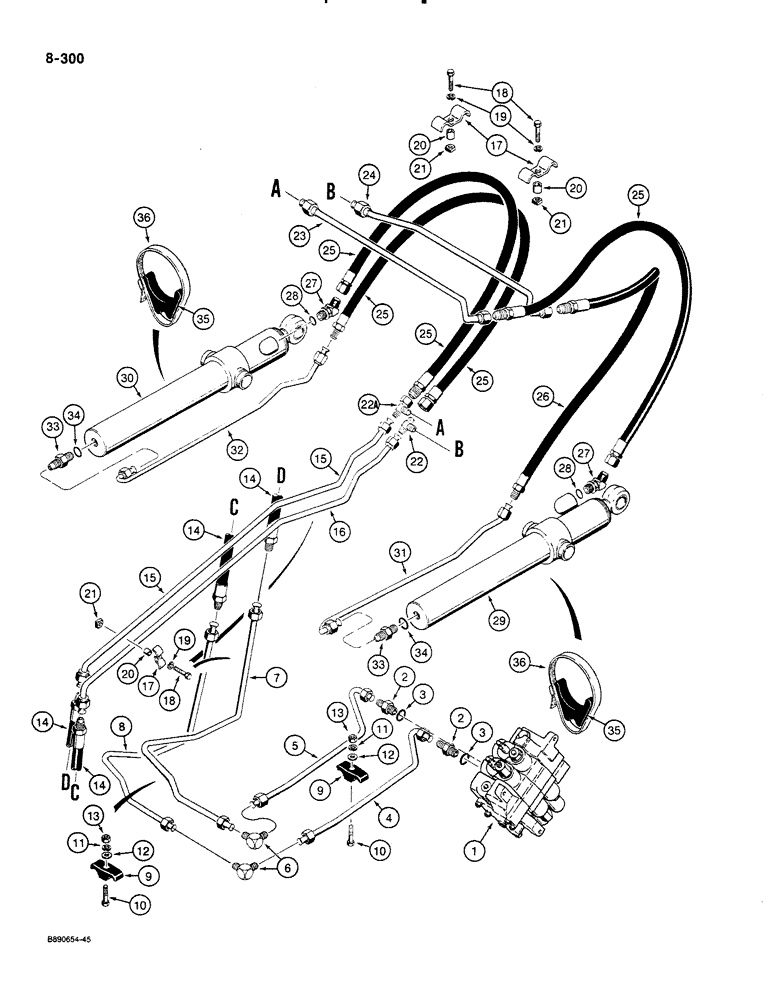

Запчасти Case 580K (08-300) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT WITH STRAIGHT UPPER LIFT FRAME CROSSOVER TUBES, (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY control, loader, for correct assembly and components see Figure 08-354 or 08-356

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

4

D135067

TUBE

to lower bucket port of control valve, replaces one piece tube used in production on some models

1шт.

See Figure 08-304 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments

1шт.

5

D135065

TUBE

to upper bucket port of control valve, replaces one piece tube used in production on some models

1шт.

See Figure 08-304 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments

1шт.

6

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

90 degree, male

2шт.

See Figure 08-304 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments

1шт.

7

D129522

PIPE

TUBE at elbow, attaches to tube at upper port of control valve, bucket dump, replaces one piece tube used in production on some models

1шт.

See Figure 08-304 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments

1шт.

8

D129526

PIPE

TUBE at elbow, attaches to tube at lower port of control valve, bucket rollback, replaces one piece tube used in production on some models

1шт.

See Figure 08-304 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments

1шт.

9

D120613

CLAMP,20mm ID

plastic, tube

2шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

195-104

WASHER,3/8"

flat, , plated 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

D125995

HOSE,12.7mm ID x 750mm L

29-9/16" (750 mm) long, at loader lift frame pivot

2шт.

15

D141672

PIPE

TUBE upper, on left-hand lift arm

1шт.

Ref. 15, 16, 23 and 24 must be used together. See Figure 08-298 for tubes used together in "bent upper lift frame crossover tube" configuration.

1шт.

16

D141674

PIPE

TUBE lower, on left-hand lift arm

1шт.

Ref. 15, 16, 23 and 24 must be used together. See Figure 08-298 for tubes used together in "bent upper lift frame crossover tube" configuration.

1шт.

17

D143427

CLAMP

tube

5шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

20

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

13/32" (10 mm) ID x 5/8" (16 mm) OD x 1/4" (6 mm) long, plated

5шт.

21

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

5шт.

22

218-595

TEE,7/8"-14, 37 Degree

male, at upper lift frame crossover tube

1шт.

22a

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

swivel, at upper lift frame crossover tube

1шт.

23

D141678

PIPE

TUBE upper, with female ends, crossover, at upper lift frame, to rod end of bucket cylinder

1шт.

Ref. 15, 16, 23 and 24 must be used together. See Figure 08-298 for tubes used together in "bent upper lift frame crossover tube" configuration.

1шт.

24

D141676

TUBE

lower, with female ends, crossover, at upper lift frame, to closed end of bucket cylinder

1шт.

Ref. 15, 16, 23 and 24 must be used together. See Figure 08-298 for tubes used together in "bent upper lift frame crossover tube" configuration.

1шт.

25

D131497

HOSE,12.7mm ID x 725mm L

28-9/16" (725 mm) long, to rod end of left-hand and right-hand bucket cylinders and to closed end of left-hand bucket cylinder

3шт.

26

D125995

HOSE,12.7mm ID x 750mm L

29-1/2" (750 mm) long, to closed end of right-hand bucket cylinder

1шт.

27

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, adjustable, Incl. Ref 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

29

G108486

CYLINDER ASSY.

CYLINDER ASSEMBLY bucket, right-hand, see Figure 08-410

1шт.

30

G108487

CYLINDER ASSY.

CYLINDER ASSEMBLY bucket, left-hand, see Figure 08-410

1шт.

31

D127940

PIPE

TUBE to closed end of right-hand bucket cylinder

1шт.

32

D127942

PIPE

TUBE to closed end of left-hand bucket cylinder

1шт.

33

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, Includes: Ref. 34

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

35

D38648

BLOCK

SPACER rubber, single tube

2шт.

36

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP tube to cylinder

2шт.
