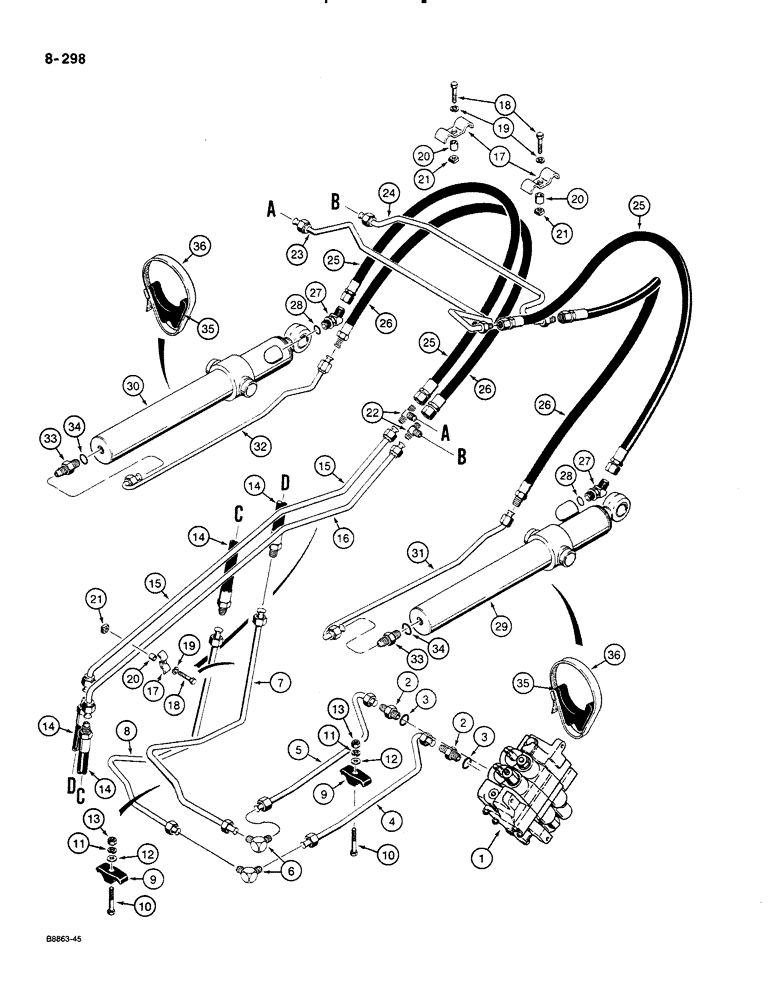

Запчасти Case 580K (08-298) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT WITH BENT UPPER LIFT FRAME CROSSOVER TUBES, (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY control, loader, for correct assembly and components see Figure 08-354 or 08-356

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

4

D135067

TUBE

to lower bucket port of control valve, replaces one piece tube used in production on some models

1шт.

See Figure 08-304 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments

1шт.

5

D135065

TUBE

to upper bucket port of control valve, replaces one piece tube used in production on some models

1шт.

See Figure 08-304 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments

1шт.

6

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

90 degree, male

2шт.

See Figure 08-304 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments

1шт.

7

D129522

PIPE

TUBE at elbow, attaches to tube at upper port of control valve, bucket dump, replaces one piece tube used in production on some models

1шт.

See Figure 08-304 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments

1шт.

8

D129526

PIPE

TUBE at elbow, attaches to tube at lower port of control valve, bucket, rollback, replaces one piece tube used in production on some models

1шт.

See Figure 08-304 for tubes and fittings used on models with auxiliary remote hydraulics for hand held attachments

1шт.

9

D120613

CLAMP,20mm ID

plastic, tube

2шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

195-104

WASHER,3/8"

flat, , plated 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

D125995

HOSE,12.7mm ID x 750mm L

29-9/16" (750 mm) long, at loader lift frame pivot

2шт.

15

D134252

TUBE

upper, on left-hand lift arm

1шт.

Ref. 15, 16, 23 and 24 must be used together. See Figure 08-300 for tubes used together in "straight upper lift frame crossover tube" configuration.

1шт.

16

D132824

PIPE

TUBE lower, on left-hand lift arm

1шт.

Ref. 15, 16, 23 and 24 must be used together. See Figure 08-300 for tubes used together in "straight upper lift frame crossover tube" configuration.

1шт.

17

D137379

CLAMP

tube

5шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

20

D123539

BUSHING

SPACER, 13/32" (10 mm) ID x 5/8" (16 mm) OD x 1/4" (6 mm) long

5шт.

21

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

5шт.

22

218-595

TEE,7/8"-14, 37 Degree

male, at upper lift frame crossover tubes

2шт.

23

D132826

PIPE

TUBE upper, with female/male ends, crossover, at upper lift frame, to rod end of bucket cylinders

1шт.

Ref. 15, 16, 23 and 24 must be used together. See Figure 08-300 for tubes used together in "straight upper lift frame crossover tube" configuration.

1шт.

24

D132828

PIPE

TUBE lower, with female/male ends, crossover, at upper lift frame, to closed end of bucket cylinders

1шт.

Ref. 15, 16, 23 and 24 must be used together. See Figure 08-300 for tubes used together in "straight upper lift frame crossover tube" configuration.

1шт.

25

D135908

HOSE,12.7mm ID x 725mm L

28-9/16" (725 mm) long, to rod end of bucket cylinders

2шт.

26

D135907

HOSE

34-9/32" (870 mm) long, to closed end of bucket cylinders

2шт.

27

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, adjustable, Incl. Ref 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

29

G108486

CYLINDER ASSY.

CYLINDER ASSEMBLY bucket, right-hand, see Figure 08-410

1шт.

30

G108487

CYLINDER ASSY.

CYLINDER ASSEMBLY bucket, left-hand, see Figure 08-410

1шт.

31

D127940

PIPE

TUBE to closed end of right-hand bucket cylinder

1шт.

32

D127942

PIPE

TUBE to closed end of left-hand bucket cylinder

1шт.

33

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, Includes: Ref. 34

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

35

D38648

BLOCK

SPACER rubber, single tube

2шт.

36

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP tube to cylinder

2шт.
