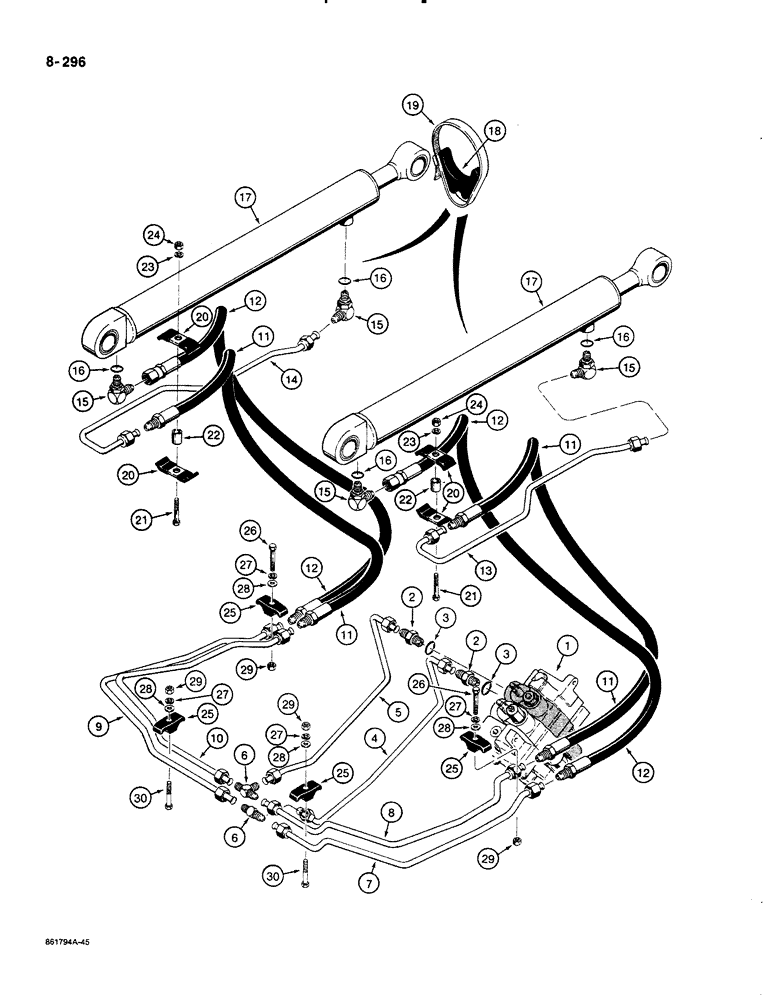

Запчасти Case 580K (08-296) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY control, loader, for correct assembly and components see Figure 08-354 or 08-356

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, male, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

4

D135063

TUBE

to lower lift port of control valve

1шт.

5

D135061

TUBE

to upper lift port of control valve

1шт.

6

218-595

TEE,7/8"-14, 37 Degree

male, right-hand to left-hand cylinders

2шт.

7

D131489

PIPE

TUBE at tee, to hose at closed end of right-hand lift cylinder

1шт.

8

D131491

PIPE

TUBE at tee, to hose at rod end of right-hand lift cylinder

1шт.

9

D131493

PIPE

TUBE at tee, to hose at closed end of left-hand lift cylinder

1шт.

10

D131495

PIPE

TUBE at tee, to hose at rod end of left-hand lift cylinder

1шт.

11

D131496

HOSE,12.7mm ID x 690mm L

27-3/16" (690 mm) long, to rod end of lift cylinders

2шт.

12

D131497

HOSE,12.7mm ID x 725mm L

28-9/16" (725 mm) long, to closed end of lift cylinders

2шт.

13

D132834

PIPE

TUBE rod end of right-hand lift cylinder

1шт.

14

D132836

PIPE

TUBE rod end of left-hand lift cylinder

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Incl. Ref. 16

4шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY lift, right-hand and left-hand, for correct assembly and components see Figure 08-408

2шт.

18

D38648

BLOCK

SPACER rubber, single tube

2шт.

19

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP hose to cylinder

2шт.

20

D143846

CLAMP

- Metal, Hose

4шт.

21

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

22

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

hose clamp, plated

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

25

D120613

CLAMP,20mm ID

plastic, tube

4шт.

26

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

28

95-6

WASHER,3/8"

flat, 3/8"

4шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

30

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.
