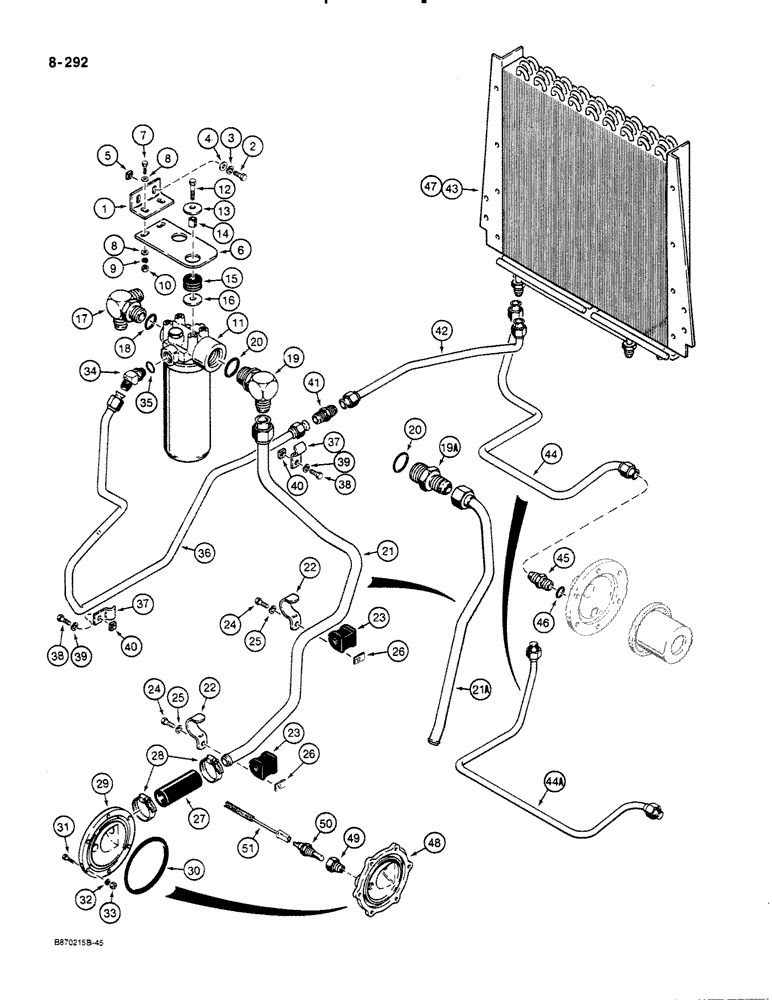

Запчасти Case 580K (08-292) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES, AND FILTER (08) - HYDRAULICS

1

D129562

SUPPORT

BRACKET hydraulic oil filter, Serial Range: mounting-chassis

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

5

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

2шт.

6

D135057

PLATE

hydraulic oil filter mounting

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

195-103

WASHER,5/16"

flat, , plated 5/16"

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

2шт.

11

D132933

FILTER ASSY

FILTER ASSEMBLY hydraulic oil, see Figure 08-406

1шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

195-2042

WASHER,.469" x 1 1/2" x .134"

flat, 7/16" bolt size, 15/32" ID x 1-1/2" OD x 1/8" thick

2шт.

14

D76209

SPACER

filter mounting

2шт.

15

D132895

GROMMET

filter mounting plate

2шт.

16

195-2042

WASHER,.469" x 1 1/2" x .134"

flat, 7/16" bolt size, 15/32" ID x 1-1/2" OD x 1/8" thick

2шт.

17

D129566

ELBOW

FITTING elbow, special, three-way, backhoe return to filter and loader valve return, Incudes: Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

fitting

1шт.

19

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

90 degree, adjustable, return to tank, if used

1шт.

19a

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER straight, return to tank, if used, Includes: Ref. 20

1шт.

20

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, P/N 218-5275 elbow, or P/N 218-5086 adapter

1шт.

21

D135445

TUBE

return to tank, used with Ref. 19, elbow, if used

1шт.

21a

D141404

TUBE

return to tank, used with Ref. 19A, adapter, if used

1шт.

22

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

return to tank tube

2шт.

23

D67297

BLOCK

INSULATOR tube

2шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

D122307

NUT

NUT, U-type, 3/8"-16 NC

2шт.

27

R12351

LARGE HOSE

HOSE, 1" (25 mm) ID x 1-1/2" (38 mm) OD x 4" (102 mm) long, return, at tank inlet

1шт.

28

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose

2шт.

29

D125694

FLANGE

reservoir, return

1шт.

30

T53326

O-RING,4.475" ID x 5.025" OD x 0.275"

reservoir return flange

1шт.

31

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

33

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

34

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45 degree, adjustable, to oil cooler inlet tube, Incl. Ref 35

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

36

D135275

TUBE

oil filter to cooler inlet

1шт.

37

D143430

CLAMP

tube

2шт.

38

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

40

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

2шт.

41

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight

1шт.

42

D135281

TUBE ASSY.

TUBE cooler inlet

1шт.

43

A184542

COOLER, OIL

COOLER oil, power shuttle and equipment hydraulic oil, see Figure 06-182 for oil cooler mounting hardware

1шт.

44

D137348

TUBE ASSY.

TUBE cooler return to reservoir, if used

1шт.

44a

D140805

TUBE ASSY.

TUBE cooler return to reservoir, if used

1шт.

45

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR straight, at reservoir inlet flange, Includes: Ref. 46

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector

1шт.

47

A184190

COOLER

oil, heavy duty, power shuttle and equipment hydraulic oil, see Figure 06-182 for oil cooler mounting hardware, Replaces: Ref. 43 cooler, special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

48

D139268

SHOULDER

FLANGE return, Replaces: Ref. 29 flange, special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

49

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

1/2" x 1/4" NPT, special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

50

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

oil temperature, special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

51

D140301

HARNESS

temperature switch to engine harness, used on models with engine fuse block in main engine harness, if used, special parts used on models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.
