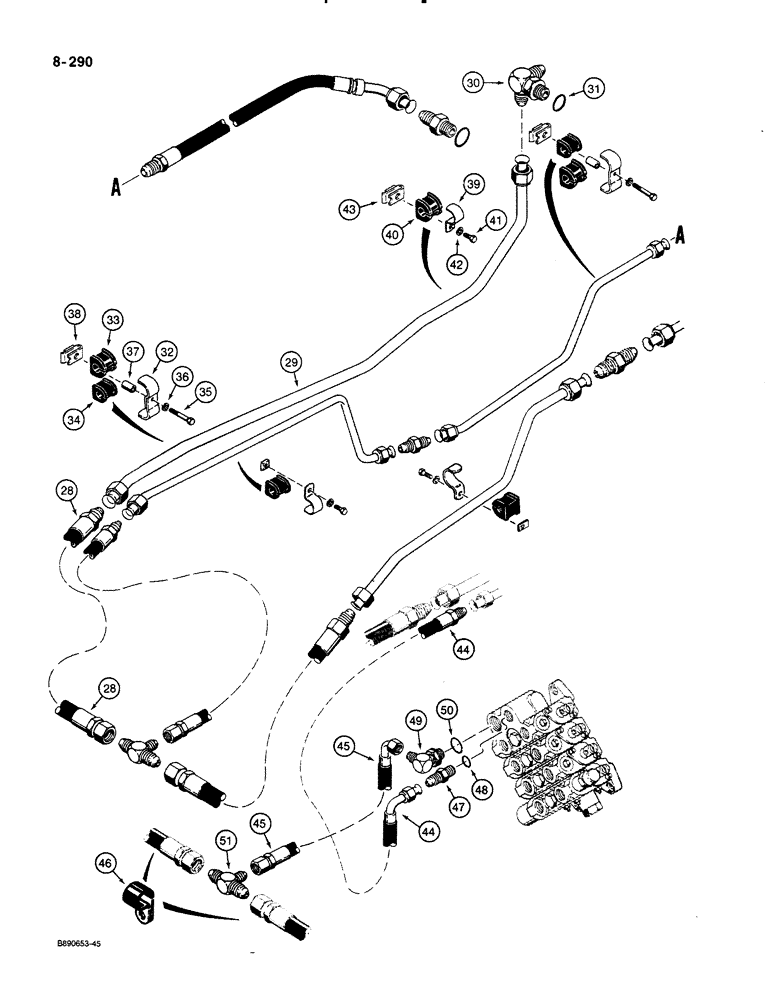

Запчасти Case 580K (08-290) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP TO REAR EQUIPMENT LINES WITHOUT BACKHOE - LOADER ONLY (08) - HYDRAULICS

28

D136968

HOSE

24-5/8" (625 mm) long, tee to return to filter tube

1шт.

See Figure 08-280 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

29

D139137

TUBE

, Serial Range: return-filter

1шт.

See Figure 08-280 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

30

D129566

ELBOW

FITTING elbow, special, three way, at hydraulic oil filter, Includes: Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

fitting

1шт.

32

D143422

SHIN

CLAMP double tube, return tube

1шт.

33

D67297

BLOCK

INSULATOR, 1", return to filter tube

1шт.

34

D143797

SHOCK ABSORBER

INSULATOR, 5/8", lower pressure tube

1шт.

35

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

tube clamp

1шт.

38

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

39

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1", return to filter tube

1шт.

40

D67297

BLOCK

INSULATOR, 1", return to filter tube

1шт.

41

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

44

D141266

HOSE

37-7/16" (950 mm) long, pressure, to hitch valve inlet, upper port, special parts to adapt three-point hitch to loader models

1шт.

45

D141265

HOSE ASSY.

HOSE, 33-1/2" (850 mm) long, return from hitch valve outlet, lower port, special parts to adapt three-point hitch to loader models

1шт.

46

D40471

CLAMP

uses existing rear transmission housing cover hardware, special parts to adapt three-point hitch to loader models

2шт.

47

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, at hitch valve inlet port, upper, Incl. Ref. 48, special parts to adapt three-point hitch to loader models 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

48

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter, Special parts to adapt three-point hitch to loader models

1шт.

49

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º adjustable, at hitch valve return port, lower, special parts to adapt three-point hitch to loader models, Incl. Ref. 50

1шт.

50

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow, special parts to adapt three-point hitch to loader models

1шт.

51

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

male, hose, special parts to adapt three-point hitch to loader models

1шт.
