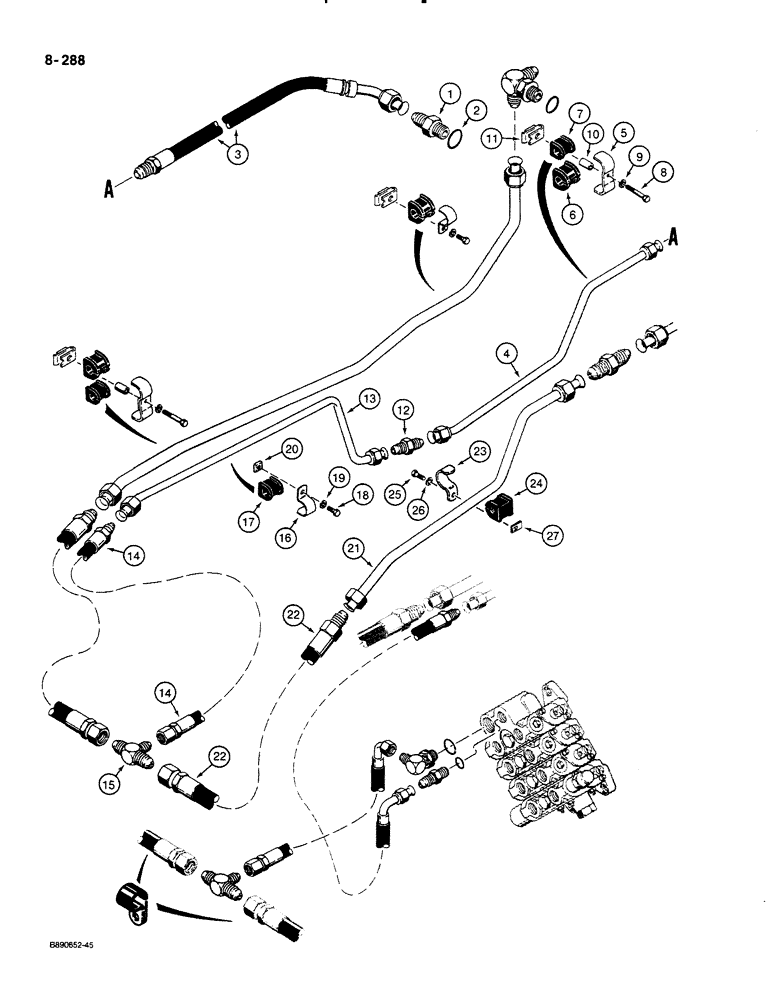

Запчасти Case 580K (08-288) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP TO REAR EQUIPMENT LINES WITHOUT BACKHOE - LOADER ONLY (08) - HYDRAULICS

1

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, small pump section outlet port, Includes: Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

3

D140802

HOSE

20-7/32" (513 mm) long, small pump section outlet port, used with Ref. 1 adapter

1шт.

4

D140787

PIPE

TUBE small pump section hose to small pressure hose, lower left-hand side of chassis

1шт.

5

D143422

SHIN

CLAMP double tube, small pump section tube to loader valve inlet tube

1шт.

6

D67297

BLOCK

INSULATOR, 1", for loader valve inlet tube

1шт.

7

D143797

SHOCK ABSORBER

INSULATOR, 5/8", small pump section backhoe tube

1шт.

8

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

tube clamp

1шт.

11

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

12

218-744

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, 37 Degree

ADAPTER straight

1шт.

13

D142312

TUBE

small pump pressure section tube to hose, lower left hand side of chassis

1шт.

14

D137628

HOSE

26-19/32" (675 mm) long, small pump pressure section tube to return tee, used on models with rear counterweight, not used on models with three-point hitch, for models with three-point hitch see Ref. 44 and 45 in Figure 08-290

1шт.

See Figure 08-280 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

15

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

male

1шт.

See Figure 08-280 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

16

D74192

CLAMP

small pump pressure section tube, if used

1шт.

17

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR, 3/4", tube, if used

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

20

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC, if used

1шт.

21

D142518

TUBE

used with loader valve power beyond hose Ref. 63 in Figure 08-274, right hand side of chassis

1шт.

See Figure 08-280 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

22

D136966

HOSE

31-1/2" (800 mm) long, to tee, right hand side of chassis

1шт.

See Figure 08-280 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

23

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

tube

1шт.

24

D67297

BLOCK

INSULATOR, 1", tube

1шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.
