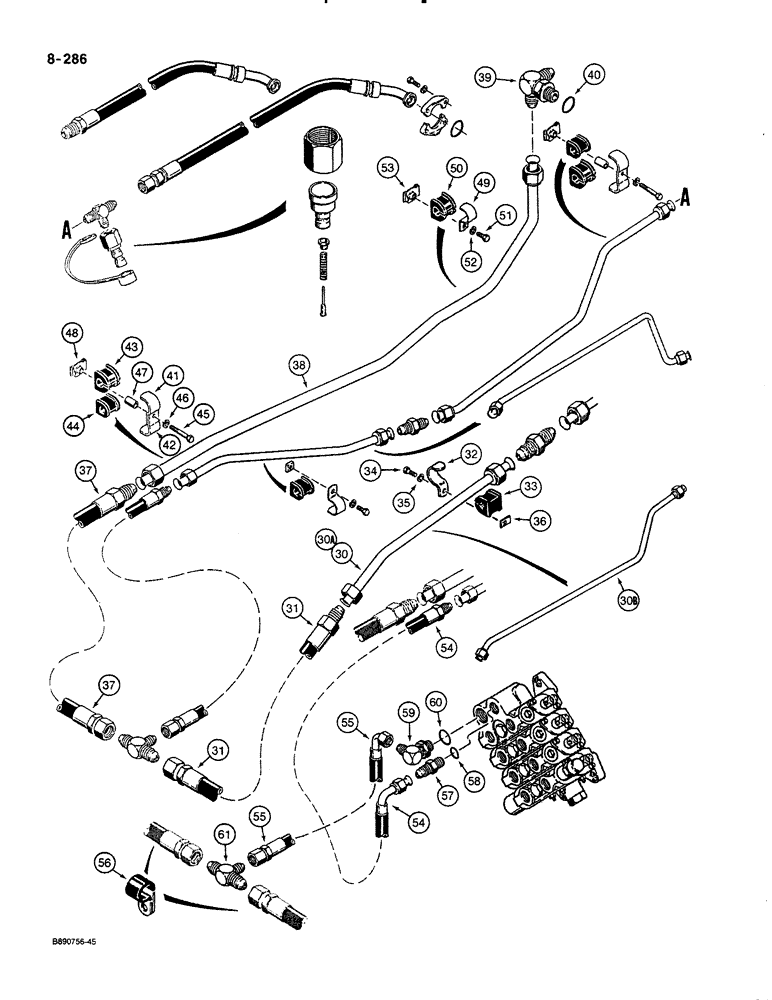

Запчасти Case 580K (08-286) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP TO REAR EQUIPMENT LINES WITHOUT BACKHOE - LOADER ONLY (08) - HYDRAULICS

30

D139135

TUBE

used with loader valve power beyond tube Ref. 38 in Figure 08-274, right-hand side of chassis, if used

1шт.

See Figure 08-276 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

30a

D141477

TUBE

used with loader valve power beyond hose Ref. 63 in Figure 08-274, right-hand side of chassis, no longer available, order P/N D142518 tube

1шт.

30b

D142518

TUBE

used with loader valve power beyond hose Ref. 63 in Figure 08-274, right-hand side of chassis, if used

1шт.

31

D136966

HOSE

31-1/2" (800 mm) long, to tee, right hand side of chassis

1шт.

See Figure 08-276 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

32

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

tube

1шт.

33

D67297

BLOCK

INSULATOR, 1", tube

1шт.

34

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

36

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

37

U243289

GAUGE

24-5/8" (625 mm) long, tee to return to filter tube

1шт.

See Figure 08-276 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

38

D139137

TUBE

, Serial Range: return-filter

1шт.

See Figure 08-276 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

39

D129566

ELBOW

FITTING elbow, special, three way, at hydraulic oil filter, Includes: Ref. 40

1шт.

40

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

fitting

1шт.

41

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1", return tube

1шт.

42

D74192

CLAMP

3/4", tube

1шт.

43

D67297

BLOCK

INSULATOR, 1", return to filter tube

1шт.

44

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR, 3/4", lower pressure tube

1шт.

45

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

47

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

tube clamp

1шт.

48

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

49

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1", return to filter tube

1шт.

50

D67297

BLOCK

INSULATOR, 1", return to filter tube

1шт.

51

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

52

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

53

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

54

D141266

HOSE

37-7/16" (950 mm) long, pressure, to hitch valve inlet, upper port, special parts to adapt three-point hitch to loader models

1шт.

55

D141265

HOSE ASSY.

HOSE, 33-1/2" (850 mm) long, return from hitch valve outlet, lower port, special parts to adapt three-point hitch to loader models

1шт.

56

D40471

CLAMP

uses existing rear transmission housing cover hardware, special parts to adapt three-point hitch to loader models

2шт.

57

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, at hitch valve inlet port, upper, special parts to adapt three-point hitch to loader models, Incl. Ref. 58 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

58

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter, Special parts to adapt three-point hitch to loader models

1шт.

59

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º adjustable, at hitch valve return port, lower, special parts to adapt three-point hitch to loader models, Incl. Ref. 60

1шт.

60

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow, special parts to adapt three-point hitch to loader models

1шт.

61

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

male, hose, special parts to adapt three-point hitch to loader models

1шт.
