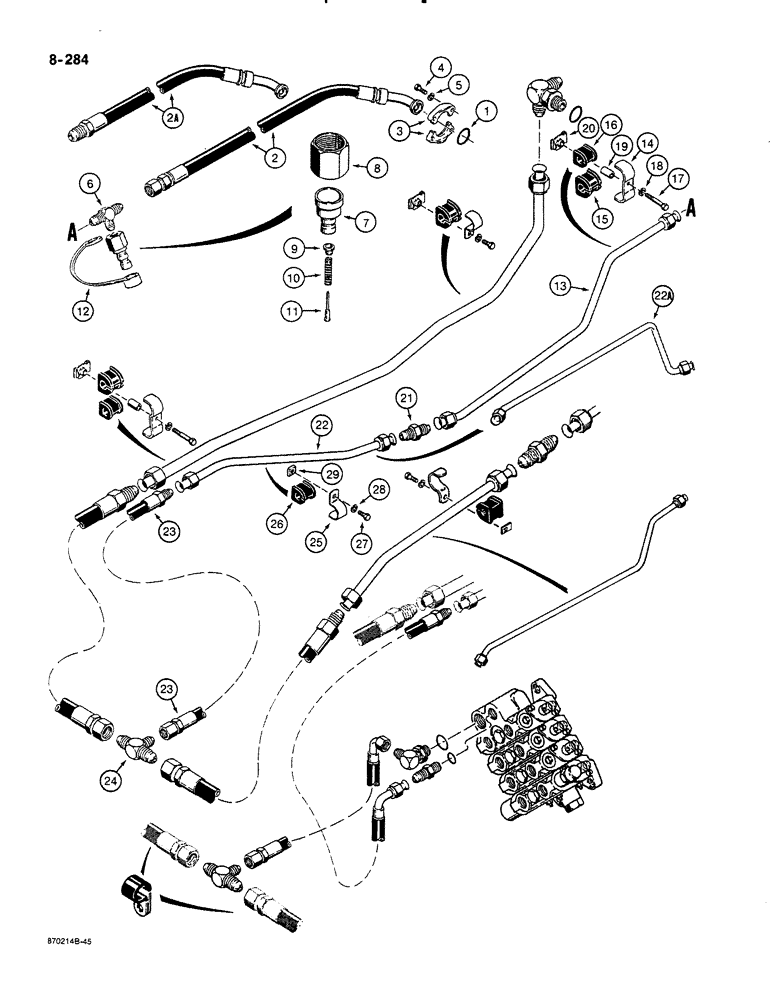

Запчасти Case 580K (08-284) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP TO REAR EQUIPMENT LINES W/O BACKHOE - LOADER ONLY (08) - HYDRAULICS

1

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

3/4", small pump section outlet port

1шт.

2

D133649

HOSE ASSY.

HOSE, 17-23/32" (450 mm) long, small pump section outlet port, used with quick disconnect Ref. 6-12, no longer used, order P/N D140058 hose, Ref. 2A

1шт.

2a

D140058

HOSE,12.7mm ID x 520mm L, SAE 100R2

20-1/2" (520 mm) long, small pump section outlet port, used without quick disconnect coupling, Replaces: Ref. 2 and 6-12

1шт.

3

A16961

FLANGE

CLAMP split flange, at equipment pump small section outlet port

2шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

218-596

TEE,1 1/16"-12 37 Degree

male, pump outlet hose to tube, if used

1шт.

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Disconnect Assy quick, coupling, used with P/N D133649 hose, Ref. 2, if used, Includes Ref. 7 thru 11

1шт.

7

NSS

NOT SOLD SEPARAT

BODY coupling

1шт.

8

129-132

NUT,1 1/4"-12, G5

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING coupling

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET coupling

1шт.

12

H434163

DUST CAP

CAP dust, coupling, if used

1шт.

13

D135437

TUBE

small pump section hose to small pressure hose, lower left-hand side of chassis

1шт.

14

D133675

CLAMP

double tube, small pump section tube to loader valve inlet tube

1шт.

15

D67297

BLOCK

INSULATOR, 1", for loader valve inlet tube

1шт.

16

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR, 3/4", small pump section backhoe tube

1шт.

17

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

tube clamp

1шт.

20

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

21

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR straight

1шт.

22

D136963

HOSE ASSY.

TUBE small pump pressure section tube to hose, lower left-hand side of chassis, no longer used, order P/N D136988 tube

1шт.

See Figure 08-276 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

22a

D142312

TUBE

small pump pressure section tube to hose, lower left-hand side of chassis

1шт.

23

D137628

HOSE

26-19/32" (675 mm) long, small pump pressure section tube to return tee, used on models with rear counterweight, not used on models with three-point hitch, for models with three point hitch, see Ref. 54 and 55 in Figure 08-286

1шт.

See Figure 08-276 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

24

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

male

1шт.

See Figure 08-276 for rear hydraulic tubes used on models with or without demountable backhoe

1шт.

25

D74192

CLAMP

small pump pressure section tube

1шт.

26

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR, 3/4", tube

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

1шт.
