Запчасти Case 580K (08-282) - EQUIPMENT HYDRAULIC SYSTEM, EQUIP. PUMP TO REAR EQUIP. LINES - W/BACKHOE MODELS W/ADAPTER, REF. 1, (08) - HYDRAULICS

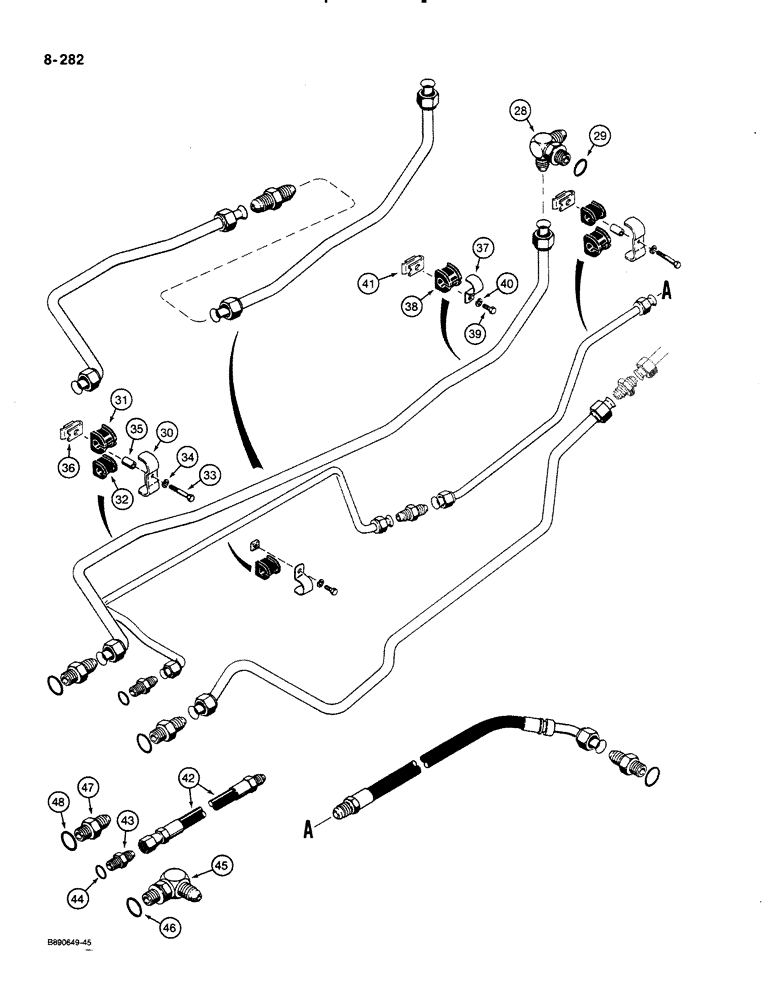

Схема запчастей Case 580K - (08-282) - EQUIPMENT HYDRAULIC SYSTEM, EQUIP. PUMP TO REAR EQUIP. LINES - W/BACKHOE MODELS W/ADAPTER, REF. 1, (08) - HYDRAULICS
34
40
47
39
33
43
37
36
41
48
31
29
38
30
42
35
44
46
45
32
28

Артикул

Название

Примечание

Количество

28

D129566

ELBOW

FITTING elbow, special, three-way, at hydraulic oil filter, Includes: Ref. 29

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

fitting

1шт.

30

D143422

SHIN

CLAMP double tube

1шт.

31

D67297

BLOCK

INSULATOR, 1", backhoe return tube

1шт.

32

D143797

SHOCK ABSORBER

INSULATOR, 5/8", backhoe swing section inlet tube

1шт.

33

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

clamp

1шт.

36

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

37

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1", return to filter tube

1шт.

38

D67297

BLOCK

INSULATOR tube

1шт.

39

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

41

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

42

D136967

HOSE

36-7/16" (925 mm) long, small pump pressure section tube to backhoe valve swing section, attaches to P/N D142312 tube Ref. 13 in Figure 08-288, special parts used on standard or extendable dipper models with demountable backhoe, Serial Range: -00000000000000000000

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-288 and 08-290 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

43

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, swing section, special parts used on standard or extendable dipper models with demountable backhoe, Includes: Ref. 44

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-288 and 08-290 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter, special parts used on standard or extendable dipper models with demountable backhoe

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-288 and 08-290 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

45

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, at backhoe valve inlet, attaches to P/N D136966 hose Ref. 22 in Figure 08-288, special parts used on standard or extendable dipper models with demountable backhoe, Incl. Ref. 46 in this figure

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-288 and 08-290 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

46

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow, special parts used on standard or extendable dipper models with demountable backhoe

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-288 and 08-290 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

47

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, at backhoe valve outlet, attaches to P/N D136968 hose Ref. 28 in Figure 08-290, special parts used on standard or extendable dipper models with demountable backhoe, Incl. Ref. 48

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-288 and 08-290 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

48

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter, special parts used on standard or extendable dipper models with demountable backhoe

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-288 and 08-290 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

Выбрано товаров: 28
