Запчасти Case 580K (08-276) - EQUIPMENT HYD. SYSTEM, EQUIP. PUMP TO REAR EQUIP. LINES - W/BACKHOE MODELS W/SPLIT FLANGE CLAMPS (08) - HYDRAULICS

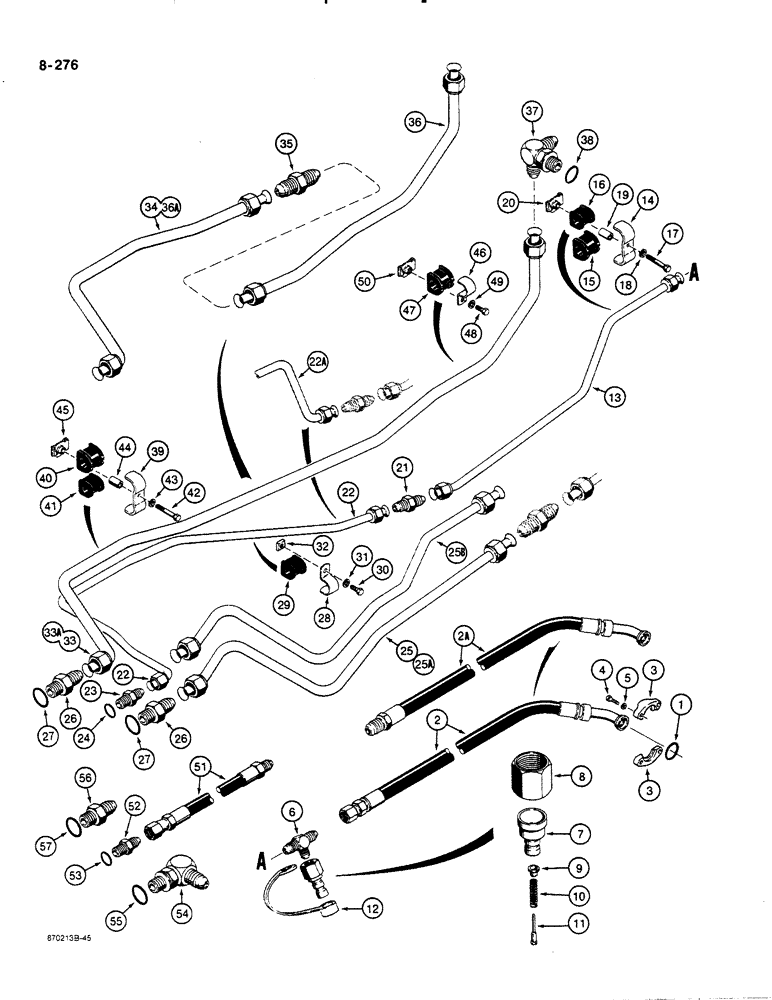

Схема запчастей Case 580K - (08-276) - EQUIPMENT HYD. SYSTEM, EQUIP. PUMP TO REAR EQUIP. LINES - W/BACKHOE MODELS W/SPLIT FLANGE CLAMPS (08) - HYDRAULICS
11
3
24
52
57
10
36a
25b
50
8
40
20
6
18
32
45
27
33a
28
21
46
1
7
38
22a
16
22
47
12
27
5
3
35
23
13
55
26
43
54
17
4
22
15
19
41
48
2
26
30
2a
44
51
25
39
49
36
33
42
25a
34
14
9
37
29
56
31
53

Артикул

Название

Примечание

Количество

1

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

3/4", small pump section outlet port

1шт.

2

D133649

HOSE ASSY.

HOSE, 17-23/32" (450 mm) long, small pump section outlet port, used with quick disconnect Ref. 6-12, no longer used, order P/N D140058 hose, Ref. 2A

1шт.

2a

D140058

HOSE,12.7mm ID x 520mm L, SAE 100R2

20-1/2" (520 mm) long, small pump section outlet port, used without quick disconnect coupling

1шт.

3

A16961

FLANGE

CLAMP split flange, at equipment pump small section outlet port

2шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

218-596

TEE,1 1/16"-12 37 Degree

male, pump outlet hose to tube, if used

1шт.

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Disconnect Assy quick, coupling, used with P/N D133649 hose, Ref. 2, if used, Includes Ref. 7 thru 11

1шт.

The mating female coupling for running check must be ordered from Service Tools, P/N 213165.

1шт.

7

NSS

NOT SOLD SEPARAT

BODY coupling

1шт.

8

129-132

NUT,1 1/4"-12, G5

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING coupling

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET coupling

1шт.

12

H434163

DUST CAP

CAP dust, coupling, if used

1шт.

13

D135437

TUBE

small pump section hose to backhoe swing section inlet tube

1шт.

14

D133675

CLAMP

double tube, small pump section tube to loader valve inlet tube

1шт.

15

D67297

BLOCK

INSULATOR, 1", for loader valve inlet tube

1шт.

16

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR, 3/4", small pump section backhoe tube

1шт.

17

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

tube clamp

1шт.

20

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

21

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR straight

1шт.

22

D135458

TUBE

to backhoe control valve swing section inlet, no longer used, order P/N D135606 tube, Ref. 22A

1шт.

See Figure 08-284 or 08-288 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

22a

D135606

TUBE

to backhoe control valve swing section inlet

1шт.

See Figure 08-284 or 08-288 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

23

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, Includes: Ref. 24

1шт.

See Figure 08-284 or 08-288 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

25

D139070

TUBE

to backhoe inlet section from loader valve power beyond tube Ref. 38 in Figure 08-274, if used.

1шт.

See Figure 08-284 or 08-288 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

25a

D141406

TUBE

to backhoe inlet section from loader valve power beyond hose Ref. 63 in Figure 08-274, no longer available, order P/N D142285 tube

1шт.

See Figure 08-284 or 08-288 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

25b

D142285

TUBE

to backhoe inlet section from loader valve power beyond hose Ref. 63 in Figure 08-274, if used

1шт.

See Figure 08-284 or 08-288 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

26

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, Incl. Ref. 27

2шт.

See Figure 08-284 or 08-288 for rear hydraulic tubes and hoses used on models without backhoe.

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

28

D74192

CLAMP

backhoe swing section inlet tube

1шт.

29

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR, 3/4", tube

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

1шт.

33

D138908

TUBE

backhoe return to filter, used on models with six spool backhoe valve, one piece tube no longer used, replace with two piece tube design , Ref. 34-36

1шт.

See Figure 08-284 for rear hydraulic tubes and hoses used on models without backhoe

1шт.

33a

D138914

TUBE

backhoe return to filter, used on models with seven spool backhoe valve and models with auxiliary hydraulics for optional rear hydraulic attachments, w/o demountable backhoe, one pc tube no longer used, replace w/two pc tube design, Ref. 35 thru 36A

1шт.

See Figure 08-284 for rear hydraulic tubes and hoses used on models without backhoe

1шт.

34

D135540

TUBE

from backhoe valve outlet section to return to filter tube, used with Ref. 35 and 36, replaces one piece tube on some six spool backhoe valve models

1шт.

See Figure 08-284 for rear hydraulic tubes and hoses used on models without backhoe

1шт.

35

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR straight

1шт.

See Figure 08-284 for rear hydraulic tubes and hoses used on models without backhoe

1шт.

36

D135443

TUBE

backhoe, Serial Range: return-filter

1шт.

See Figure 08-284 for rear hydraulic tubes and hoses used on models without backhoe

1шт.

36a

D135416

TUBE

from backhoe valve outlet section to return to filter tube, used with Ref. 35 and 36, replaces one piece tube on some seven spool backhoe valve models, without demountable backhoe

1шт.

See Figure 08-284 for rear hydraulic tubes and hoses used on models without backhoe

1шт.

37

D129566

ELBOW

FITTING elbow, special, three-way, at hydraulic oil filter, Includes: Ref. 38

1шт.

38

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

fitting

1шт.

39

D133675

CLAMP

double tube

1шт.

40

D67297

BLOCK

INSULATOR, 1", backhoe return tube

1шт.

41

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR, 3/4", backhoe swing section inlet tube

1шт.

42

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

44

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

clamp

1шт.

45

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

46

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1", return to filter tube

1шт.

47

D67297

BLOCK

INSULATOR tube

1шт.

48

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

49

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

50

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

51

D136967

HOSE

36-7/16" (925 mm) long, small pump pressure section tube to backhoe valve swing section, attaches to P/N D136963 tube, Ref. 22 in Figure 08-284

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-284 and 08-286 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

Special parts used on standard or extendable dipper models with demountable backhoe

1шт.

52

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, swing section, Includes: Ref. 53

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-284 and 08-286 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

Special parts used on standard or extendable dipper models with demountable backhoe

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-284 and 08-286 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

Special parts used on standard or extendable dipper models with demountable backhoe

1шт.

54

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, at backhoe valve inlet, attaches to P/N D136966 hose, Ref. 31 in Figure 08-286, Incl. Ref. 55 in this figure

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-284 and 08-286 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

Special parts used on standard or extendable dipper models with demountable backhoe

1шт.

55

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-284 and 08-286 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

Special parts used on standard or extendable dipper models with demountable backhoe

1шт.

56

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, at backhoe valve outlet, attaches to P/N D136968 hose, Ref. 37 in Figure 08-286, Incl. Ref. 57 in this figure

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-284 and 08-286 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

Special parts used on standard or extendable dipper models with demountable backhoe

1шт.

57

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

Demountable backhoe special parts attach to loader only hydraulic tubes and hoses. See Figures 08-284 and 08-286 for a continuation of the hydraulic lines, used on models with demountable backhoe

1шт.

Special parts used on standard or extendable dipper models with demountable backhoe

1шт.

Выбрано товаров: 92
