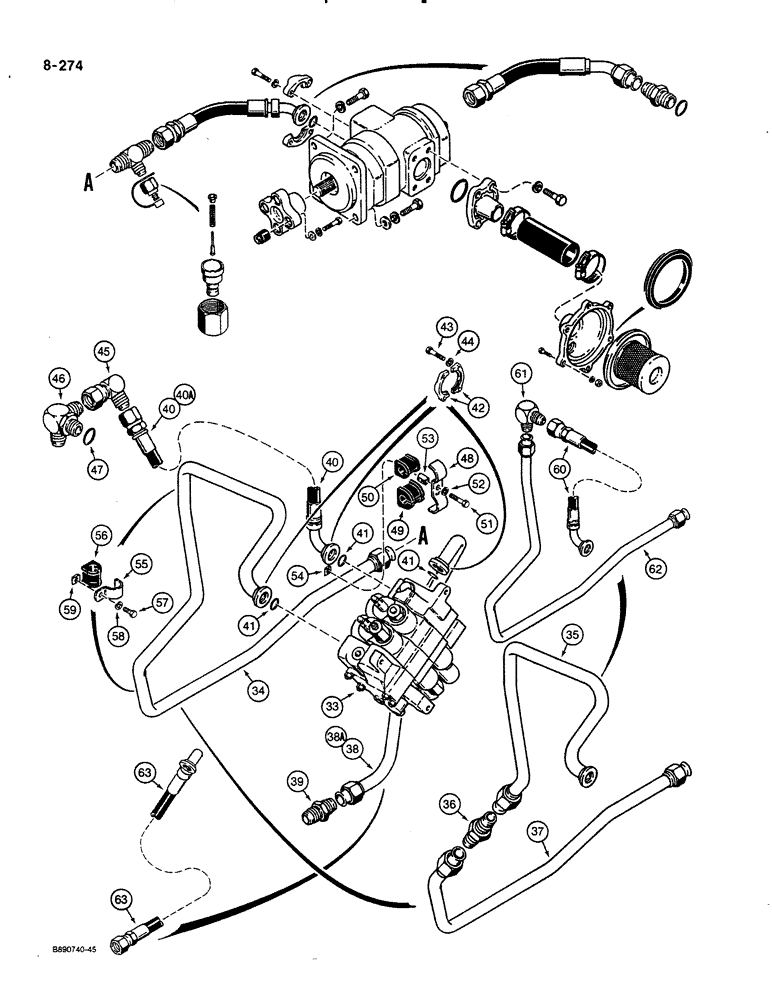

Запчасти Case 580K (08-274) - EQUIPMENT HYD. SYSTEM RESERVOIR TO LOADER CONTROL VALVE & LOADER VALVE TO FILTER & BACKHOE LINE (08) - HYDRAULICS

33

REF

INSTRUCTION

VALVE ASSEMBLY control, loader, for correct assembly and components see Figure 08-354 or 08-356

1шт.

34

D138904

TUBE

loader valve inlet, one piece tube no longer used, replace with two piece tube design Ref. 35-37 or hose and tube design Ref. 60-62

1шт.

35

D135439

TUBE

loader valve inlet, used with Ref. 36 and 37, replaces one piece tube on some models, if used

1шт.

36

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR straight, if used

1шт.

37

D135435

TUBE

pump outlet hose to loader valve inlet tube, if used

1шт.

38

D139074

TUBE

power beyond, loader valve outlet section to backhoe valve inlet tube, not used on models with clam bucket, see Ref. 38A for tube used on models with clam bucket, if used, also see Ref. 63 hose

1шт.

38a

D139072

TUBE

power beyond, loader valve outlet to backhoe inlet tube, used on models with three spool loader valve, if used, also see Ref. 63 hose

1шт.

39

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR straight

1шт.

40

D135245

HOSE

21-21/32" (550 mm) long, loader return, loader valve outlet to filter, no longer used, order P/N D140935 hose, Ref. 40A

1шт.

40a

D140935

HOSE,19.05mm ID x 440mm L

17-3/8" (440 mm) long, loader return, loader valve, Serial Range: outlet-filter

1шт.

41

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1", loader valve tubes and hose

3шт.

42

A12306

FLANGE

CLAMP split flange

6шт.

43

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

12шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

45

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

street, 90 degree, swivel, at hydraulic oil filter fitting

1шт.

46

D129566

ELBOW

FITTING elbow, special, three-way, at hydraulic oil filter, Includes: Ref. 47

1шт.

47

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

fitting

1шт.

48

D133675

CLAMP

double tube, loader valve inlet tube to small pump section backhoe tube

1шт.

49

D67297

BLOCK

INSULATOR, 1", loader valve inlet tube

1шт.

50

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR, 3/4", small pump section backhoe tube

1шт.

51

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

52

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

53

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

tube clamp

1шт.

54

D122307

NUT

NUT, U-type, 3/8"-16 NC

1шт.

55

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1", loader valve inlet tube

2шт.

56

D67297

BLOCK

INSULATOR tube

2шт.

57

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

58

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

59

D122307

NUT

NUT, U-type, 3/8"-16 NC

2шт.

60

D140935

HOSE,19.05mm ID x 440mm L

17-3/8" (440 mm) long, loader valve inlet, replaces one piece tube or two piece tube design on some models, if used

1шт.

61

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

90 degree, if used

1шт.

62

D141420

TUBE

pump outlet hose to loader valve inlet hose, if used

1шт.

63

D140935

HOSE,19.05mm ID x 440mm L

17-3/8" (440 mm) long, power beyond, loader valve outlet section to backhoe valve inlet tube, used with or without clam bucket, Replaces: Ref. 38 or 38A tube on some models

1шт.
