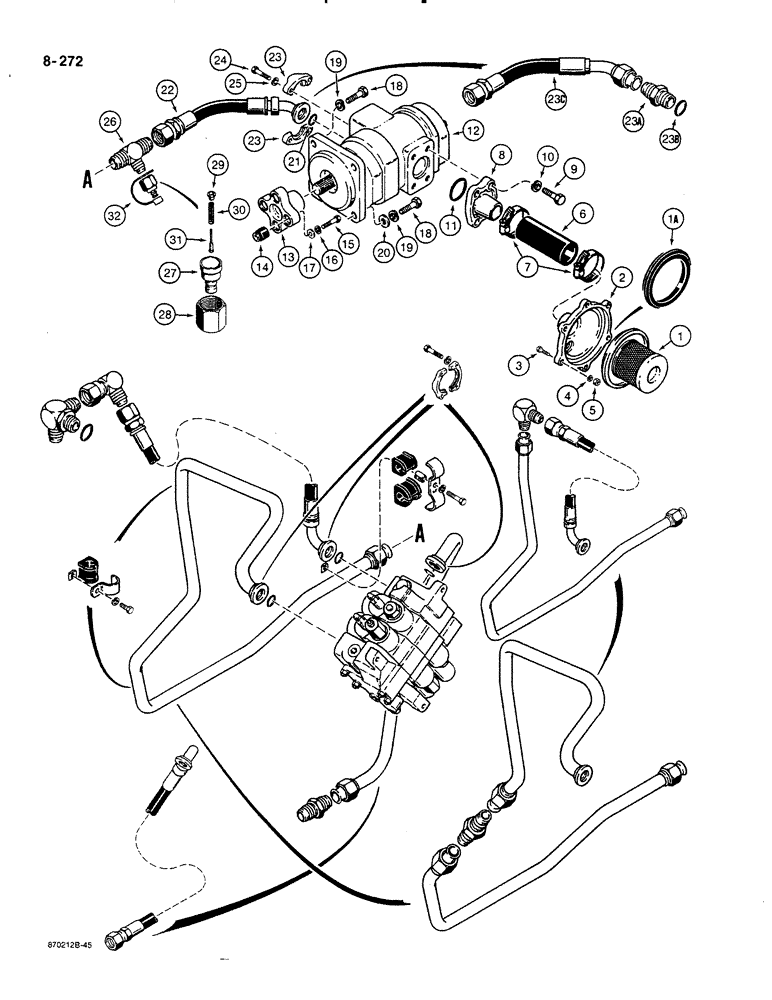

Запчасти Case 580K (08-272) - EQUIPMENT HYD. SYSTEM RESERVOIR TO LOADER CONTROL VALVE & LOADER VALVE TO FILTER & BACKHOE LINE (08) - HYDRAULICS

1

D127987

FILTER

SCREEN suction, Includes: Ref. 1A

1шт.

1a

D145356

SEAL,107.7mm ID x 125.48mm OD x 13.72mm Thk

SEAL suction screen

1шт.

2

D129581

FLANGE

reservoir, suction

1шт.

3

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

6

D129580

HOSE

1-1/2" (38 mm) ID x 2-1/8" (54 mm) OD x 5-1/8" (130 mm) long, equipment pump inlet

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

8

D137343

FLANGE

pump inlet, replaces adapter and split flange clamp on some models

1шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1-7/8", pump inlet flange

1шт.

12

REF

INSTRUCTION

PUMP ASSEMBLY hydraulic, equipment, for correct assembly and components see Figure 08-350

1шт.

D136083

COUPLING

flex, hydraulic pump, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

COUPLING pump

1шт.

14

N14330

BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L

coupling

4шт.

15

113-323

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

16

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

17

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

flat, plated, special

4шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20

D78732

WASHER

flat, 1/2", hardened, lower mounting bolts only

2шт.

21

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1", large pump section outlet port, used with P/N D135047 hose

1шт.

22

D135047

HOSE,19.05mm ID x 450mm L

17-23/32" (450 mm) long, large pump section outlet port to tee, used with Ref. 23 split flange clamps, if used

1шт.

23

A12306

FLANGE

CLAMP split flange, if used

2шт.

23a

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, large pump section outlet port, if used, Incl. Ref. 23B

1шт.

23b

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

23c

D140803

HOSE,19.05mm ID x 445mm L

17-17/32" (445 mm) long, used with Ref. 23A adapter, if used

1шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

If used Hex, 3/8"-16 x 1 1/2", G5

4шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

4шт.

26

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

male, pump outlet hose to loader valve inlet tube

1шт.

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Disconnect Assy quick, coupling, Includes Ref. 27 thru 31

1шт.

The mating female coupling for running check must be ordered from Service Tools, P/N 213165.

1шт.

27

NSS

NOT SOLD SEPARAT

BODY coupling

1шт.

28

129-132

NUT,1 1/4"-12, G5

1шт.

29

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING coupling

1шт.

31

NSS

NOT SOLD SEPARAT

POPPET coupling

1шт.

32

H434163

DUST CAP

CAP dust, coupling

1шт.
