(07-268) - PARKING BRAKE LEVER AND LINKAGE

Запчасти Case 580K (07-268) - PARKING BRAKE LEVER AND LINKAGE (07) - BRAKES

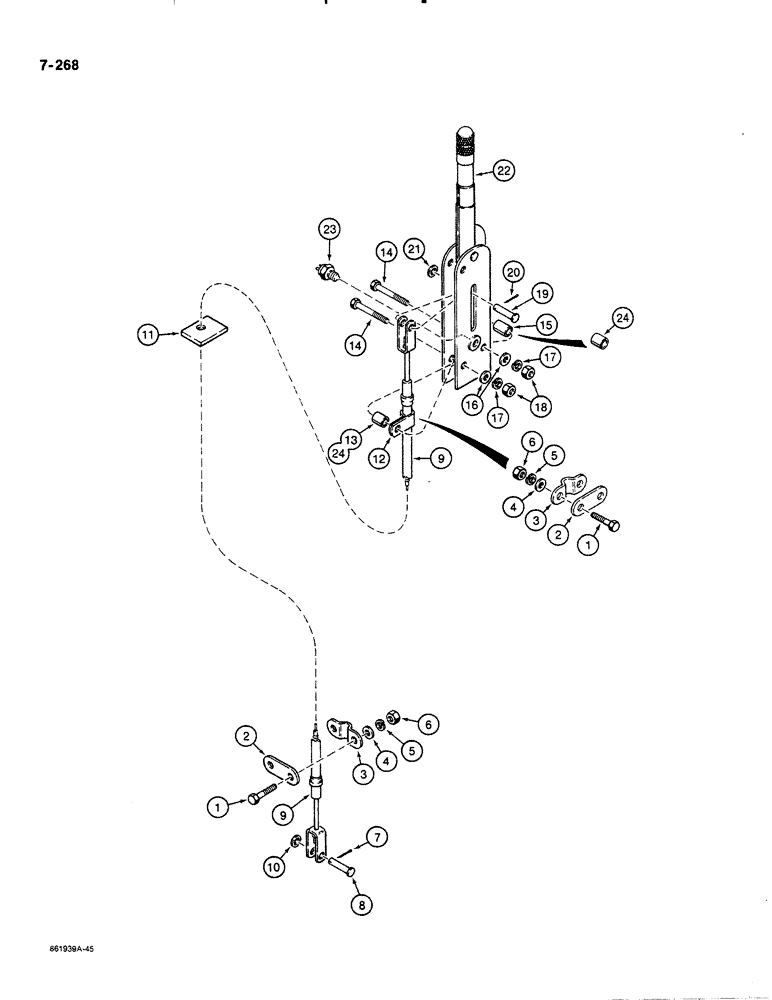

Схема запчастей Case 580K - (07-268) - PARKING BRAKE LEVER AND LINKAGE (07) - BRAKES
20
3
24
14
16
1
2
6
4
24
14
2
18
6
4
12
13
8
11
10
17
5
23
17
21
5
1
19
7
9
9
3
15
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

2

D129747

PLATE

oval spacer, plated

1-2шт.

3

D121608

CLAMP

cable to transaxle brake assembly bracket

1-2шт.

4

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

8

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

1шт.

9

D136510

CABLE

parking brake

1шт.

10

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

11

D138158

PAD

foam, floor plate

1шт.

12

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

parking brake cable, no longer used, order Ref. 2 and 3

1шт.

13

D76209

SPACER

parking brake lever, rear, used with Ref. 15 spacer, no longer used, order (2) P/N D122882 spacers, Ref. 24

1шт.

14

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

15

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

parking brake lever, front, used with Ref. 13 spacer, no longer used, order (2) P/N D122882 spacers, Ref. 24

1шт.

16

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.

D121555

LEVER ASSY.

LEVER ASSEMBLY parking brake, without bossed hole, for audible warning alarm parking brake switch, for service order P/N D139909 lever

1шт.

D139909

LEVER ASSY.

LEVER ASSEMBLY parking brake, with bossed hole for brake switch, Replaces: P/N D121555 lever for service, Includes: Ref. 19 thru 22

1шт.

19

D42458

PIN

clevis, lever to brake cable

1шт.

20

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

21

195-103

WASHER,5/16"

flat, , plated 5/16"

1шт.

22

NSS

NOT SOLD SEPARAT

LEVER parking brake

1шт.

23

D136514

SWITCH

parking brake, used on models with audible warning alarm

1шт.

See Figure 04-140 for other special parts used on models with audible warning alarm for water temperature, engine oil pressure, and parking brake.

1шт.

24

D122882

SPACER

parking brake lever, front and rear, Replaces: Ref. 13 and 15

2шт.
