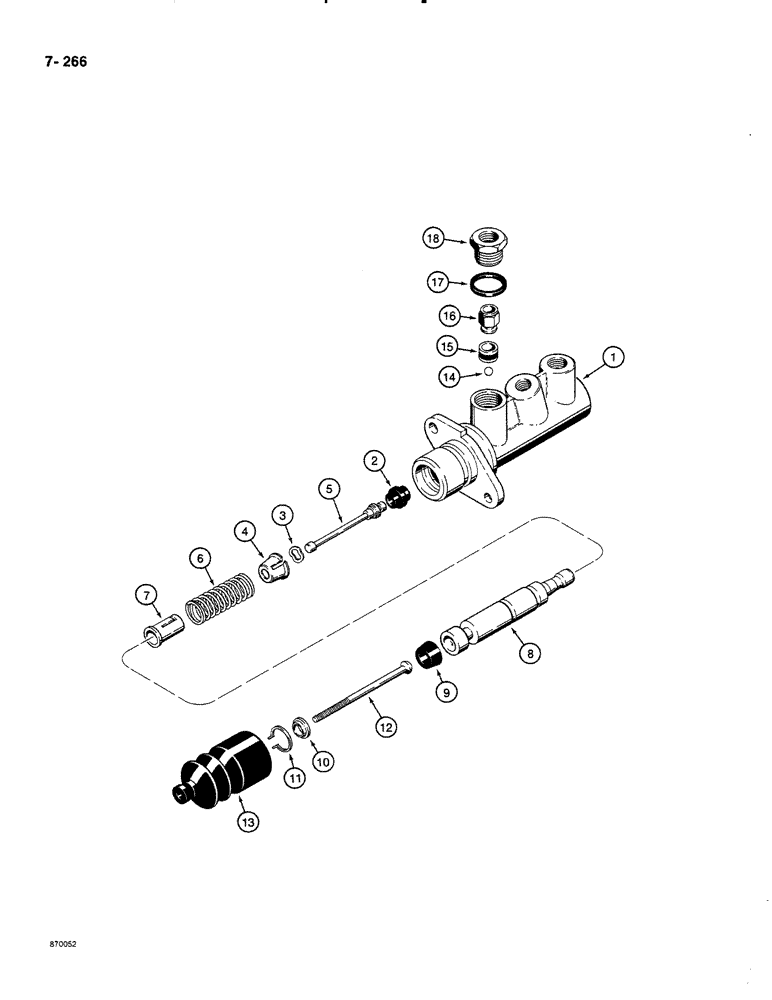

Запчасти Case 580K (07-266) - BRAKE MASTER CYLINDER (07) - BRAKES

D136837

MASTER CYLINDER

CYLINDER ASSEMBLY master, brake, no longer available, order P/N D141779 cylinder

2шт.

D141779

CYLINDER

ASSEMBLY master, brake, Includes: Ref. 1 thru 18

2шт.

1

NSS

NOT SOLD SEPARAT

BODY master cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL plunger

1шт.

Part of Seal Service Kit P/N N14254

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER special

1шт.

Part of Seal Service Kit P/N N14254

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT spring, short

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER piston

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING return

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT spring, long

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON master cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Service Kit P/N N14254

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER seal, special

1шт.

11

NSS

NOT SOLD SEPARAT

RING retaining, washer

1шт.

Part of Seal Service Kit P/N N14254

1шт.

12

NSS

NOT SOLD SEPARAT

ROD push

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT push rod

1шт.

Part of Seal Service Kit P/N N14254

1шт.

14

NSS

NOT SOLD SEPARAT

BALL flow valve

1шт.

Part of Seal Service Kit P/N N14254

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL flow valve

1шт.

Part of Seal Service Kit P/N N14254

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE flow

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET flow valve

1шт.

Part of Seal Service Kit P/N N14254

1шт.

18

NSS

NOT SOLD SEPARAT

ADAPTER flow valve

1шт.

N14254

KIT

service, seal, Includes: Ref. 2, 3, 9, 11, 13, 14, 15 and 17

1шт.

Seal service Kit P/N N14254's vendor No. is MIN46. For this to work the bore must be 7/8". If the bore is 1" the vendor No. is MIM47 and uses mineral oil and we do not have a Case cross reference part number.

1шт.
