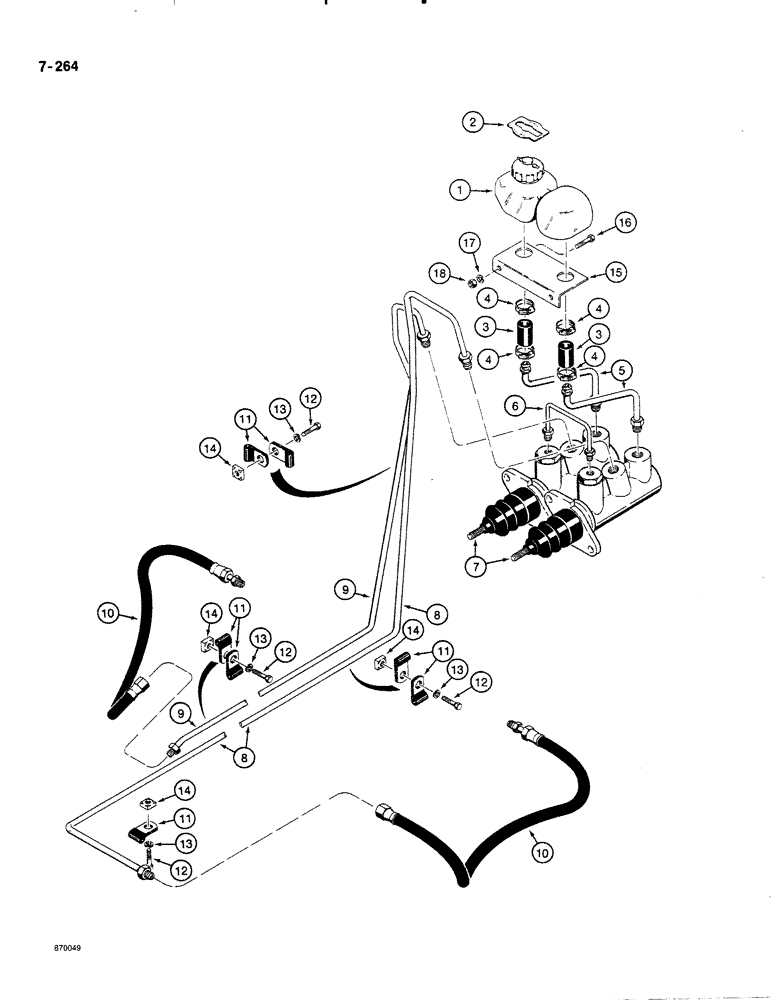

Запчасти Case 580K (07-264) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT (07) - BRAKES

E46719

RESERVOIR

ASSEMBLY brake master cylinder, Includes: Ref. 1 and 2

1шт.

1

E44082

RESERVOIR

brake master cylinder, includes cap, Replaced by K262942

1шт.

1

K262942

RESERVOIR

1шт.

2

E44062

TAG

reservoir fluid identification

1шт.

3

E44083

HOSE

1/2" (13 mm) ID x 1-3/16" (30 mm) long, Serial Range: Reservoir-tube

2шт.

4

D140877

HOSE CLAMP,#6, 0.44/0.78 Type M Worm

CLAMP worm screw, includes hardware, reservoir hose

4шт.

5

D136854

TUBE

reservoir to master cylinder

2шт.

6

D136430

TUBE

crossover

1шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY master, brake, see Figure 07-266

2шт.

8

D139608

TUBE

brake, right-hand

1шт.

9

D139606

TUBE

brake, left-hand

1шт.

10

D136476

HOSE ASSY.,6.35mm ID x 438mm L

HOSE, 17-3/4" (450 mm) long, brake tube to transaxle brake actuator

2шт.

11

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

7шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

14

25-225

SQUARE NUT,Sq, 5/16"-24

square, 5/16"-18 NC

4шт.

15

D135229

BRACKET

brake reservoir support, Serial Range: attaches-firewall

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.
