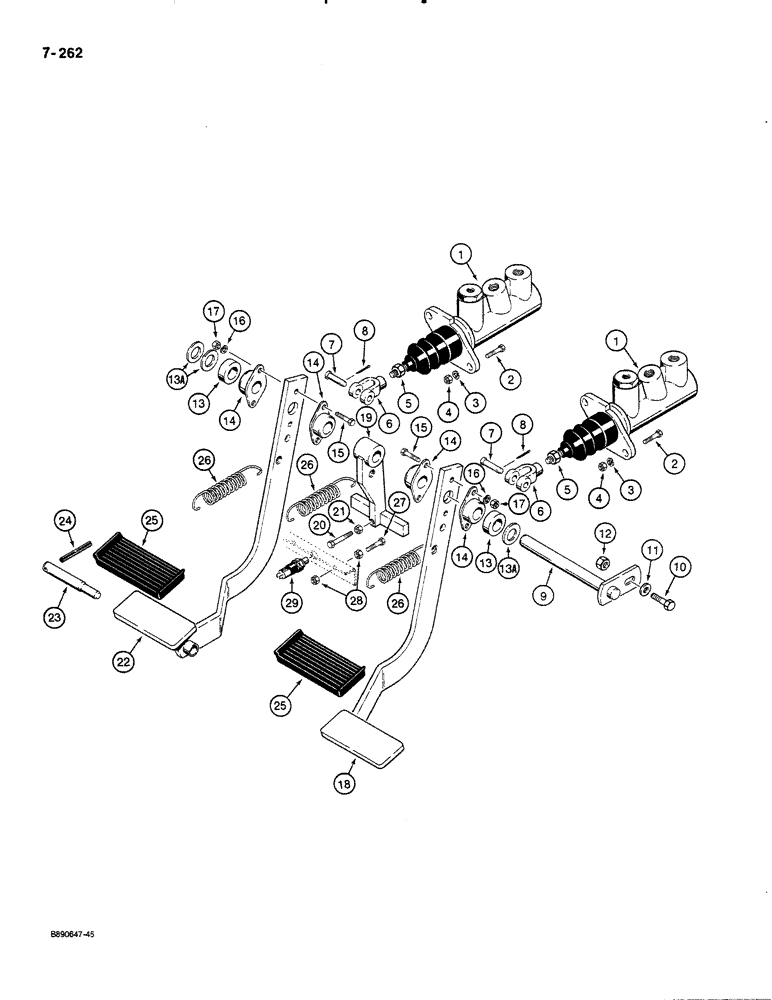

Запчасти Case 580K (07-262) - BRAKE PEDALS AND BRAKE MASTER CYLINDER MOUNTING (07) - BRAKES

1

REF

INSTRUCTION

CYLINDER ASSEMBLY master, brake, see Figure 07-266

2шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

4

9635082

NUT,5/16" - 18, Gr 5

4шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex, jam, 3/8"-24 NF, plated

2шт.

6

D137077

CLEVIS

female, master cylinder

2шт.

7

L26209

PIN,11.07mm OD x 39.75mm L

clevis, 3/8"

2шт.

8

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

9

D140035

SHAFT,180mm L

Brake pedal

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

11

195-525

WASHER,3/8", SAE

flat, 3/8", plated

1шт.

12

131-217

LOCK NUT

NUT light hex, self-locking, 3/8"-16 NC, plated

1шт.

13

D124529

SPACER,19.5mm ID x 35mm OD x 12mm Thk

pedal

2шт.

13a

195-2191

WASHER,13/16" x 1 1/2" x .067", HDN

flat, 3/4" bolt size, 13/16" ID x 1-1/2" OD x 1/16" thick, plated, used as a shim

1шт.

14

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

brake pedal

4шт.

15

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

17

9635082

NUT,5/16" - 18, Gr 5

4шт.

18

D124521

PEDAL

brake, right-hand

1шт.

19

D124528

LEVER

brake lamp

1шт.

20

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Brake switch actuator Hex, 5/16"-18 x 2", G5

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

1шт.

22

D124522

PEDAL

brake, left-hand

1шт.

23

D124530

PIN,15.85mm OD x 111mm L

pedal lock

1шт.

24

138-328

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

1шт.

25

F9197

PAD

COVER pedal, rubber

2шт.

26

D120911

SPRING

pedal and lever return, attaches to brake pedal spring rod in firewall frame

3шт.

27

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Attaches to brake pedal stop bar in firewall frame Hex, 5/16"-18 x 1 1/4", G5

2шт.

28

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

29

D128886

SWITCH

brake lamp, attaches to front console wiring harness, mounts in brake pedal stop bar in firewall frome

1шт.
