Запчасти Case 580K (02-012) - RADIATOR, FAN, AND MOUNTING PARTS (02) - ENGINE

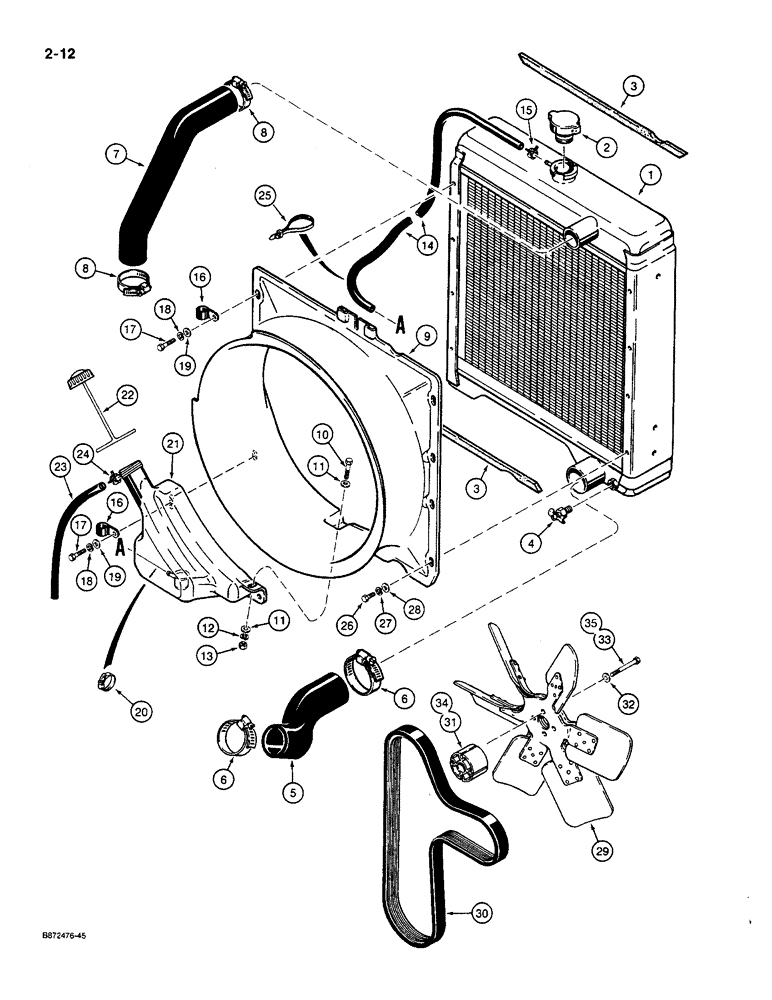

Схема запчастей Case 580K - (02-012) - RADIATOR, FAN, AND MOUNTING PARTS (02) - ENGINE
11
17
24
26
20
8
29
7
18
15
10
2
4
3
21
32
9
16
19
5
6
27
23
22
34
19
28
18
25
17
16
33
3
13
12
30
31
1
35
6
11
8
14

Артикул

Название

Примечание

Количество

1

A172038

RADIATOR

engine cooling

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

A173165

SEALING STRIP

radiator, upper and lower

2шт.

4

217-92

COCK

VALVE drain

1шт.

5

D127775

RADIATOR HOSE,58.00 mm ID x 225.00 mm, SAE 20R4 Class C

58.00 mm ID x 225.00 mm, SAE 20R4 - Class C, Lower

1шт.

6

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP hose, lower radiator

2шт.

7

D127774

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4 Class C

- Upper 45.00 mm ID x 265.00 mm, SAE 20R4 Class C

1шт.

8

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP hose, upper radiator

2шт.

9

A173459

SHROUD

radiator fan

1шт.

10

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex head, plated, 8 mm -1.25 x 30 mm, 8.8

1шт.

11

195-103

WASHER,5/16"

flat, plated, 5/16"

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

13

825-1108

NUT,Hex, M8, Cl 8

hex, plated, 8 mm-1.25

1шт.

14

A171019

HOSE,7.5mm ID x 900mm L, SAE 30R6

- Radiator to reservoir 7.50 mm ID, 8.30 mm ID x 900.00 mm, SAE J30

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP hose, at upper radiator

1шт.

16

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type, attaches to radiator fan shroud, harness, if used

2шт.

17

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex head, plated, 8 mm-1.25 x 30 mm, 8.8

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

195-103

WASHER,5/16"

flat, plated, 5/16"

2шт.

20

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP hose, lower, at reservoir

1шт.

21

A171805

RESERVOIR

coolant recovery bottle

1шт.

22

A184079

CAP

screw-on, tethered, coolant recovery bottle

1шт.

23

A172262

HOSE,7.50 mm ID, 8.30 mm ID x 310.00 mm, SAE 30R6 per J30

- Coolant overflow, Cut from P/N A172261 bulk hose, See below 7.50 mm ID, 8.30 mm ID x 310.00 mm, SAE 30R6 per J30

1шт.

24

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP coolant overflow hose at reservoir

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, hose, 15"

1шт.

26

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex head, plated, 8 mm-1.25 x 16 mm, 8.8

6шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

28

195-103

WASHER,5/16"

flat, plated, 5/16"

6шт.

29

A173545

FAN

suction, six blade

1шт.

30

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan 3.56 mm W x 1574.80 mm L, 8 Ribs

1шт.

31

A173332

SPACER

fan, used with P/N 827-10100 bolt, Ref. 33, if used

1шт.

32

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, plated, 3/8"

4шт.

33

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

Hex, plated, 10 mm-1.5 x 100 mm, 10.9, Used with P/N A173332 spacer, Ref. 31, if used

4шт.

34

A184545

SPACER

fan, used with P/N 814-10070 bolt, Ref. 35, if used

1шт.

35

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex head, plated, 10 mm-1.5 x 70 mm, 8.8, used with P/N A184545 spacer, Ref. 34, if used

4шт.

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Bulk 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.

Выбрано товаров: 36
