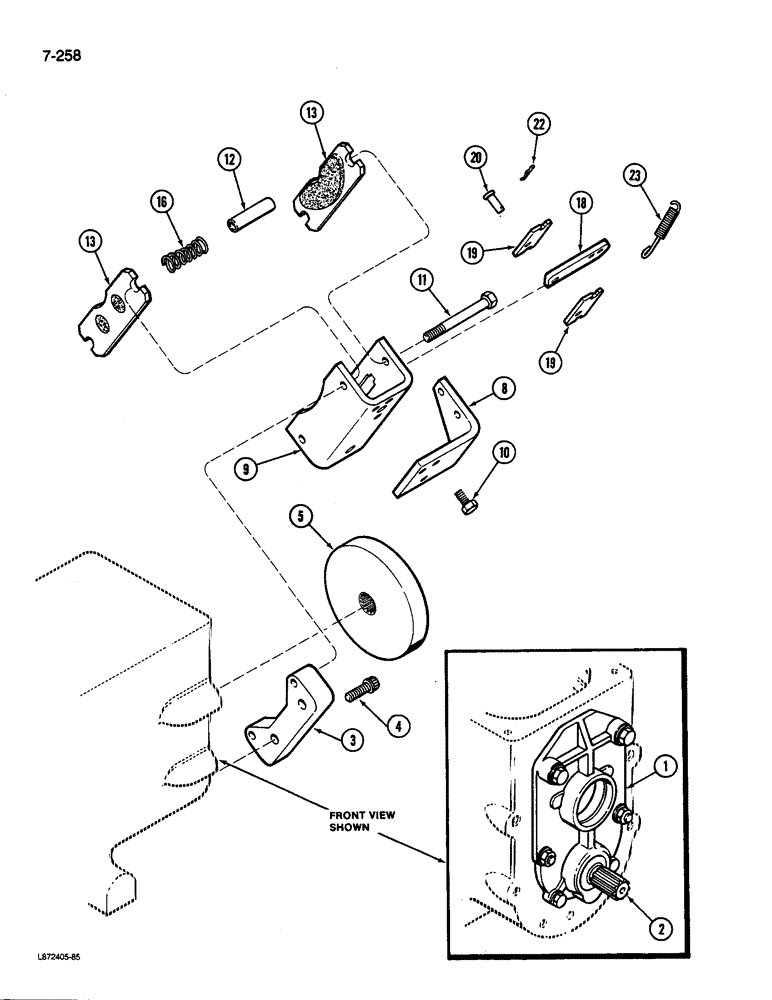

Запчасти Case 580K (07-258) - TRANSAXLE PARK BRAKE, TWO WHEEL DRIVE (07) - BRAKES

1

REF

INSTRUCTION

COVER front, transmission, see Figure 06-230

1шт.

2

REF

INSTRUCTION

SHAFT counter, see Figure 06-238

1шт.

3

A179065

LARGE PLATE

PLATE mounting, brake

1шт.

4

A166-87

BOLT, 12 point flanged head, 1/2" NC x 1-1/2"

2шт.

5

A168790

DISC

brake, caliper

1шт.

A182779

BRAKE

ASSEMBLY park, Includes: Ref. 8 thru 23

1шт.

8

A52380

BRACKET

mounting, cable

1шт.

9

A52256

HOUSING

brake

1шт.

10

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

3шт.

11

A52263

BOLT

retaining, brake

2шт.

12

A52261

SPACER

stator

2шт.

13

A182740

BRAKE PAD

PAD brake

2шт.

16

A52262

SPRING

compression

2шт.

18

A52379

LEVER

actuating

1шт.

19

A52257

PIVOT

PLATE pivot

1шт.

20

A52259

PIN

clevis, pivot

1шт.

22

A52260

PIN

retainer, pivot pin

1шт.

23

A52264

SPRING

extension

1шт.
