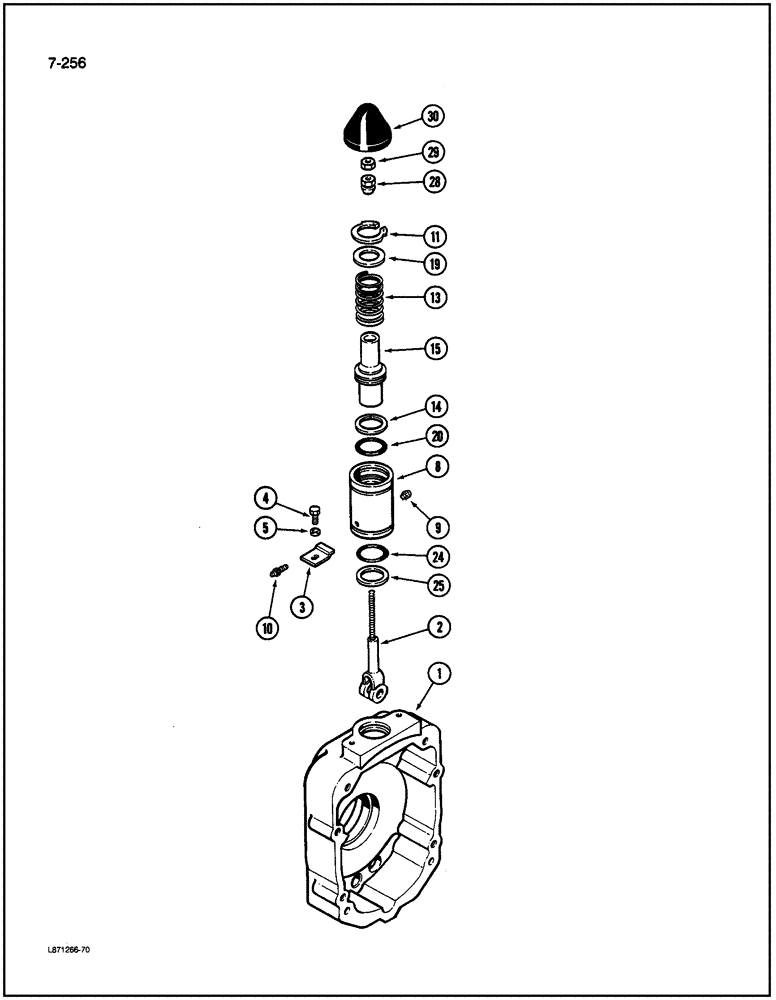

Запчасти Case 580K (07-256) - TRANSAXLE DIFFERENTIAL BRAKE ACTUATOR (07) - BRAKES

1

REF

INSTRUCTION

HOUSING brake, see Figure 07-254

2шт.

2

A168817

STEM

ROD pull, brake actuating

2шт.

3

A168909

LARGE PLATE

PLATE clamp, actuator

4шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

Right side has one breather bolt and one hex bolt. Left side has two breather bolts.

1шт.

5

195-25

WASHER,3/8"

flat, 13/32" x 13/16" x 1/16"

4шт.

A168974

ACTUATOR

ASSEMBLY brake, Includes: Ref. 8 thru 25

2шт.

A168974R

REMAN-BRAKE ASSY.

580K

2шт.

A168974C

CORE

Return Number

1шт.

8

A52266

HOUSING

piston

1шт.

9

S114301

INSERT

seat

1шт.

10

S114300

BLEEDER,3/8" - 24 x 1.17"

SCREW bleed

1шт.

11

A52276

RETAINER

RING retainer

1шт.

13

A52272

SPRING

piston

1шт.

14

A52271

SEALING RING

RING backup, piston

1шт.

Part of Repair Kit P/N A52277

1шт.

15

A52267

PISTON

actuator

1шт.

A52277

PACKAGE

KIT repair, piston, Includes: Ref. 19 thru 25

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER flat, 2" OD

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING piston, 1-1/2" ID

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING housing, 1-5/8 " OD

1шт.

25

NSS

NOT SOLD SEPARAT

RING back up

1шт.

28

A157951

NUT

hex, pull rod

2шт.

29

25-157

JAM NUT,Jam, 7/16"-20, G5

hex jam, 7/16" NF

2шт.

30

A179594

BOOT

SEAL dust

2шт.
