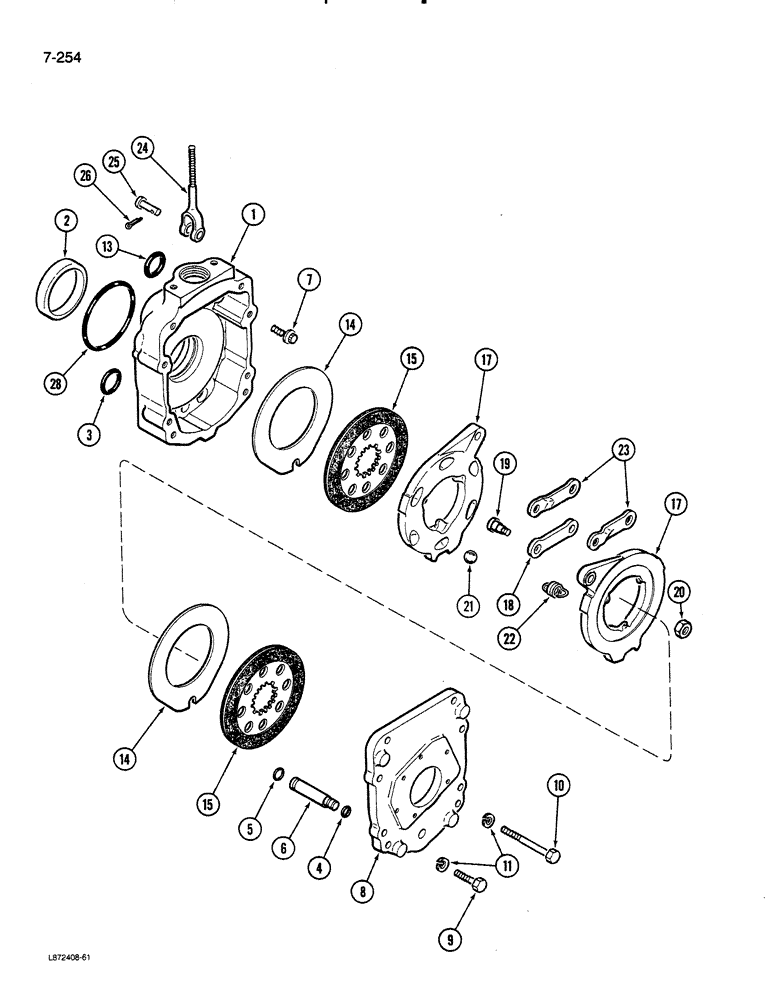

Запчасти Case 580K (07-254) - TRANSAXLE DIFFERENTIAL BRAKE HOUSING AND BRAKE (07) - BRAKES

1

A179911

HOUSING

brake

2шт.

2

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP bearing, 4-7/16" OD

1шт.

3

A179567

OIL SEAL

oil, lower

4шт.

4

A182413

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

anchor pin, 5/8" ID

2шт.

5

A64436

O-RING,0.549" ID x 0.755" OD

anchor pin, 3/4" ID

2шт.

6

A182414

AXLE PIN

PIN spring anchor

2шт.

7

A156878

12 PT SCREW

BOLT, 12 point head, housing

4шт.

8

A179912

COVER

brake housing, right

1шт.

8

A179944

COVER

brake housing, left, right shown

1шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

10

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

4шт.

11

92-8

LOCK WASHER,1/2"

16шт.

13

A179568

OIL SEAL

oil, upper

4шт.

A179938

BRAKE

ASSEMBLY disc, Includes: Ref. 14 thru 23

2шт.

P/N A179938 subs to P/N 1342286C1

1шт.

14

A52252

DISC

brake, stationary

4шт.

15

A52253

DISC

ASSEMBLY brake, rotating

5шт.

P/N A52253 subs to P/N 1342285C1

1шт.

A52251

DISC

ASSEMBLY brake, actuating, Includes: Ref. 17 thru 23

2шт.

17

A52278

DISC

brake, actuating

2шт.

18

A41861

LINK

actuating, plain

2шт.

19

A52254

STEP BOLT

BOLT actuating, disc

2шт.

20

129-165

JAM NUT,Jam, 1/2"-20, G5

2шт.

21

211-19

BALL,7/8" Dia

actuating, meter 7/8" Dia

6шт.

22

A30897

SPRING

disc tension

3шт.

23

A48952

LINK

actuating, offset

2шт.

24

A168817

STEM

ROD pull, brake actuating

2шт.

25

L13129

CLEVIS PIN,15.77mm OD x 41.15mm L

PIN clevis rod to brake links

2шт.

26

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

28

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

housing

2шт.
