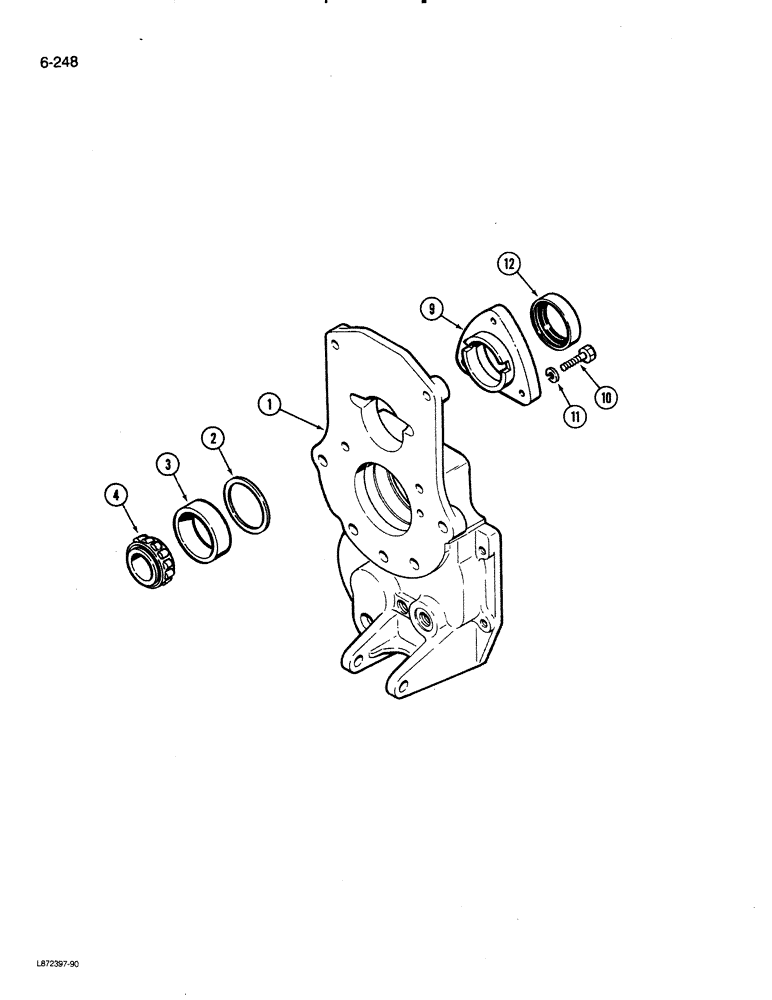

Запчасти Case 580K (06-248) - TRANSAXLE MAINSHAFT ADJUSTING COVER, 4 WHEEL DRIVE (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING transfer gearbox, see Figure 06-246

1шт.

2

G10341

SHIM,.005" Thk

Main shaft front bearing .005" Thk

1шт.

2

G10340

SHIM,.007" Thk

Mainshaft front bearing .007" Thk

1шт.

2

A51527

SHIM,.035" Thk

Main shaft front bearing .035" Thk

1шт.

3

H753574

BEARING CUP

CUP mainshaft bearing, front

1шт.

4

H753566

ROLLER BEARING

CONE mainshaft bearing, front

1шт.

9

A156606

BEARING COVER,2.624" ID x 0.69"

COVER mainshaft bearing adjusting

1шт.

10

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

A154253

OIL SEAL

mainshaft

1шт.
