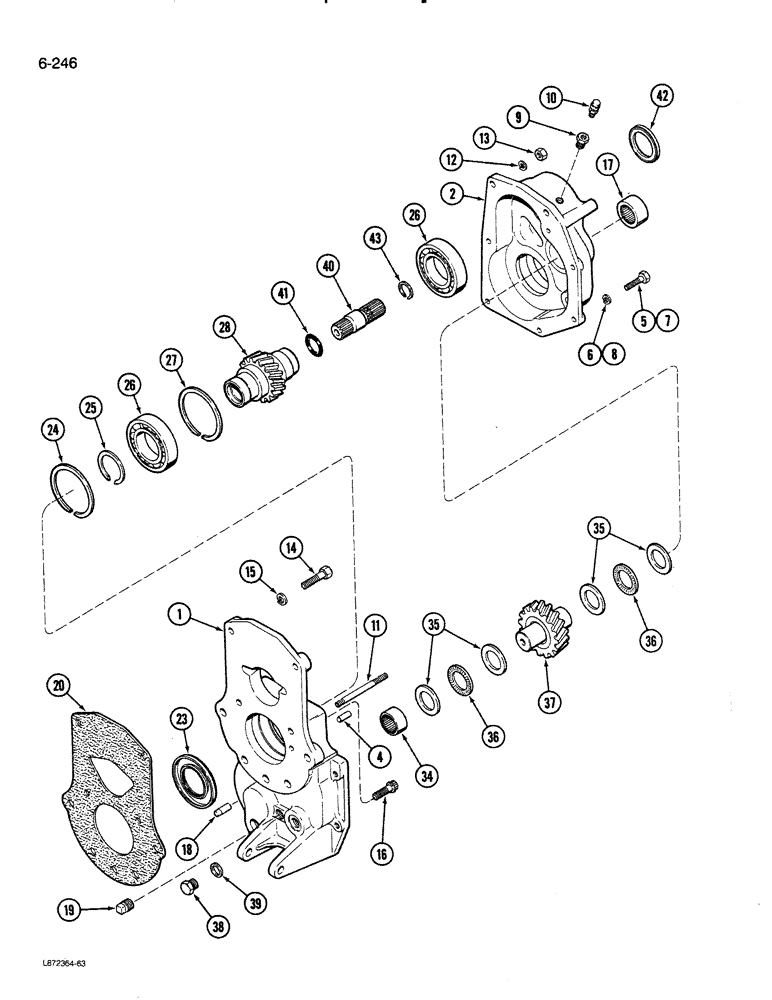

Запчасти Case 580K (06-246) - TRANSAXLE TRANSFER GEAR BOX, 4 WHEEL DRIVE (06) - POWER TRAIN

A168942

HOUSING

ASSEMBLY transfer gearbox, matched set, Includes: Ref. 1 thru 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING transfer gearbox, order P/N A168942

1шт.

2

NSS

NOT SOLD SEPARAT

COVER transfer gearbox, order P/N A168942

1шт.

4

A55459

PIN

dowel, Serial Range: cover-housing

2шт.

5

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

hex, 3/8" NC x 1-1/2", grade 8

3шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

hex, 3/8" NC x 1-1/2", grade 8

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING breather

1шт.

10

A12928

BREATHER

transfer gearbox

1шт.

11

A153248

STUD

transfer gearbox mounting, 4-13/16"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

4шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

12 point head, 1/2" NC x 1-1/2"

2шт.

17

A156286

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 25.4mm W

BEARING idler gear, front

1шт.

18

A29540

PIN

dowl, transmission housing

1шт.

19

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG square head, 1/2" PT

1шт.

20

A182720

GASKET

transmission housing to transfer gearbox

1шт.

23

A157228

OIL SEAL

input gear oil

1шт.

24

A31234

RING

bearing to gearbox retaining

1шт.

25

CASA27117

RING, SNAP

RING retaining, 0.096"

1шт.

25

A27118

RING, SNAP

RING retaining, 0.0975"

1шт.

25

A27119

RING, SNAP

RING retaining, 0.099"

1шт.

25

A27116

SNAP RING

RING retaining, 0.109"

1шт.

26

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING input gear

2шт.

27

A31234

RING

bearing to gearbox retaining

1шт.

28

A179007

PINION

GEAR input, 14 teeth

1шт.

34

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

BEARING idler gear rear

1шт.

35

A54031

WASHER,38.15mm ID x 55.3mm OD x 2.41mm Thk

idler gear thrust

4шт.

36

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING idler gear thrust

2шт.

37

A156256

GEAR

idler, 17 teeth

1шт.

38

A140222

PLUG

transfer gearbox, drain

1шт.

39

A58608

GASKET

drain plug

1шт.

40

A179006

SHAFT

SPLINE stub

1шт.

41

A179155

O-RING,1.171" ID x 1.449" OD x 0.139"

sealing

1шт.

42

A179071

OIL SEAL

oil

1шт.

43

A140169

SNAP RING,#106, 1.000", Ext

RING snap

1шт.
