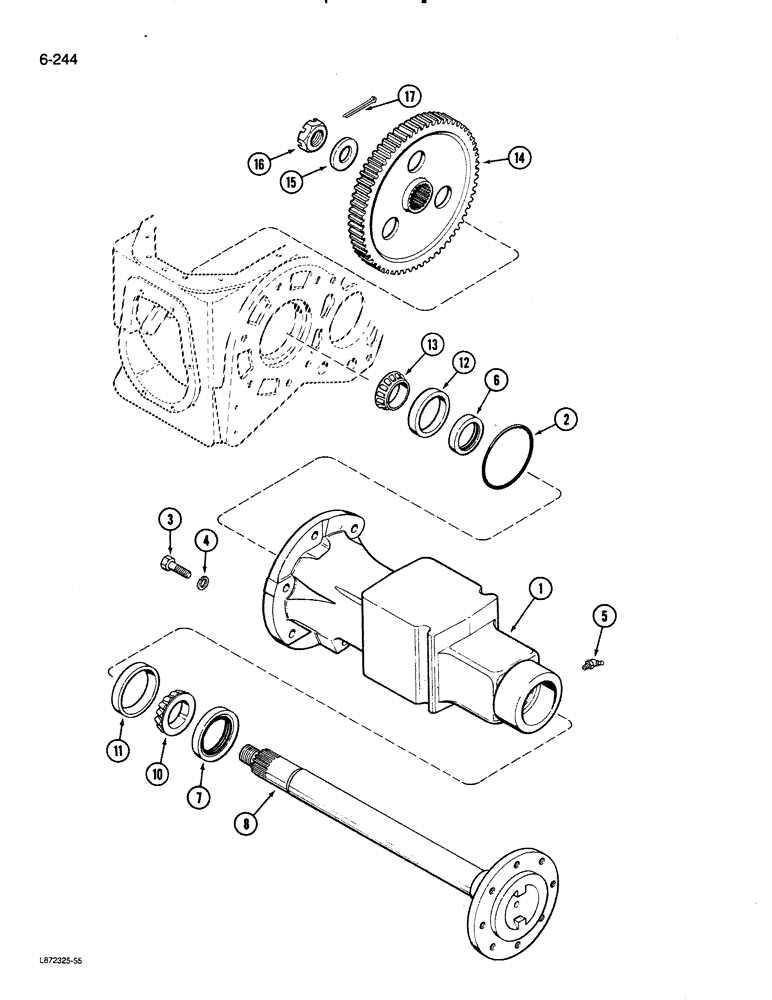

Запчасти Case 580K (06-244) - TRANSAXLE REAR AXLE (06) - POWER TRAIN

1

A182751

HOUSING

axle, right

1шт.

1

A182752

HOUSING

axle, left. right shown

1шт.

2

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

axle housing transmission case

2шт.

3

166-137

12 PT SCREW,Flg, 3/4" - 10 x 2 3/4", Gr 8

BOLT hex flange, 3/4" NC x 2-3/4"

2шт.

3

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

hex, 3/4" NC x 2-1/2", grade 8

2шт.

P/N 26-1240 subs to P/N 426-1240

1шт.

3

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

hex, 3/4" NC x 2-3/4", grade 8

4шт.

P/N 26-1244 subs to P/N 326-1244

1шт.

3

26-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

hex, 3/4" NC x 4-1/2", grade 8

2шт.

P/N 26-1272 subs to P/N 326-1272

1шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

P/N 92-12 subs to P/N 492-11075

1шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 45 degrees, 1/8" PT

2шт.

6

G13801

OIL SEAL

oil, inner, 2-1/4" ID

2шт.

7

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

oil, outer , 3" ID

2шт.

8

A154936

SHAFT

rear axle

2шт.

10

G15207

ROLLER BEARING

CONE bearing, outer, 2-5/8" ID

2шт.

11

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP bearing, outer, 4-11/32" OD

2шт.

12

G10415

BEARING CUP

CUP bearing, inner, 3-15/16" OD

2шт.

13

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE bearing, inner, 2-1/4" ID

2шт.

14

A154940

PINION

GEAR final drive, bull gear, 64 external and 35 internal teeth

2шт.

15

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

take-up

2шт.

16

A30075

WHEEL NUT

hex slotted, 1/2" NF

1шт.

17

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.
