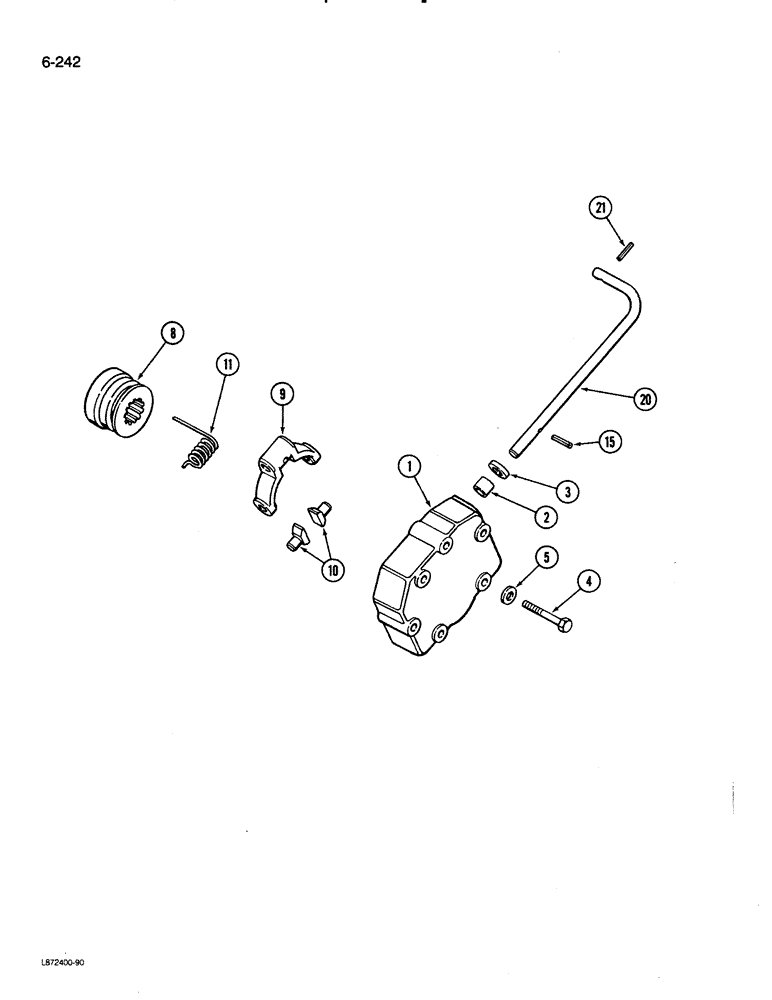

Запчасти Case 580K (06-242) - TRANSAXLE DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A168525

COVER ASSY

COVER ASSEMBLY lock, on right brake housing, Includes: Ref. 2 and 3

1шт.

2

B15768

BUSHING

cover

1шт.

3

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

oil

1шт.

4

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

5

195-103

WASHER,5/16"

flat, 3/8" x 7/8" x 5/64"

6шт.

8

A156373

COLLAR

differential lock

1шт.

9

A168524

LEVER

collar throw-out

1шт.

10

A38750

FINGER

S, Serial Range: lever-collar

2шт.

11

A156559

SPRING

throw-out lever

1шт.

15

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

20

A157734

SHAFT

actuating

1шт.

21

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.
