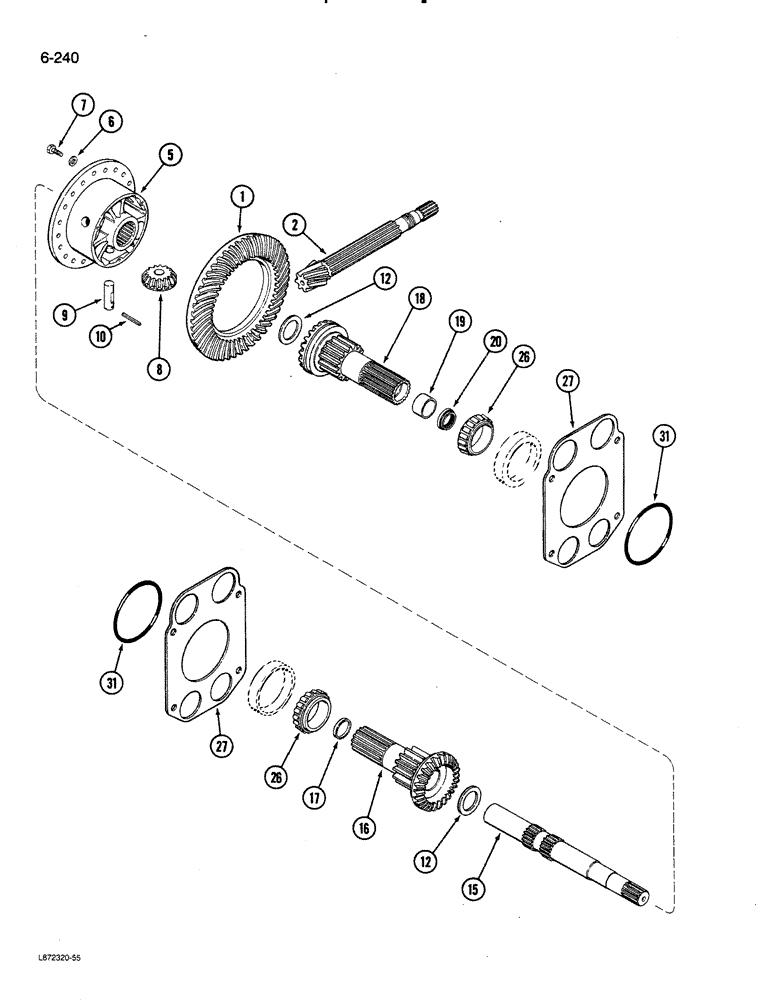

Запчасти Case 580K (06-240) - TRANSAXLE DIFFERENTIAL (06) - POWER TRAIN

A168883

GEAR, BEVEL

GEAR and PINION ring, differential, matched set, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

2

NSS

NOT SOLD SEPARAT

PINION bevel

1шт.

5

A179986

HUB

WHEEL center

1шт.

6

A155847

WASHER

wheel bolt

20шт.

7

28-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

BOLT hex, 3/8" NF x 7/8"

20шт.

8

A179762

PINION

GEAR pinion

3шт.

9

A153711

PIN,22.16mm OD x 62.74mm L

pinion gear

3шт.

10

A140705

PIN

groove, 3/16" x 2"

3шт.

12

A154141

WASHER

thrust, center wheel, 0.079"

1шт.

12

A153717

WASHER

thrust, center wheel, 0.084"

1шт.

12

A153712

WASHER

thrust, center wheel, 0.089"

1шт.

12

A153713

WASHER

thrust, center wheel, 0.094"

1шт.

12

A153714

WASHER

thrust, center wheel, 0.099"

1шт.

12

A153715

WASHER

thrust, center wheel, 0.104"

1шт.

12

A153716

WASHER

thrust, center wheel, 0.109"

1шт.

15

A156376

SHAFT

cross

1шт.

16

A182286

GEAR

side, left, Includes: Ref. 17

1шт.

P/N A182286 subs to P/N 1342925C1

1шт.

17

41-1028

PLUG,Cup, 1 3/4"

expansion, 1-3/4"

1шт.

Is not needed with wet brakes, see quality comment on P/N A182286

1шт.

18

A182283

GEAR

ASSEMBLY side, right, Includes: Ref. 19

1шт.

P/N A182283 subs to P/N 1342927C1

1шт.

19

A153719

BUSHING,38.16mm ID x 44.55mm OD x 20.65mm L

Gear

1шт.

20

A179053

OIL SEAL

oil, right hand side gear

2шт.

Is not needed with wet brakes, see quality comment on P/N A182286

1шт.

26

A7891

ROLLER BEARING

CONE bearing, 2-1/2" ID

2шт.

27

A179076

SHIM,.007" Thk

Bearing carrier .007" Thk

1шт.

The phantomed part shown between Ref. 26 and Ref. 27 is the bearing cup shown in Figure 07-254, Ref. 2, P/N A7890.

1шт.

27

A179075

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

27

A179077

SHIM

bearing carrier, 0.010"

1шт.

31

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

housing

2шт.
