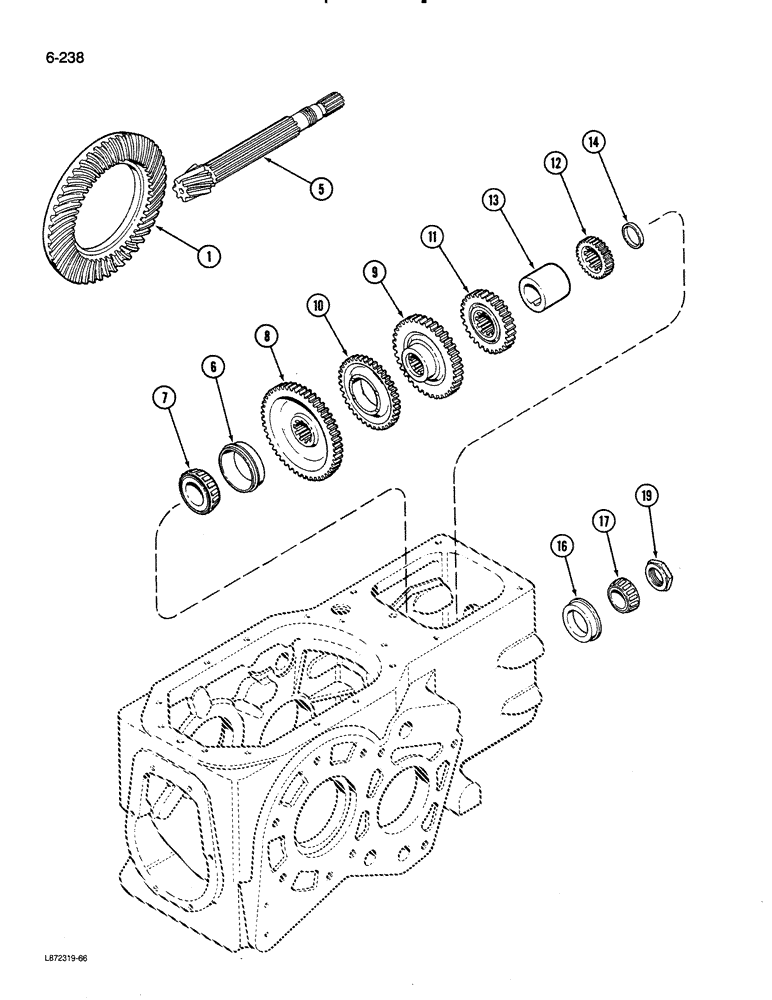

Запчасти Case 580K (06-238) - TRANSAXLE COUNTERSHAFT, 2 AND 4 WHEEL DRIVE (06) - POWER TRAIN

A168883

GEAR, BEVEL

GEAR and PINION ring, transaxle, matched set, Includes: Ref. 1 and 5

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

5

NSS

NOT SOLD SEPARAT

PINION bevel

1шт.

6

A153753

ROLLER BEARING,88.92mm OD x 23.02mm W

CUP bearing, rear, with snap ring, 3-1/2" OD

1шт.

7

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE bearing, rear, 1-5/8" ID

1шт.

8

A153751

GEAR

first, 47 external and 10 internal teeth

1шт.

9

A51961

GEAR

second, 38 external and 10 internal teeth

1шт.

10

A157304

GEAR

oil slinger, 38 external teeth

1шт.

11

A51960

GEAR

third, 28 external and 10 internal teeth

1шт.

12

A154649

GEAR

fourth, 29 external and 10 internal teeth

1шт.

13

A51959

SPACER

third and fourth gears, 1-5/8" x 2-5/16" x 2-3/16"

1шт.

14

A179800

SPACER

thrust, 0.248-0.25"

1шт.

14

A179799

SPACER

thrust, 0.245-0.243"

1шт.

14

A179798

SPACER

thrust, 0.240-0.238"

1шт.

14

A179797

SPACER

thrust, 0.235-0.233"

1шт.

14

A179796

SPACER

thrust, 0.230-0.228"

1шт.

14

A179795

SPACER

thrust, 0.225-0.223"

1шт.

14

A179794

SPACER

thrust, 0.220-0.218"

1шт.

14

A179793

SPACER

thrust, 0.215-0.213"

1шт.

14

A179792

SPACER

thrust, 0.210-0.208"

1шт.

14

A179791

SPACER

thrust, 0.205-0.203"

1шт.

14

A179790

SPACER

thrust, 0.200-0.198"

1шт.

14

A179789

SPACER

thrust, 0.195-0.193"

1шт.

14

A179788

SPACER

thrust, 0.190-0.188"

1шт.

14

A179787

SPACER

thrust, 0.185-0.183"

1шт.

14

A179786

SPACER

thrust, 0.182-0.178"

1шт.

14

A179785

SPACER

thrust, 0.175-0.173"

1шт.

14

A179784

SPACER

thrust, 0.170-0.168"

1шт.

14

A179783

SPACER

thrust, 0.165-0.163"

1шт.

16

A179719

ROLLER BEARING,76.1mm OD x 17.46mm W

CUP bearing

1шт.

17

A153749

ROLLER BEARING,1.3125" ID x 0.875"

CONE bearing, rear, 1-5/16" ID

1шт.

19

A156260

NUT

adjusting, countershaft

1шт.
