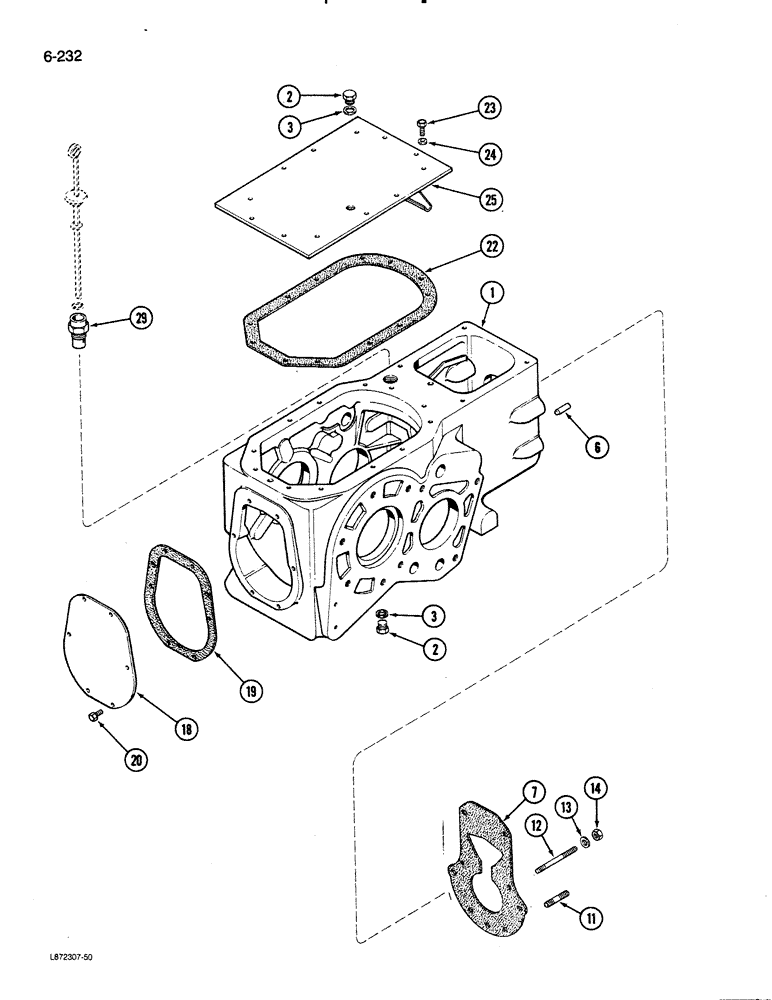

Запчасти Case 580K (06-232) - TRANSAXLE TRANSMISSION HOUSING, 4 WHEEL DRIVE (06) - POWER TRAIN

1

A182750

HOUSING

transmission

1шт.

2

A140222

PLUG

drain, transmission housing

2шт.

If P/N A187584 magnetic speed sensor is used, it goes in place of Ref. 2 and 3

1шт.

3

A58608

GASKET

drain plug

2шт.

If P/N A187584 magnetic speed sensor is used, it goes in place of Ref. 2 and 3

1шт.

6

A29540

PIN

dowel, locating

1шт.

7

A182720

GASKET

front cover to transmission housing

1шт.

11

A182720

GASKET

STUD front mounting, 2-1/2"

2шт.

12

A153248

STUD

cover, center, 4-13/16"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

hex, 3/8" NC

2шт.

18

A39105

COVER

transmission housing, rear

1шт.

19

G10447

GASKET

rear cover to transmission housing

1шт.

J I Case installed housing may not have a cover gasket. If rear housing cover is removed, install a gasket prior to reassembly.

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

22

A153777

GASKET

GASKET top cover to transmission housing

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

hex, 3/8" NC x 1", grade 8

12шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

cover bolt, hardened

12шт.

25

A182616

COVER ASSY

COVER housing, top rear

1шт.

29

A154850

TUBE

dipstick and oil filler

1шт.
