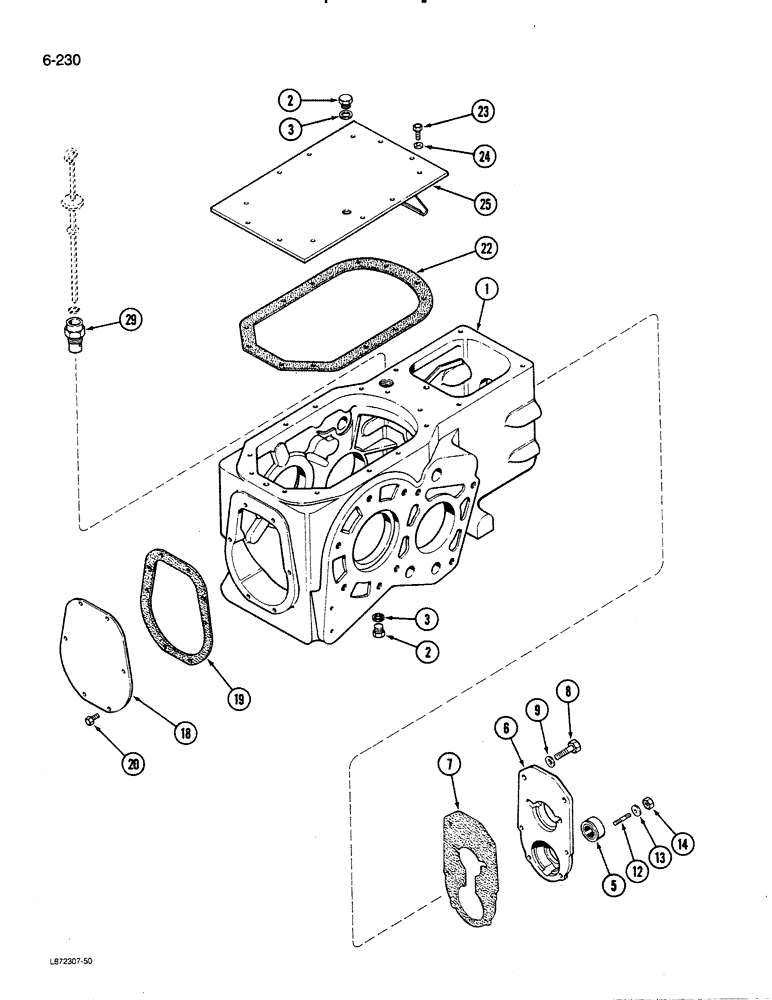

Запчасти Case 580K (06-230) - TRANSAXLE TRANSMISSION HOUSING, 2 WHEEL DRIVE (06) - POWER TRAIN

1

A182750

HOUSING

transmission

1шт.

2

A140222

PLUG

drain, transmission housing

2шт.

3

A58608

GASKET

drain plug

2шт.

5

A179056

OIL SEAL

oil

1шт.

6

A168851

COVER

transmission housing, front

1шт.

7

A182721

GASKET

front cover to transmission housing

1шт.

8

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

hex, 1/2" NC x 1"

2шт.

9

195-533

WASHER,1/2", SAE

flat, 1/2" (17/32" x 1-1/6" x 7/64")

2шт.

12

A29717

STUD

cover, center, 1-1/2"

2шт.

12

G10710

STUD

cover, bottom, 1-3/4"

2шт.

13

195-525

WASHER,3/8", SAE

flat, 13/32" x 13/16" x 1/16 "

4шт.

14

129-123

NUT,3/8"-24, G5

4шт.

18

A39105

COVER

transmission housing, rear

1шт.

19

G10447

GASKET

rear cover to transmission housing

1шт.

J I Case installed housing may not have a cover gasket. If rear housing cover is removed, install a gasket prior to reassembly.

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

22

A153777

GASKET

GASKET top cover to transmission housing

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

hex, 3/8" NC x 1", grade 8

12шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

cover bolt, hardened

12шт.

25

A182616

COVER ASSY

COVER housing, top rear

1шт.

29

A154850

TUBE

dipstick and oil filler

1шт.
