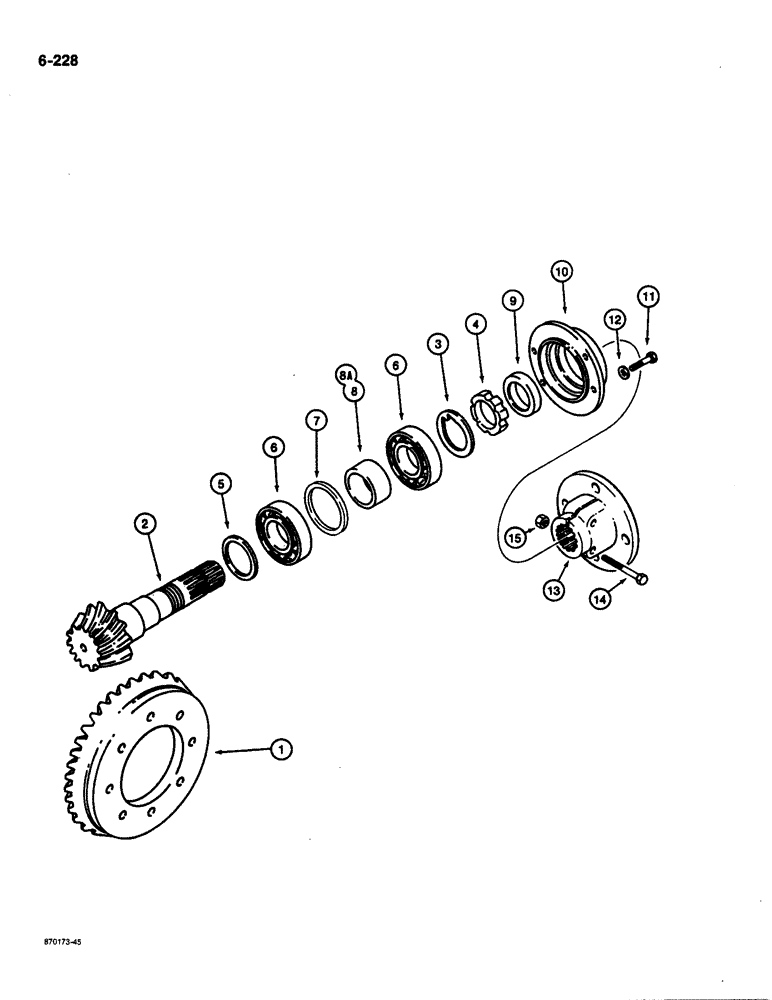

Запчасти Case 580K (06-228) - FRONT DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

D133190

AXLE

ASSEMBLY, Carraro 710-19 front drive, Carraro No. 120725, if used, see Figures 06-216 thru 06-228 for parts list, Includes: P/N N13506 and Ref. 1 thru 15

1шт.

D139509

AXLE

ASSEMBLY, Carraro 710-19P front drive, Carraro No. 123800, if used, see Figures 06-216 thru 06-228 for parts list, Includes: P/N N13506 and Ref. 1 thru 15

1шт.

N13506

BEVEL GEAR

SET gear, ring and pinion, Includes: Ref. 1 thru 4

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR pinion, differential

1шт.

3

K261065

LOCK WASHER

special

1шт.

4

K261852

NUT

RING nut, pinion gear

1шт.

5

K965280

SHIM,2.50mm Thk

1шт.

5

K965282

SHIM,2.60mm Thk

1шт.

5

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

1шт.

5

K965286

SHIM,2.85mm Thk

1шт.

5

K965288

SHIM,2.90mm Thk

1шт.

5

K965290

SPACER

SHIM, 3.00 mm thick

1шт.

5

K965292

SHIM,3.10mm Thk

1шт.

5

K965294

SHIM,3.20mm Thk

1шт.

5

K965296

SHIM,3.30mm Thk

1шт.

5

K965298

SHIM,3.40mm Thk

1шт.

6

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion gear

2шт.

7

N14405

SPACER

bearing, narrow

1шт.

8

K965412

BUSHING

SPACER bearing, wide, used in P/N D133190 axle

1шт.

8a

N14406

SPACER

bearing, wide, used in P/N D139509 axle

1шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil

1шт.

If Ref. 9, P/N K262143, is too small, use retainer P/N 128570A1 and O-ring P/N 238-5152. See Super K parts manual for reference.

1шт.

10

N14404

COVER

differential

1шт.

11

K395026

BOLT,Hex, M6 x 20, 8.8

special, cover mounting

4шт.

12

K261870

WASHER

special

4шт.

13

N13619

COVER

flange, drive shaft end

1шт.

14

K965415

BOLT,M10 x 1.25 x 60mm

BOLT hex head, 10 mm-1.25 x 60 mm, special

2шт.

15

K965414

NUT

hex, self-locking, 10 mm-1.25, special

2шт.

M20704

ADHESIVE

SEALANT, 3 oz. (89 ml) of sealant in a tube, differential cover to differential carrier, not shown

1шт.
