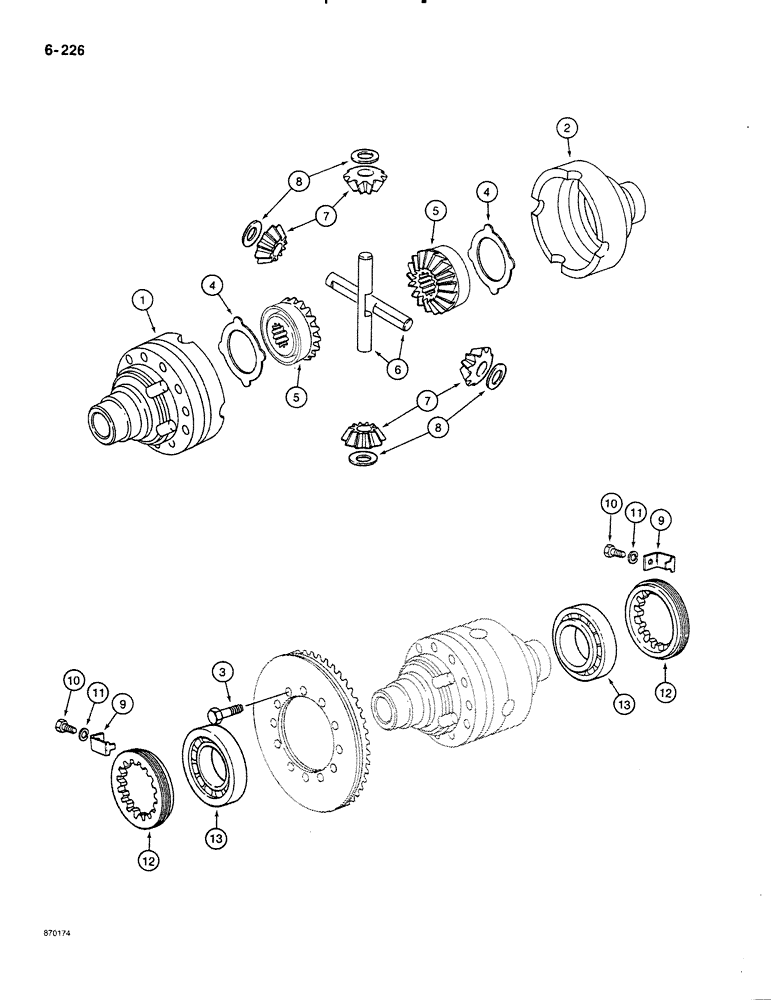

Запчасти Case 580K (06-226) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

D133190

AXLE

ASSEMBLY, Carraro 710-19 front drive, Carraro No. 120725, if used, see Figures 06-216 thru 06-228 for parts list, Includes: P/N N13508 and Ref. 1 thru 13

1шт.

D139509

AXLE

ASSEMBLY, Carraro 710-19P front drive, Carraro No. 123800, if used, see Figures 06-216 thru 06-228, Includes: P/N N13508 and Ref. 1 thru 13

1шт.

N13508

DIFFERENTIAL

CASE ASSEMBLY differential, Includes: Ref. 1 thru 3

1шт.

1

NSS

NOT SOLD SEPARAT

CASE differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

CASE differential, plain half

1шт.

3

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9, plated

12шт.

4

N13618

WASHER

thrust

2шт.

5

N14407

GEAR

side, differential

2шт.

6

N13507

PIN

SHAFT pinion gear

2шт.

7

N14408

SUN GEAR

GEAR pinion, differential

4шт.

8

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear

4шт.

9

K261869

LOCK

BRACKET lock

2шт.

10

K261871

SCREW

BOLT hex head, 6 mm-1 x 12 mm, special

2шт.

11

K261870

WASHER

lock, 6 mm, special

2шт.

12

K261868

RING

lock, threaded

2шт.

13

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.

M20704

ADHESIVE

SEALANT, 3 oz. (89 ml) of sealant in a tube, bolt to differential housing, not shown

1шт.
