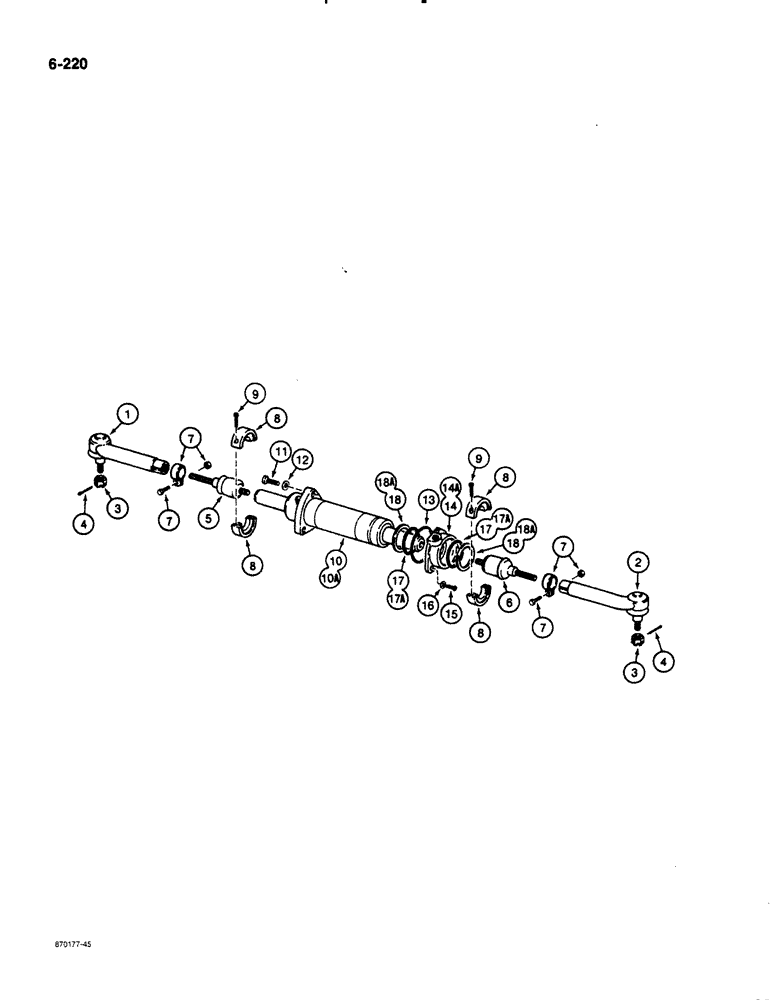

Запчасти Case 580K (06-220) - FRONT DRIVE AXLE, STEERING CYLINDER (06) - POWER TRAIN

D133190

AXLE

ASSEMBLY, Carraro 710-19 front drive, Carraro No. 120725, if used, see Figures 06-216 thru 06-228 for parts list, Includes: P/N N14402 and N14379 and Ref. 1 thru 18A

1шт.

D139509

AXLE

ASSEMBLY, Carraro 710-19P front drive, Carraro No. 123800, if used, see Figures 06-216 thru 06-228 for parts list, Includes: P/N N14402 and N14379 and Ref. 1 thru 18A

1шт.

1

N14402

BALL JOINT

JOINT ASSEMBLY ball, left-hand, Includes: Ref. 3 and 4

1шт.

2

N14379

BALL JOINT

JOINT ASSEMBLY ball, right-hand, Includes: Ref. 3 and 4

1шт.

3

N14380

JAM NUT

hex, slotted, ball joint

1шт.

4

632-656

COTTER PIN,M4 x 36

PIN cotter, 5/32" x 1-27/64", plated

1шт.

5

N14388

BALL JOINT

ROD tie, steering, adjuster, left-hand

1шт.

6

N14377

ARTICULATION

ROD tie, steering, adjuster, right-hand

1шт.

7

N14378

CLAMP

ball joint to tie rod, includes hardware

2шт.

8

NSS

NOT SOLD SEPARAT

CLAMP steering stop, two piece, P/N D133190 axle only, no longer used, not required

2шт.

9

NSS

NOT SOLD SEPARAT

SCREW steering stop clamp, P/N D133190 axle only, no longer used, not required

4шт.

10

N14416

CYLINDER steering, 3-9/16" (90 mm) OD, used in P/N D133190 axle only, no longer available, order P/N N14386 steering cylinder

1шт.

When replacing P/N N14416 steering cylinder or P/N N14415 cylinder flange in P/N D133190 axle assembly, you must order all of the following: P/N N14371 carrier assembly in Figure 06-216, P/N N14386 steering cylinder, P/N N14385 cylinder flange, (2) P/N G104780 flange O-rings, and (2) P/N N14403 backup rings, in this figure.

1шт.

10a

N14386

STEERING CYLINDER

CYLINDER steering, 3-1/32" (77 mm) OD, component parts not serviced separately, order P/N N14622 kit to service seals, see below, used in P/N D139509 axle only

1шт.

The rod for this cylinder is P/N D146308

1шт.

11

N14387

BOLT

special, steering cylinder

3шт.

12

K260268

LOCK WASHER,M16

WASHER special, steering cylinder

3шт.

13

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

flange, if used, P/N D133190 axle only

1шт.

14

N14415

FLANGE for 3-9/16" (90 mm) OD steering cylinder, P/N D133190 axle only, no longer available, order P/N N14385 cylinder flange

1шт.

When replacing P/N N14416 steering cylinder or P/N N14415 cylinder flange in P/N D133190 axle assembly, you must order all of the following: P/N N14371 carrier assembly in Figure 06-216, P/N N14386 steering cylinder, P/N N14385 cylinder flange, (2) P/N G104780 flange O-rings, and (2) P/N N14403 backup rings, in this figure.

1шт.

14a

N14385

FLANGE

for 3-1/32" (77 mm) OD steering cylinder, P/N D139509 axle only

1шт.

15

N14384

BOLT

special, flange

3шт.

16

K965360

LOCK WASHER,M8

WASHER special, flange

3шт.

17

G104038

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

flange, P/N D133190 axle only

2шт.

17a

G104780

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

flange, P/N D139509 axle only

2шт.

18

N14383

OIL SEAL

RING backup, flange O-ring, P/N D133190 axle only

2шт.

18a

N14403

O-RING,76.66mm ID x 81.02mm OD x 1.14mm Thk

backup, flange O-ring, P/N D139509 axle only

2шт.

M20704

ADHESIVE

SEALANT, 3 oz. (89 ml) of sealant in a tube, cylinder flange to cylinder, not shown

1шт.

N14622

PACKAGE, REPAIR

KIT seal, steering cylinder, for rod, gland, and piston, includes (4) rings, (3) seals, (2) wipers, and (2) gland packing, which are not serviced separately

1шт.
