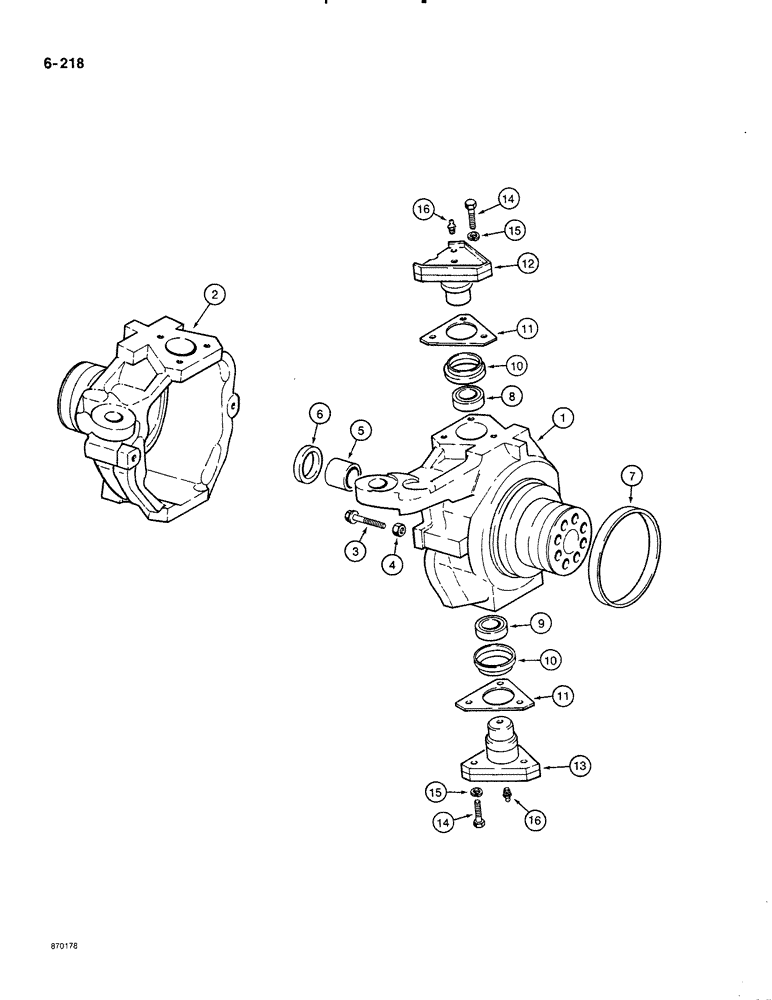

Запчасти Case 580K (06-218) - FRONT DRIVE AXLE, SWIVEL HOUSING (06) - POWER TRAIN

D133190

AXLE

ASSEMBLY, Carraro 710-19 front drive, Carraro No. 120725, if used, see Figures 06-216 thru 06-228 for parts list, Includes: Ref. 1 thru 16

1шт.

D139509

AXLE

ASSEMBLY, Carraro 710-19P front drive, Carraro No. 123800, if used, see Figures 06-216 thru 06-228 for parts list, Includes: Ref. 1 thru 16

1шт.

1

N14375

HOUSING

swivel, right-hand

1шт.

2

N14374

HOUSING

swivel, left-hand

1шт.

3

K395032

BOLT

steering stop, special

4шт.

Ref. 3 and 4, P/N K395032 bolt and P/N K965369 nut: This was a 12 mm bolt, now changed to P/N D142907 14 mm bolt and P/N D142908 nut. Also requires 14.5 mm bushing P/N D149805.

1шт.

4

K965369

JAM NUT

hex, 12 mm, special

4шт.

Ref. 3 and 4, P/N K395032 bolt and P/N K965369 nut: This was a 12 mm bolt, now changed to P/N D142907 14 mm bolt and P/N D142908 nut. Also requires 14.5 mm bushing P/N D149805.

1шт.

5

K395033

BUSHING

swivel housing

2шт.

6

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil, swivel housing

2шт.

7

K395138

WEAR RING

RING sealing, wear, swivel housing

2шт.

8

N14372

BUSHING

BEARING swivel cap, upper

2шт.

If swivel housing has a two piece upper bearing, you must order both P/N N14372 upper bearing and P/N N14376 upper king pin.

1шт.

9

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING swivel cap, lower, two piece bearing

2шт.

10

K395039

SEAL

bearing

4шт.

11

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

Swivel cap 0.10mm Thk

1шт.

11

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

Swivel cap 0.19mm Thk

1шт.

11

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

Swivel cap 0.35mm Thk

1шт.

12

N14376

PIN

PIN king, swivel housing cap, upper

2шт.

If swivel housing has a two piece upper bearing, you must order both P/N N14372 upper bearing and P/N N14376 upper king pin.

1шт.

13

N13504

PIVOT

PIN king, swivel housing cap, lower

2шт.

14

K965247

BOLT,M14 x 35mm

BOLT hex head, 14 mm-2 x 35 mm, special

12шт.

15

K965248

WASHER

lock, 14 mm, special

12шт.

16

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING grease, straight, swivel cap

4шт.

M20704

ADHESIVE

SEALANT, 3 oz. (89 ml) of sealant in a tube, wear ring to swivel housing, not shown

1шт.
