(06-216) - FRONT DRIVE AXLE, AXLE HOUSING

Запчасти Case 580K (06-216) - FRONT DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

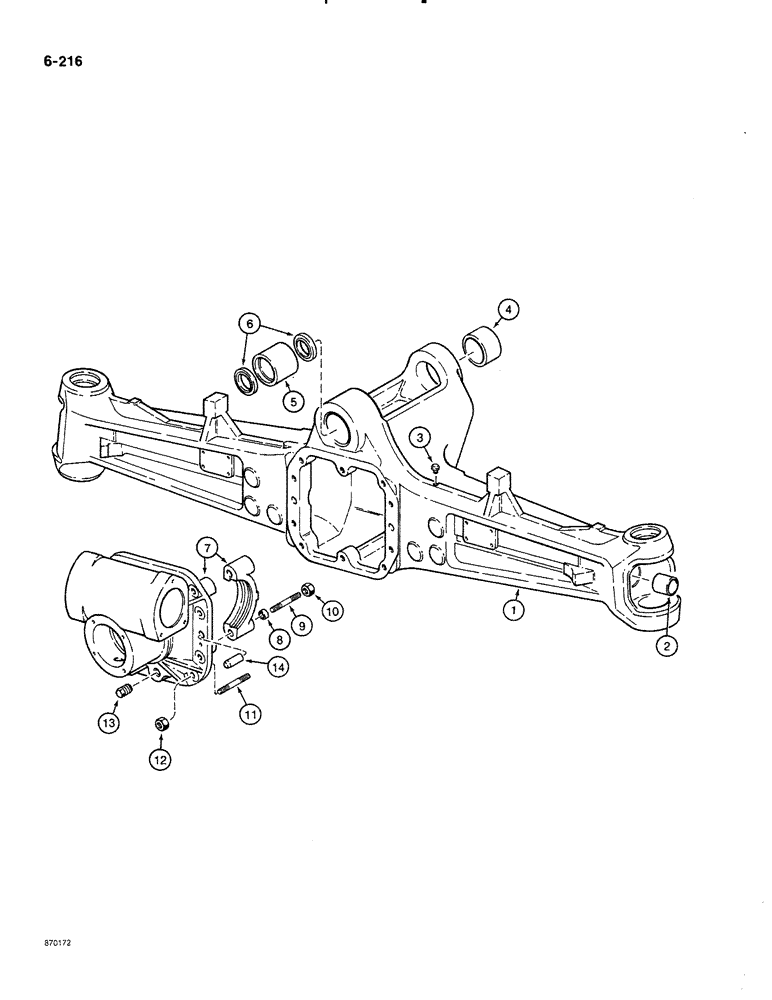

Схема запчастей Case 580K - (06-216) - FRONT DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN
7
10
2
8
11
14
6
12
4
9
3
13
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D133190

AXLE

ASSEMBLY, Carraro 710-19 front drive, Carraro No. 120725, if used, see Figures 06-216 thru 06-228 for parts list, Includes: Ref. 1 thru 14

1шт.

D139509

AXLE

ASSEMBLY, Carraro 710-19P front drive, Carraro No. 123800, if used, see Figures 06-216 thru 06-228 for parts list, Includes: Ref. 1 thru 14

1шт.

1

N14370

HOUSING

front axle

1шт.

2

K395019

BUSHING

housing

2шт.

The seal that is used in conjuction, shown in 860 turbo trencher axle, is seal P/N K395103 subs to P/N 1966164C1 cam.

1шт.

3

K965231

BREATHER

axle housing

1шт.

4

N14369

BUSHING,50.23mm ID x 66.68mm OD x 40mm L

front pivot

1шт.

5

N14368

BUSHING,50.14mm ID x 66.68mm OD x 75mm L

rear pivot

1шт.

6

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

rear bushing

2шт.

N14414

CARRIER ASSEMBLY differential, for 3-9/16" (90 mm) OD steering cylinder, used in P/N D133190 axle assembly, no longer available, order P/N N14371 carrier assembly, Includes: Ref. 7 thru 10

1шт.

When replacing P/N N14414 carrier assembly in P/N D133190 axle assembly, you must order all of the following: P/N N14371 carrier assembly in this figure, P/N N14386 steering cylinder, P/N N14385 cylinder flange, (2) P/N G104780 flange O-rings and (2) P/N N14403 backup rings in Figure 06-220.

1шт.

N14371

AXLE CARRIER

CARRIER ASSEMBLY differential, for 3-1/32" (77 mm) OD steering cylinder, used in P/N D139509 axle assembly, Includes: Ref. 7 thru 10

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER differential

1шт.

8

K965259

RING

BUSHING centering, carrier

4шт.

9

K261836

STUD

carrier

4шт.

10

K965250

NUT

hex, self-locking, 14 mm-1.5, special

4шт.

11

K261839

STUD

, Serial Range: carrier-housing

10шт.

12

905834R1

THIN NUT,M12 x 1.25, Thin

Hex, special M12 x 1.25, Thin

10шт.

13

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

14

K965252

PIN

dowell, Serial Range: housing-carrier

2шт.

M20704

ADHESIVE

SEALANT, 3 oz. (89 ml) of sealant in a tube, differential carrier to axle housing, not shown

1шт.
