(06-214) - DRIVE SHAFT FOR FRONT DRIVE AXLE

Запчасти Case 580K (06-214) - DRIVE SHAFT FOR FRONT DRIVE AXLE (06) - POWER TRAIN

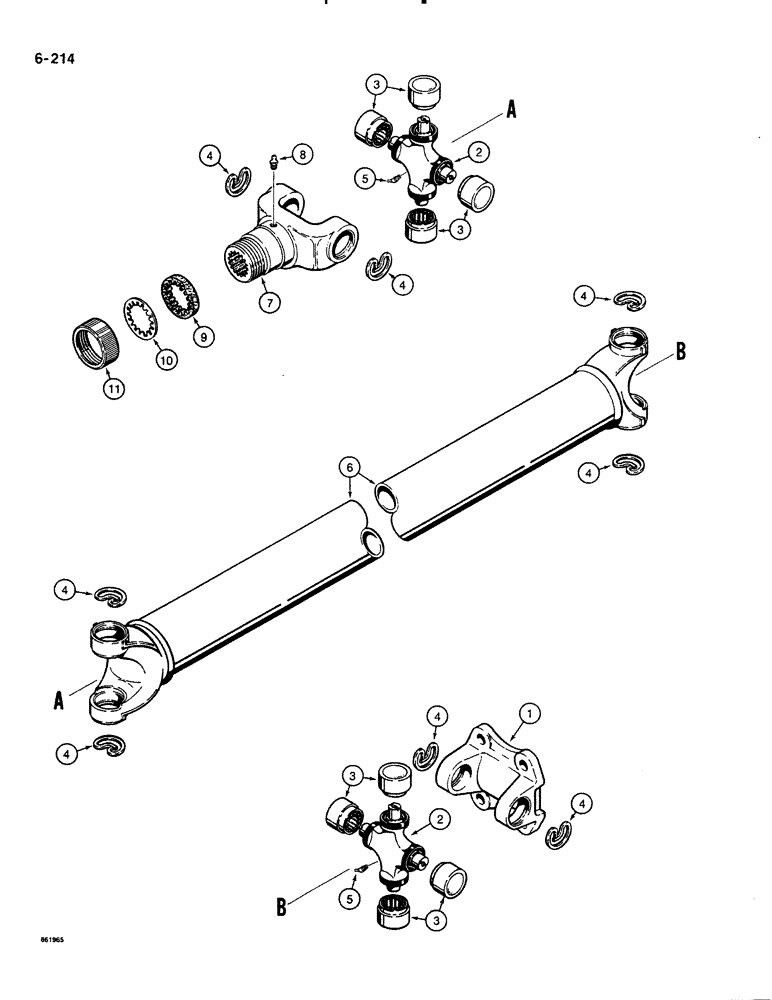

Схема запчастей Case 580K - (06-214) - DRIVE SHAFT FOR FRONT DRIVE AXLE (06) - POWER TRAIN
3
4
9
4
4
4
5
2
10
8
5
4
11
3
6
4
4
3
7
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D128561

DRIVE SHAFT

SHAFT ASSEMBLY drive, front drive axle, Includes: Ref. 1 thru 11

1шт.

1

S80726

YOKE

BRACKET flange

1шт.

R2713

BEARING ASSY

KIT universal joint, Includes: Ref. 2 thru 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4"-28 NF taper

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT drive, front drive axle

1шт.

7

N9926

END

YOKE drive shaft

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4"-28 NF taper

1шт.

N7513

SEAL

KIT dust seal and cap, Includes: Ref. 9 thru 11

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER cork

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER seal, steel

1шт.

11

NSS

NOT SOLD SEPARAT

CAP dust seal retaining

1шт.
