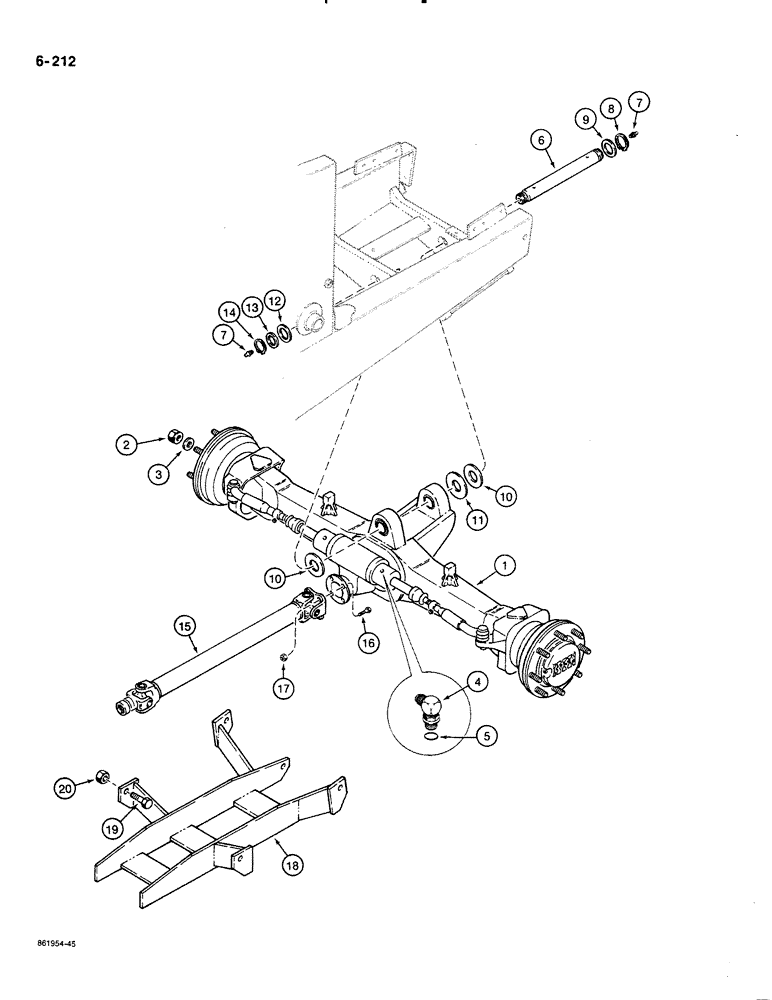

Запчасти Case 580K (06-212) - FRONT DRIVE AXLE MOUNTING AND DRIVE SHAFT (06) - POWER TRAIN

1

REF

INSTRUCTION

AXLE ASSEMBLY front drive, see Figures 06-216 thru 06-228 for parts list

1шт.

2

K395089

WHEEL NUT

hex, special, wheel retaining, front

16шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened

16шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Includes: Ref. 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

6

D127445

PIVOT PIN,50mm OD x 444mm L

SHAFT axle pivot

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

8

800-50050

SNAP RING,M50, Ext, Hvy

RING snap, shaft retaining, front

1шт.

9

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2" bolt size, 2-1/16" ID x 3" OD x 1/8" thick

1шт.

10

D37449

SHIM,.0747" Thk

Washer, flat (2-1/32" ID x 4" OD), Special .0747" Thk

1шт.

11

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

thrust, 2-1/16" (52.3 mm) ID x 4-1/2" (114 mm) OD x 3/16" (4.78 mm) thick

1шт.

12

S49415

WASHER

special

1шт.

13

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-3/4" bolt size, 1-13/16" ID x 2-1/2" OD x 1/8" thick

1шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, , pivot shaft, rear #175, Ext

1шт.

15

D128561

DRIVE SHAFT

SHAFT ASSEMBLY drive, front drive axle, see Figure 06-214

1шт.

16

28-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

hex head, 7/16"-20 NF x 1-1/2", grade 8

4шт.

17

232-4617

LOCK NUT,7/16"-20, GC

NUT hex, self-locking, 7/16"-20 NF

4шт.

18

D137890

GUARD ASSY.

GUARD drive shaft

1шт.

19

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

20

131-20

LOCK NUT,1"-8, GB

NUT hex, self-locking, 1"-8 NC

4шт.
