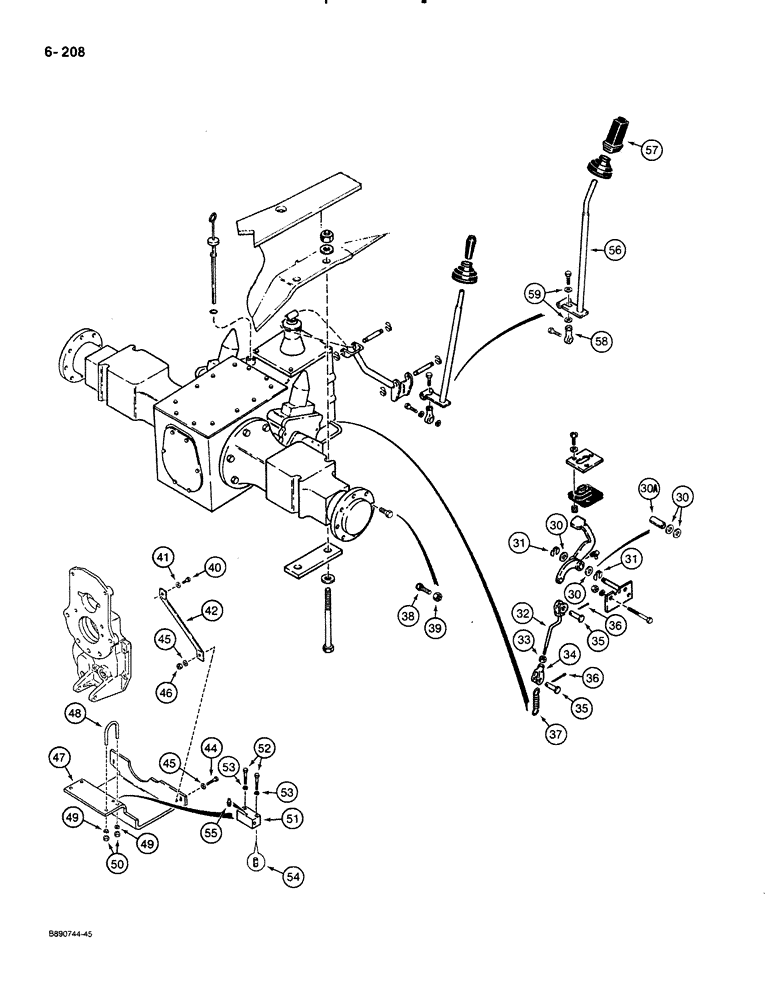

Запчасти Case 580K (06-208) - TRANSAXLE AND DIFFERENTIAL LOCK (06) - POWER TRAIN

30

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

2-4шт.

30a

D139528

SPACER

pivot shaft, not used on four wheel drive models

1шт.

31

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RETAINER pedal to pivot shaft bracket

2шт.

32

D134151

ROD

differential lock

1шт.

33

129-123

NUT,3/8"-24, G5

1шт.

34

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

1шт.

35

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

2шт.

36

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

37

A59470

SPRING

return, differential lock pedal

1шт.

38

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT special, if used

16шт.

39

F62206

NUT

hex, tapered, used only with Ref. 38 bolt

16шт.

40

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

41

95-10

WASHER,5/8"

flat, 5/8"

2шт.

D102985

GUARD

KIT guard, four wheel drive transfer gearbox control linkage, includes installation instructions, Includes: Ref. 42 thru 55

1шт.

42

D139940

STRAP

SUPPORT guard

2шт.

43

A168517

STUD

5/8"-11 NC x 2-7/8", not shown, not required on 580K models

2шт.

44

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

45

95-10

WASHER,5/8"

flat, 5/8"

4шт.

46

129-107

NUT,5/8"-11, G5

2шт.

47

D139942

GUARD

transfer gearbox

1шт.

48

S63417

U-BOLT

1/2"

2шт.

49

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

50

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

51

D139941

PIVOT

BLOCK pivot

1шт.

Required only if gearbox cover linkage is damaged, see installation instructions.

1шт.

52

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

Required only if gearbox cover linkage is damaged, see installation instructions.

1шт.

53

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Required only if gearbox cover linkage is damaged, see installation instructions.

1шт.

54

S118998

NUT

special, 3/8"-16 NC

2шт.

Required only if gearbox cover linkage is damaged, see installation instructions.

1шт.

55

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

Required only if gearbox cover linkage is damaged, see installation instructions.

1шт.

56

D140218

LEVER

control, shift, transaxle

1шт.

57

D140148

HANDLE

control lever

1шт.

58

D137676

SPHERICAL BEARING,12.75mm ID x 33.34mm OD x 22.22mm

JOINT ball, female

1шт.

59

196-16

WASHER,.521" x 1" x .179", HDN

flat, 1/2", hardened

2шт.
