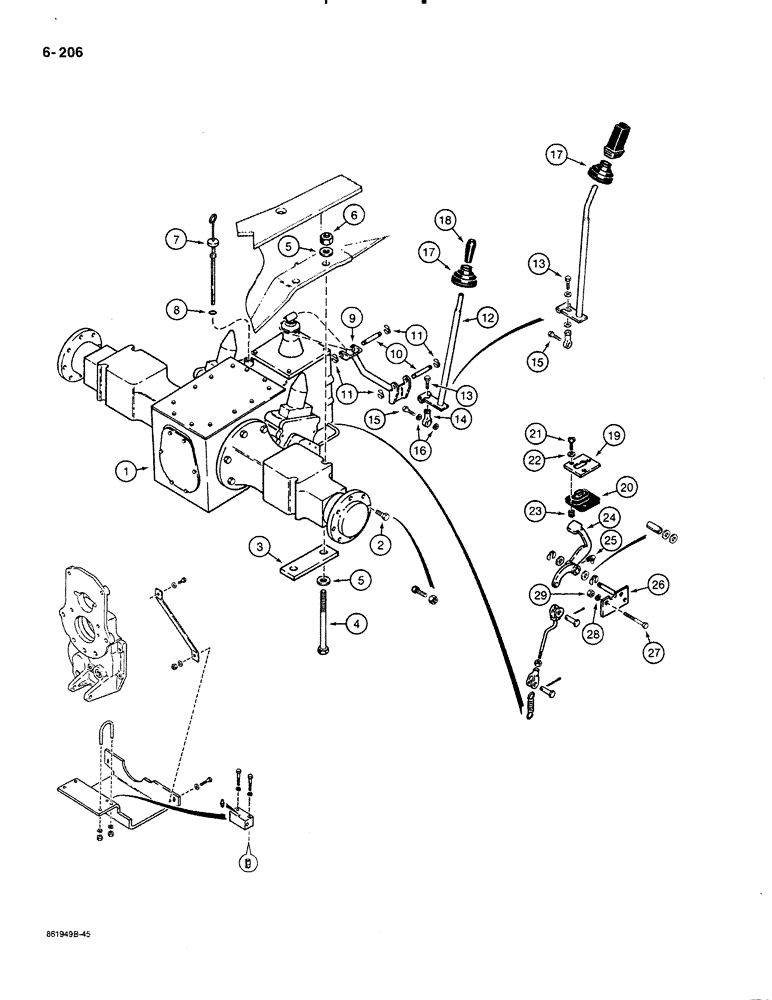

Запчасти Case 580K (06-206) - TRANSAXLE AND DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A179999

AXLE

TRANSAXLE ASSEMBLY two wheel drive, parts list pages 6-231 thru 7-259

1шт.

4 wheel drive is P/N AR180000 - not shown or listed

1шт.

1

AR179999

REMAN-TRANSAXLE, 2WD

REMAN-TRANSAXLE, 2WD Remanufactured Axle; For N.A. only

1шт.

1

AC179999

CORE-TRANSAXLE, 2WD

Return number - For N.A. only

1шт.

2

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

WHEEL BOLT, Retaining, grade 5, Rear, Used with P/N A139085 rear wheels, if used, also see Ref. 38 and 39 in Figure 06-208

16шт.

2

D140705

BOLT

BOLT grade 8, wheel retaining, rear, used with P/N D140062 rear wheels, if used

16шт.

3

D127596

PLATE

PLATE spacer

2шт.

4

26-16176

BOLT,Hex, 1" - 8 x 11", Gr 8

BOLT hex head, 1"-8 NC x 11", grade 8

4шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

WASHER flat, 1", hardened, special

8шт.

6

129-185

NUT,1"-8, G8

NUT hex, 1"-8 NC, grade 8

4шт.

7

D138048

DIPSTICK

DIPSTICK transaxle, Includes: Ref. 8

1шт.

8

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING dipstick

1шт.

9

D133966

TUBE

ROD shift bracket

1шт.

10

D133974

PIN,12.7mm OD x 76mm L

PIN rod attaching

2шт.

11

D143415

SNAP RING,0.50” ID, Klipring

RETAINER pin

4шт.

12

D136575

LEVER

LEVER control, shift, transaxle, no longer available, order P/N D140218 lever and P/N 496-31053 washer, Ref. 56 and 59 in Figure 06-208

1шт.

13

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

BOLT hex head, 1/2"-20 NF x 1-1/2"

1шт.

14

L115782

BALL JOINT

JOINT ball, female

1шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, , Attaches to chassis Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

2шт.

17

D123562

BOOT

BOOT shift lever

1шт.

18

D91439

TUBE

KNOB shift lever, if used

1шт.

19

D129575

PEDAL LOCK PLATE

PLATE differential lock boot

1шт.

20

D129670

BOOT

BOOT differential lock

1шт.

21

182-553

SCREW,Cross Pan Hd, #10-32 x 5/8"

SCREW machine, pan Phillips head, No. 10-32 NF x 5/8", plated

3шт.

22

195-513

WASHER,#10

WASHER flat, No. 10, plated

3шт.

23

D123827

NUT

RETAINER threaded insert

3шт.

24

D141474

PEDAL

PEDAL differential lock

1шт.

25

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 90 degree, 1/4"-28 NF taper

1шт.

26

D134165

PLATE

BRACKET pivot shaft, pedal, may appear with or without center groove on shaft, for sertvice order P/N D103222 kit

1шт.

27

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT, Hex, 3/8"-16 x 4", G5

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

D103222

KIT

KIT service, differential lock pivot shaft, Includes: P/N D134165 bracket, Ref. 26 above and P/N D139528 spacer and (2) P/N A30881 washers, Ref. 30 and 30A in Figure 06-208

1шт.
